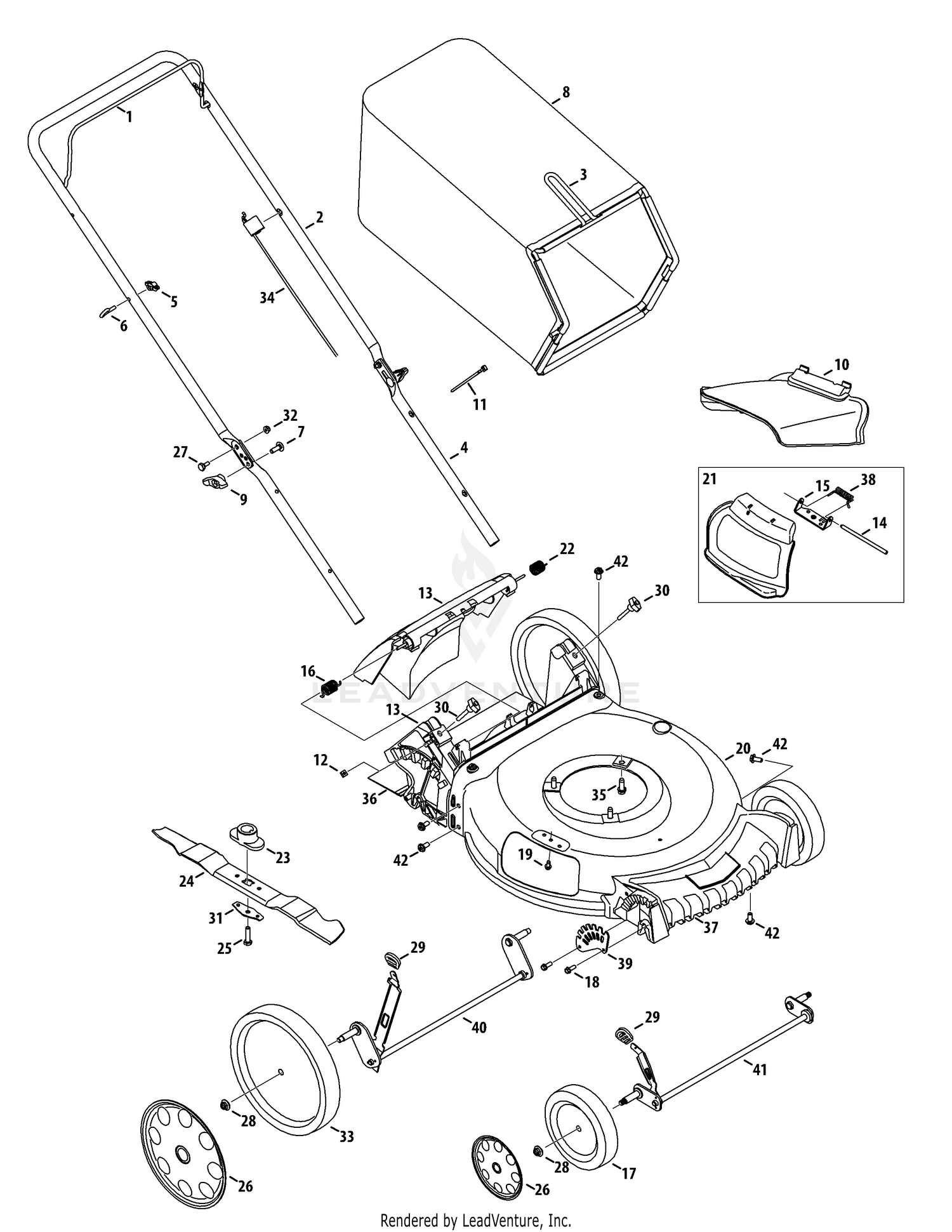

| Ref | Part Number | Description |
|---|
| 1 |
747-05214D |
Blade Control Price: $5.53 |
| 2 |
749-05084B-0637 |
UPPER HANDLE (POWDER BLACK) This part replaces 749-04681-0637. Price: $29.46 |
| 3 |
647-04271-0637 |
Grass Catcher Frame Price: $36.15 |
| 4 |
749-07298-0637 |
LOWER HANDLE (POWDER BLACK) This part replaces 749-04608A-0637. Price: $8.76 |
| 5 |
720-0279 |
Wing Nut Price: $3.93 |
| 6 |
710-1205 |
Rope Guide Price: $3.53 |
| 7 |
710-04998 |
Carriage Screw ,5/16-18 Price: $4.89 |
| 9 |
720-04124 |
Wing Knob Price: $4.37 |
| 10 |
731-07131 |
Side Chute Price: $13.83 |
| 11 |
725-0157 |
Cable Tie Price: $3.46 |
| 12 |
712-04222 |
Nut, Sq., 1/4-20 Price: $4.77 |
| 13 |
631-08159 |
REAR DOOR & BAFFLE ASSEMBLY This part replaces 631-04371A. Price: $48.98 |
| 14 |
747-0710A |
Hinge Pin Price: $3.86 |
| 15 |
787-01779 |
Chute Deflector Bracket Price: $4.13 |
| 16 |
732-05061B |
TORSION SPRING (RH) This part replaces 732-05061A. Price: $4.64 |
| 17 |
634-04607 |
Front Wheel Price: $22.79 |
| 18 |
710-0895 |
Screw, 1/4-15 x .750 Price: $5.82 |
| 19 |
710-05073 |
Screw, 1/4-20 x .500 Price: $3.52 |
| 22 |
732-05062A |
Torsion Spring - LH Price: $4.64 |
| 23 |
748-04096 |
Blade Adapter Price: $20.09 |
| 24 |
942-0741A |
Mulching Blade Price: $27.55 |
| 25 |
710-1044 |
Screw , 3/8-24 x 1.50 Price: $3.48 |
| 26 |
731-07197 |
HUBCAP Not Available Price: |
| 26 |
731-07199 |
Hub Cap - Rear Price: $8.85 |
| 27 |
738-04419A |
Sldr. Screw, .375 x .126 x 1/4-20 Price: $3.61 |
| 28 |
712-04217 |
Flange Lock Nut, 3/8-16 Price: $3.75 |
| 29 |
720-04131A |
Adjustment Lever Knob Price: $5.34 |
| 30 |
720-05066A |
WING KNOB 1/4-20 This part replaces 720-05066. Price: $3.93 |
| 31 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 32 |
712-04064 |
Nut, Flange Lock, 1/4-20 Price: $3.64 |
| 33 |
634-05063 |
Rear Wheel Price: $37.85 |
| 34 |
946-04661A |
Control Cable Price: $11.88 |
| 35 |
710-04683C |
SCREW 3/8-16 x 1 This part replaces 710-04683A. Price: $5.67 |
| 36 |
731-07203 |
Trail shield Price: $9.41 |
| 37 |
731-11699 |
FRONT AXLE COVER This part replaces 731-07195A. Price: $29.22 |
| 38 |
732-1014C |
Torsion Spring Price: $7.40 |
| 39 |
787-01818A-0637 |
Front Height Adjuster Plate Price: $8.82 |
| 40 |
611-04144B |
REAR AXLE This part replaces 911-04144B. Price: $32.33 |
