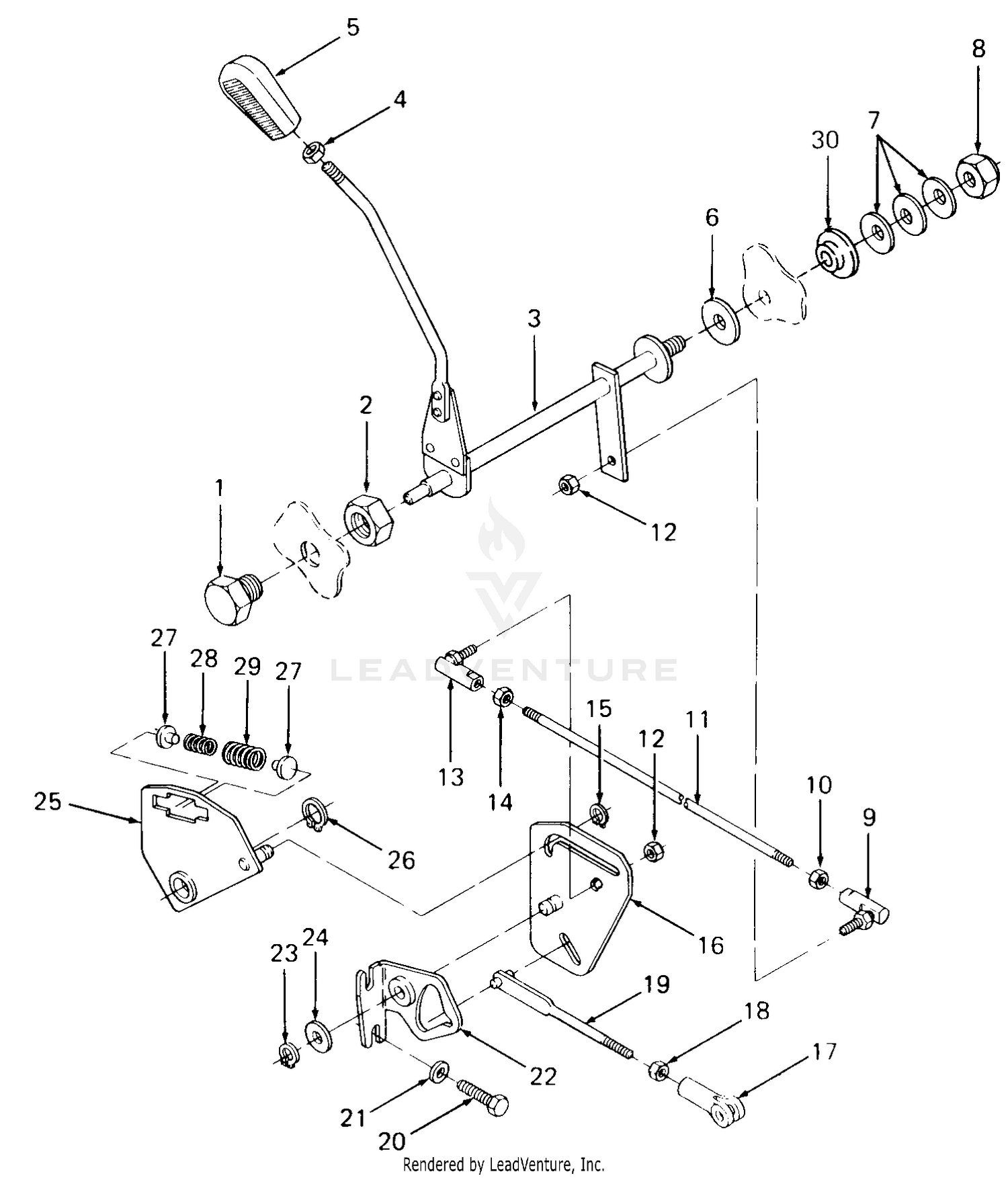

| Ref | Part Number | Description |
|---|
| 1 |
32144-26 |
SCREW-FLOW, TAPTITE Price: $5.75 |
| 1 |
710-3033 |
BOLT Not Available Price: |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
712-3026 |
Nut, Hex Jam, 3/4-16 GR5 Price: $4.29 |
| 3 |
703-1838 |
CROSS SHAFT ASSEMBLY Not Available Price: |
| 3 |
75-2810 |
BRACKET-COLUMN, STEERING Price: $11.01 |
| 4 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 4 |
75-0560 |
STEERING WHEEL ASM Price: $204.13 |
| 5 |
68-5370 |
DECAL Price: $6.21 |
| 5 |
731-3108 |
KNOB-SPEED Not Available Price: |
| 6 |
32144-21 |
SCREW Price: $0.20 |
| 6 |
723-3055 |
FRICTION WASHER Not Available Price: |
| 7 |
68-5140 |
CAP-WHEEL, STEERING Price: $15.13 |
| 7 |
936-3022 |
BELL WASHER Not Available This part replaces 736-3022. Price: |
| 8 |
3220-6 |
NUT-JAM Price: $1.25 |
| 8 |
712-3053 |
L-NUT 1/2-20 Not Available Price: |
| 9 |
233-17 |
KNOB Price: $10.58 |
| 9 |
923-3011 |
JOINT-BALL-5/16-24 (R.H.) This part replaces 723-3011. Price: $32.80 |
| 10 |
712-3025 |
Nut, Hex Jam, 5/16-24 Price: $6.24 |
| 10 |
93-3139 |
PANEL - TOWER Price: $27.69 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
747-3018 |
CONNECTING ROD Not Available Price: |
| 12 |
712-0237 |
Nut, Hex Center Lock, 5/16-24 This part replaces 712-0305. Price: $4.37 |
| 12 |
95-1821 |
SPRING-COMPRESSION Price: $6.71 |
| 13 |
75-1490 |
ROD-BRAKE, PARKING Price: $50.23 |
| 13 |
923-3012 |
Ball Joint 5/16-24 Thd. This part replaces 723-3012. Price: $37.06 |
| 14 |
237-22 |
O-RING Price: $2.43 |
| 14 |
912-3045 |
Hex Jam Nut 5/16 Thd. L.H. Not Available This part replaces 712-3045. Price: |
| 15 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 15 |
716-3000 |
RETAINING RING Not Available Price: |
| 16 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 16 |
703-0198A |
CAM ASSEMBLY Not Available Price: |
| 17 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 17 |
719-3013 |
Clevis Adjustment Price: $24.95 |
| 18 |
75-6230 |
HOSE Price: $133.10 |
| 18 |
912-3001 |
Nut, Jam, 3/8-24 This part replaces 712-3001. Price: $5.94 |
| 19 |
703-0200 |
CONTROL ROD ASSEMBLY Not Available Price: |
| 19 |
75-6240 |
HOSE Price: $137.49 |
| 20 |
63-7900-03 |
RACK This part replaces 63-7900. Price: $144.55 |
| 20 |
710-0520 |
Screw, Hex Cap, 3/8-16 X 1.5 Lg GR5 Price: $3.93 |
| 21 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 21 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 22 |
703-0196 |
BRACKET-CAM PIVOT Not Available Price: |
| 23 |
716-0865 |
Ring, Snap, .500 Price: $3.86 |
| 23 |
75-5940 |
HOSE Price: $94.45 |
| 24 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 24 |
75-6230 |
HOSE This part replaces 75-6220. Price: $133.10 |
| 25 |
75-6250 |
HOSE Price: $175.77 |
| 25 |
903-0194 |
DAMPER PLATE ASSEMBLY Not Available This part replaces 703-0194. Price: |
| 26 |
75-0600 |
UNIT-STEERING, POWER Price: $1,809.64 |
| 26 |
916-0115 |
SNAP RING FOR .625 DIA SHAFT Not Available This part replaces 716-0115. Price: |
| 27 |
21-9260 |
COVER-DUST Price: $8.19 |
| 27 |
711-3033 |
Pin, Spring Guide Price: $13.56 |
| 28 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 28 |
932-3012 |
COMPRESSION SPRING This part replaces 732-3012. Price: $6.10 |
| 29 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 29 |
932-3013 |
COMPRESSION SPRING This part replaces 732-3013. Price: $6.26 |
| 30 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 33 |
218-535 |
NUT-HEX Price: $0.34 |
| 34 |
218-536 |
WASHER-LOCK Price: $1.09 |
| 35 |
93-7480 |
LED-MINIATURE Price: $78.50 |
| 36 |
218-533 |
LENS Price: $17.62 |
