| Ref | Part Number | Description |
|---|
| 1 |
110-8183-01 |
RH PLOW PLATE ASM Price: $303.80 |
| 1 |
31994 |
SHAFT & LEV Price: Call Us |

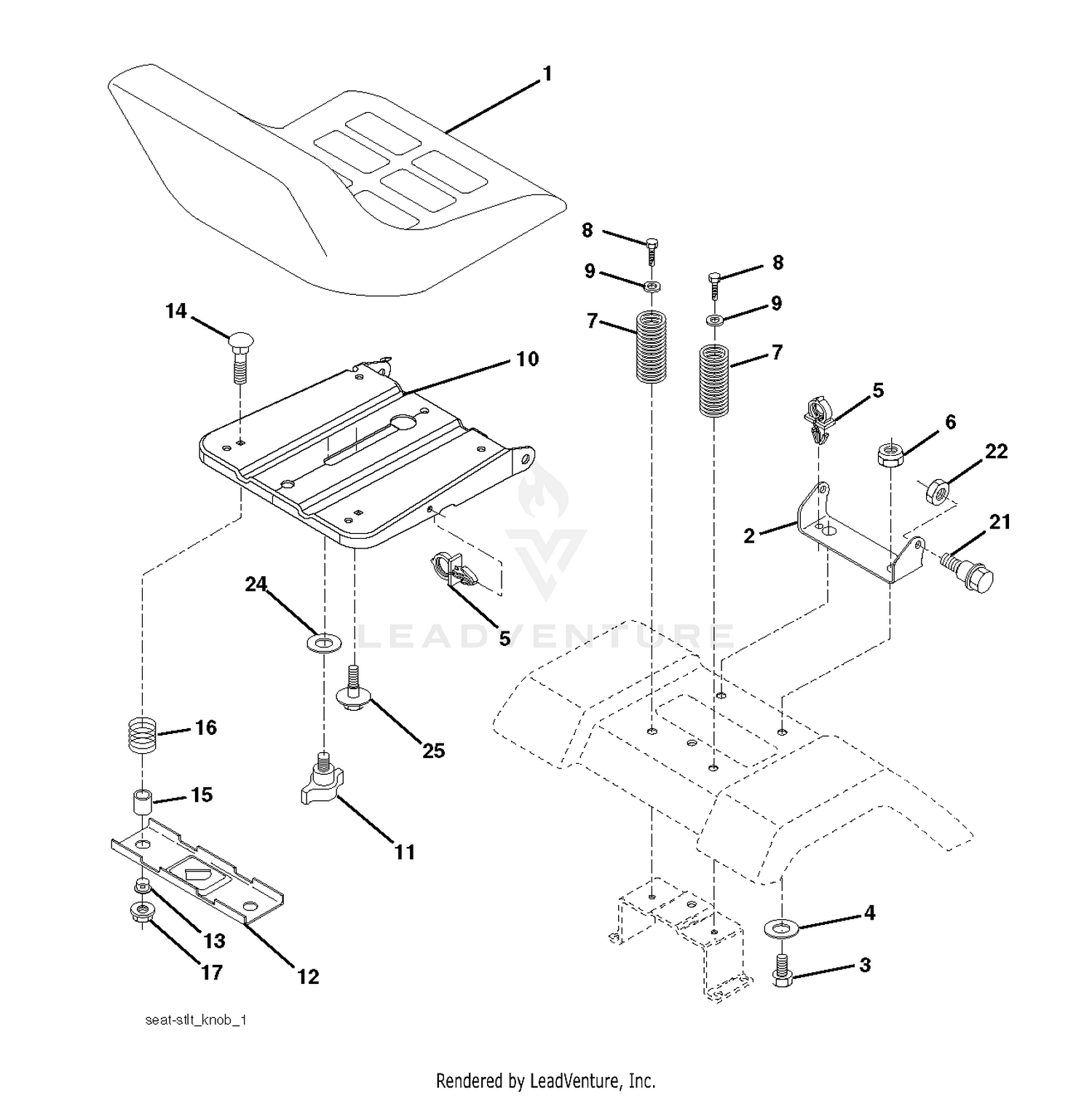

| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG Price: $149.99 |
| 2 |
325-8 |
SCREW-HH Price: $3.52 |
| 2 |
532140551 |
SEAT PIVOT BRKT Price: $3.99 |
| 2 |
650506 |
SCREW This part replaces 630606. Price: $0.87 |
| 3 |
31995 |
SHUTTER Price: Call Us |
| 3 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $2.99 |
| 4 |
110-8186-01 |
LH PLOW PLATE ASM Price: $262.85 |
| 4 |
631499 |
SHAFT & LEV This part replaces 31996. Price: Call Us |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
27113 |
SPRING Price: $2.62 |
| 5 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
108-5449-01 |
BRACKET ASM Price: $101.60 |
| 6 |
650399 |
SCREW This part replaces 630605. Price: $1.20 |
| 6 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 7 |
27112 |
IDLE SCREW Price: $1.26 |
| 7 |
325-7 |
SCREW-HH Price: $1.53 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 8 |
27114 |
SPRING Price: $2.62 |
| 8 |
323-8 |
SCREW-HH Price: $1.20 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 9 |
31503 |
SPRING Price: $1.23 |
| 9 |
323-10 |
SCREW-HH Price: $0.89 |
| 9 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 10 |
30927 |
SHUTTER Price: Call Us |
| 10 |
32151-103 |
RING-RETAINING, EXT Price: $2.09 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $14.99 |
| 11 |
108-2282 |
PIN-CLEVIS Price: $27.25 |
| 11 |
27109 |
GASKET Price: $1.18 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
110-8187-01 |
HITCH FRAME ASM Price: $436.11 |
| 12 |
27108 |
GASKET Price: Call Us |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $4.99 |
| 13 |
32256A |
REPAIR KIT This part replaces 32411. Price: $45.70 |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 14 |
27105 |
FLOAT Price: $20.00 |
| 14 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $3.99 |
| 15 |
108-5472 |
TUBE ASM Price: $75.40 |
| 15 |
27106 |
FLOAT SHAFT Price: $2.04 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
27136A |
DRAIN ASSY Price: $5.96 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
29170 |
FLOAT BOWL This part replaces 630596. Price: Call Us |
| 17 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 18 |
33-3090 |
BUSHING Price: $7.70 |
| 19 |
110-8180 |
PUSH ARM ASM Price: $880.98 |
| 20 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 20 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 21 |
138-6484 |
PIN This part replaces 108-6885. Price: $23.45 |
| 21 |
28945 |
POWER SCREW Price: $18.86 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $1.99 |
| 22 |
108-5473-01 |
ADAPTER-FRAME Price: $581.58 |
| 22 |
630786 |
SPRING Price: $1.25 |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 23 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 23 |
32254 |
NOZZLE Price: Call Us |
| 24 |
27544 |
O RING Price: $1.26 |
| 25 |
27554 |
GASKET Price: $1.05 |
| 25 |
532127018 |
BOLT,SHOULD Price: $3.99 |
| 26 |
104-9216 |
WASHER-HARDENED Price: $5.60 |
| 26 |
32076 |
SPRING Price: Call Us |
| 27 |
32096 |
RET SPRING Price: $2.62 |
| 27 |
327-4 |
SCREW-HH Price: $2.20 |
