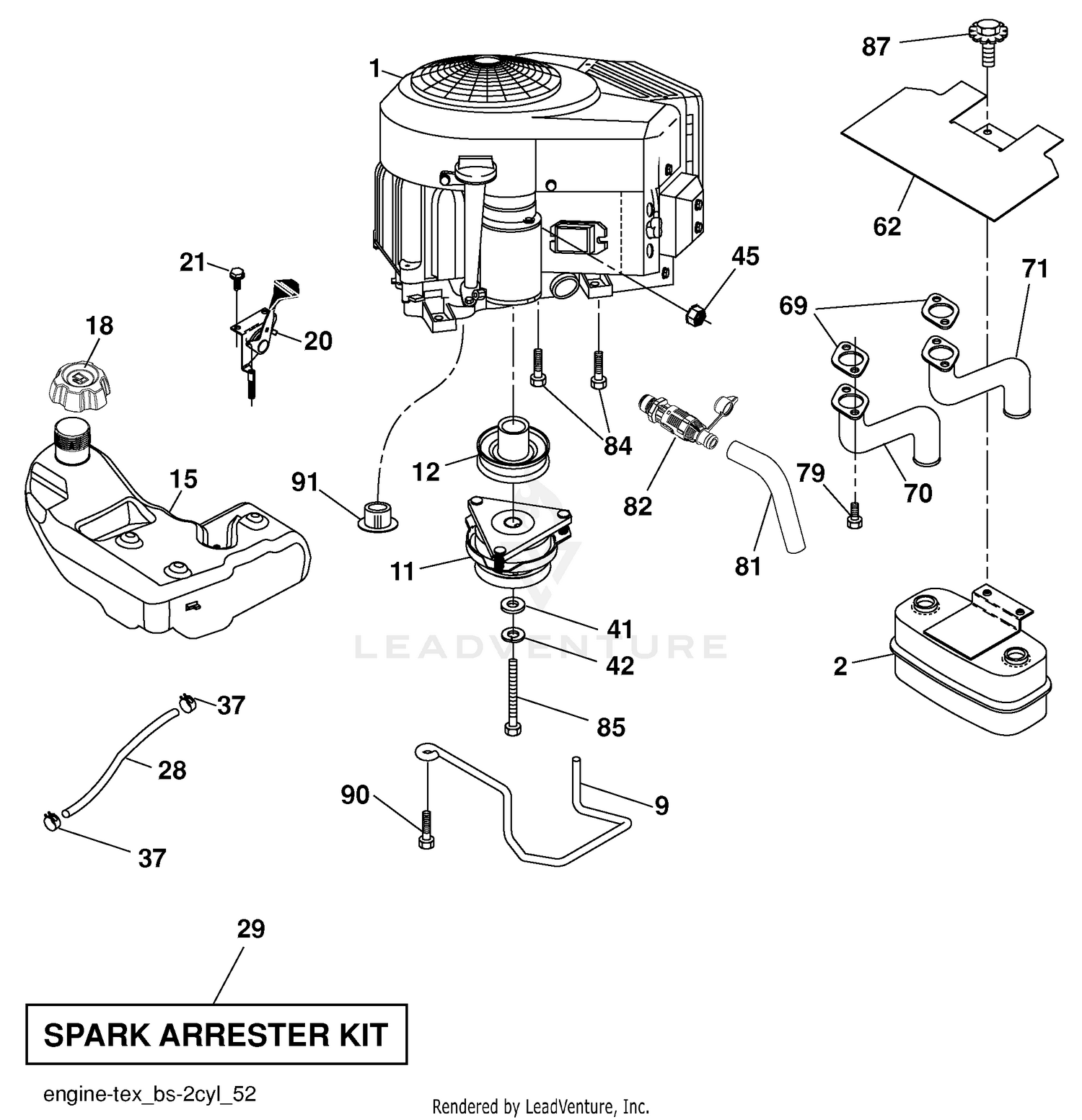

| Ref | Part Number | Description |
|---|
| 1 |
67-3160 |
ROCKER ARM Price: $85.24 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
67-3230 |
DISCONTINUED Price: Call Us |
| 3 |
67-3040 |
PLATE Price: $13.46 |
| 4 |
67-3210 |
ADJUSTING SCREW Price: $10.58 |
| 5 |
67-3150 |
PUSH ROD Price: $16.61 |
| 6 |
67-3120 |
TAPPET Price: $39.70 |
| 7 |
67-2910 |
GEAR Price: $205.68 |
| 8 |
75-5010 |
BRG SET STD - CONN ROD This part replaces 67-2880. Price: $93.75 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
70-8860 |
CONNECTION ROD ASM Price: $679.84 |
| 10 |
70-8830 |
PISTON & PIN (STD) Price: $328.84 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 11 |
70-8800 |
PISTON RING SET (STD) Price: $241.71 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
67-2860 |
BOLT Price: $10.69 |
| 13 |
67-2970 |
FLYWHEEL ASSY Price: $1,494.72 |
| 14 |
67-2990 |
DISCONTINUED Price: Call Us |
| 15 |
532400021 |
TANK.FUEL.SIDE-FILL.3.NON-EPA Price: $99.99 |
| 15 |
67-2980 |
RING GEAR Price: $393.68 |
| 16 |
92-0845 |
CRANKSHAFT This part replaces 67-2920. Price: $3,048.45 |
| 17 |
42-9590 |
CONN ROD NUT Price: $10.19 |
| 18 |
56-0480 |
WOODRUFF KEY Price: $3.88 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532430217. Price: $14.99 |
| 19 |
70-8680 |
CRANKSHAFT PULLEY Price: $145.64 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 20 |
67-2950 |
DISCONTINUED Price: Call Us |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
67-2960 |
LOCKWASHER Price: $1.16 |
| 22 |
67-2940 |
DISCONTINUED Price: Call Us |
| 23 |
67-4160 |
GASKET This part replaces 67-4310. Price: $4.78 |
| 24 |
67-4250 |
COVER Price: $37.89 |
| 25 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 26 |
67-3130 |
INTAKE VALVE Price: $61.71 |
| 27 |
67-3140 |
EXHAUST VALVE Price: $61.97 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 28 |
92-1961 |
VALVE SEAL This part replaces 42-7870. Price: $14.93 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
67-3110 |
SPRING Price: $7.88 |
| 30 |
67-3100 |
RETAINER Price: $7.92 |
| 31 |
42-7860 |
RET LOCK MD 016483 Price: $8.42 |
| 32 |
67-3180 |
CAP Price: $9.39 |
| 33 |
67-3200 |
ROCKER STAY Price: $31.11 |
| 34 |
67-3220 |
PIN Price: $1.13 |
| 35 |
67-3190 |
DISCONTINUED Price: Call Us |
| 36 |
42-9660 |
WASHER Price: $2.50 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
67-3170 |
SPRING Price: $2.87 |
| 38 |
67-3260 |
WASHER Price: $1.58 |
| 39 |
33114-060 |
SCREW-HH This part replaces 42-9510. Price: $0.88 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
