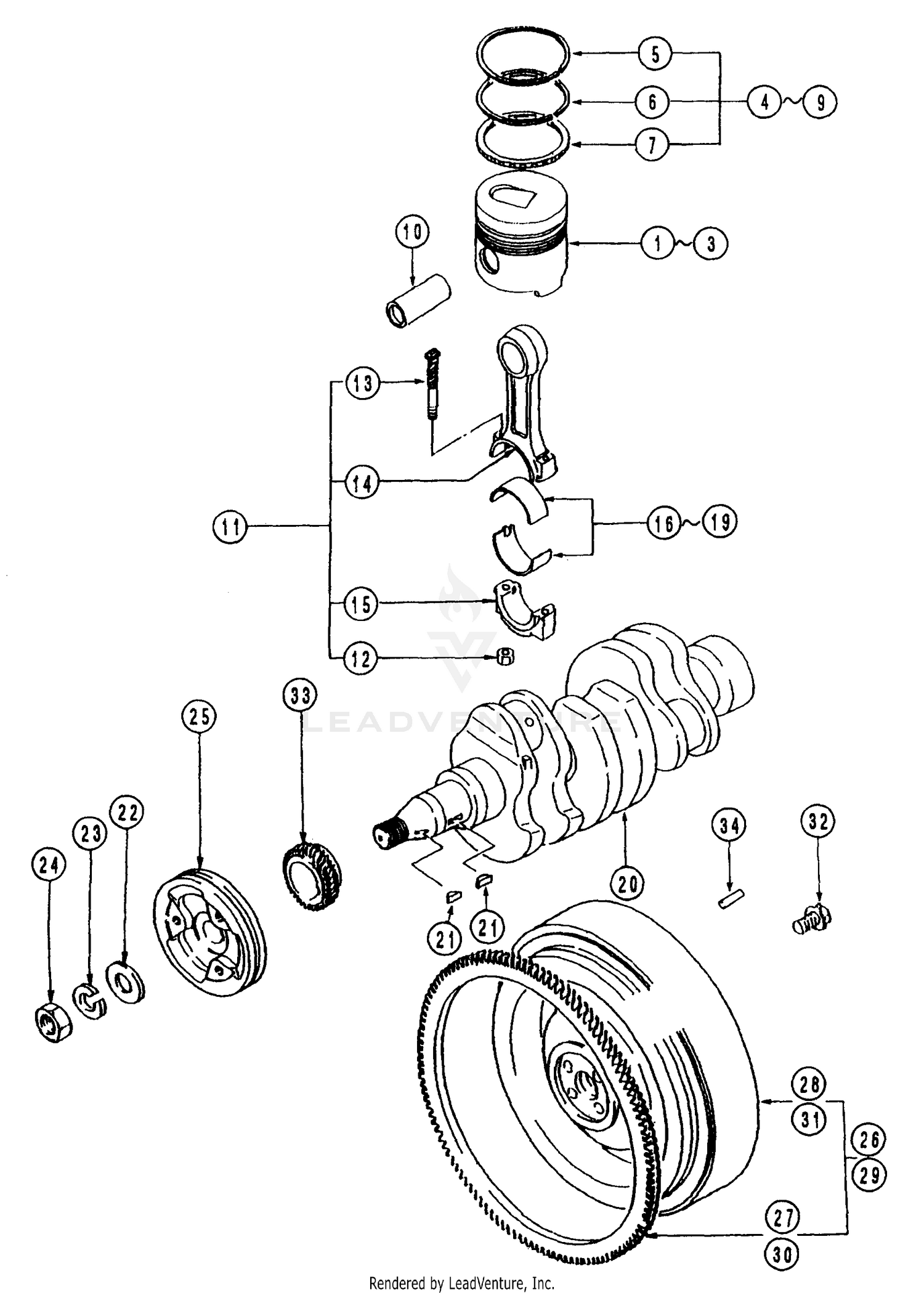

| Ref | Part Number | Description |
|---|
| 1 |
603000558 |
LOCKNUT, M6-1.00 NYLON INSERT Price: $1.99 |
| 1 |
MA-31A17-11100 |
PISTON-STD W/RING Not Available Price: |
| 2 |
603000873 |
BOLT - M6X1.0X40 HEX FLNG HD Price: $2.99 |
| 2 |
MA-31A17-11200P |
PISTON-.25MM W/RING Not Available This part replaces MA-31A17-11200. Price: |
| 3 |
603001299 |
NUT-M6X1.0 FLNG ALL MTL LOCK Price: $1.99 |
| 3 |
MA-31A17-11300 |
PISTON Not Available Price: |
| 4 |
603000874 |
SCREW, M6 X 16 TT HX FL HD Price: $1.99 |
| 4 |
MA-MM437295 |
PISTON RING SET STD Not Available This part replaces MA-MM433921. Price: |
| 5 |
None |
Ring, Piston No.1 |
| 5 |
603000953 |
ASSEMBLY, BRAKE LINE, REAR Price: $349.99 |
| 6 |
None |
Ring, Piston No.2 |
| 7 |
None |
Ring, Ass'y,Oil |
| 7 |
603000966 |
P-CLAMP, INSULATED .312 IN Price: $2.99 |
| 8 |
603001139 |
BRACKET, BRAKELINE, LEFT Price: $37.99 |
| 8 |
MA-MM437404 |
RING SET-.25MM O/S Not Available Price: |
| 9 |
603001140 |
BRACKET, BRAKELINE, RIGHT Price: $179.99 |
| 9 |
MA-MM437405 |
RING SET-. Not Available Price: |
| 10 |
603001141 |
BRACKET, TEE, BRAKELINE Price: $19.99 |
| 10 |
MA-31A17-10602 |
PISTON PIN Not Available This part replaces MA-31A17-10600. Price: |
| 11 |
603001143 |
CLIP, BRAKE LINE Price: $2.99 |
| 11 |
MA-31A19-01023 |
Rod Ass'y, Connecting Not Available This part replaces MA-31A19-01021. Price: |
| 12 |
603001605 |
BRKT, LINE, HYD, RECVR Price: $8.99 |
| 12 |
MA-MD006704 |
NUT-CONNECTING ROD Not Available Price: |
| 13 |
603001606 |
BRKT, LINE, HYD, SHK MNT, DRV Price: $9.99 |
| 13 |
MA-MD021105 |
CONNECTING ROD BOLT Not Available Price: |
| 14 |
None |
Con-Rod |
| 14 |
603001607 |
BRKT, LINE, HYD, SHK MNT, PASS Price: $9.99 |
| 15 |
None |
Cap,Connecting Rod |
| 16 |
MA-30A19-00040 |
Metal Set, Con-Rod STD This part replaces MA-MM437305. Price: $60.27 |
| 17 |
MA-30A19-10010 |
BEARING-CONN ROD .25 US Not Available This part replaces MA-30A19-00010. Price: |
| 18 |
MA-30A19-00020 |
BEARING-RO Not Available Price: |
| 19 |
MA-30A19-00030 |
BEARING-RO Not Available Price: |
| 20 |
MA-31B20-00204 |
CRANKSHAFT Not Available This part replaces MA-31B20-00200. Price: |
| 21 |
MA-MF476215 |
KEY Not Available Price: |
| 22 |
MA-MF450010 |
WASHER, PLAIN Not Available Price: |
| 23 |
MA-A3600101802 |
SPRING WASHER Not Available This part replaces MA-MF450410. Price: |
| 24 |
MA-MF430126 |
NUT Not Available Price: |
| 25 |
MA-31B20-02100 |
PULLEY, CRANKSHAFT Not Available Price: |
| 29 |
MA-31B21-01060 |
FLYWHEEL ASSEMBLY Not Available Price: |
| 30 |
MA-31B21-01060 |
FLYWHEEL ASSEMBLY Not Available Price: |
| 31 |
MA-MD40556 |
Gear, Ring Price: Call Us |
| 32 |
MA-31A21-03800 |
BOLT-FLYWHEEL Not Available This part replaces MA-MD952231. Price: |
| 33 |
MA-31A23-01301 |
CRANKSHAFT GEAR Not Available Price: |
| 34 |
MA-MF472404 |
PIN Not Available Price: |
