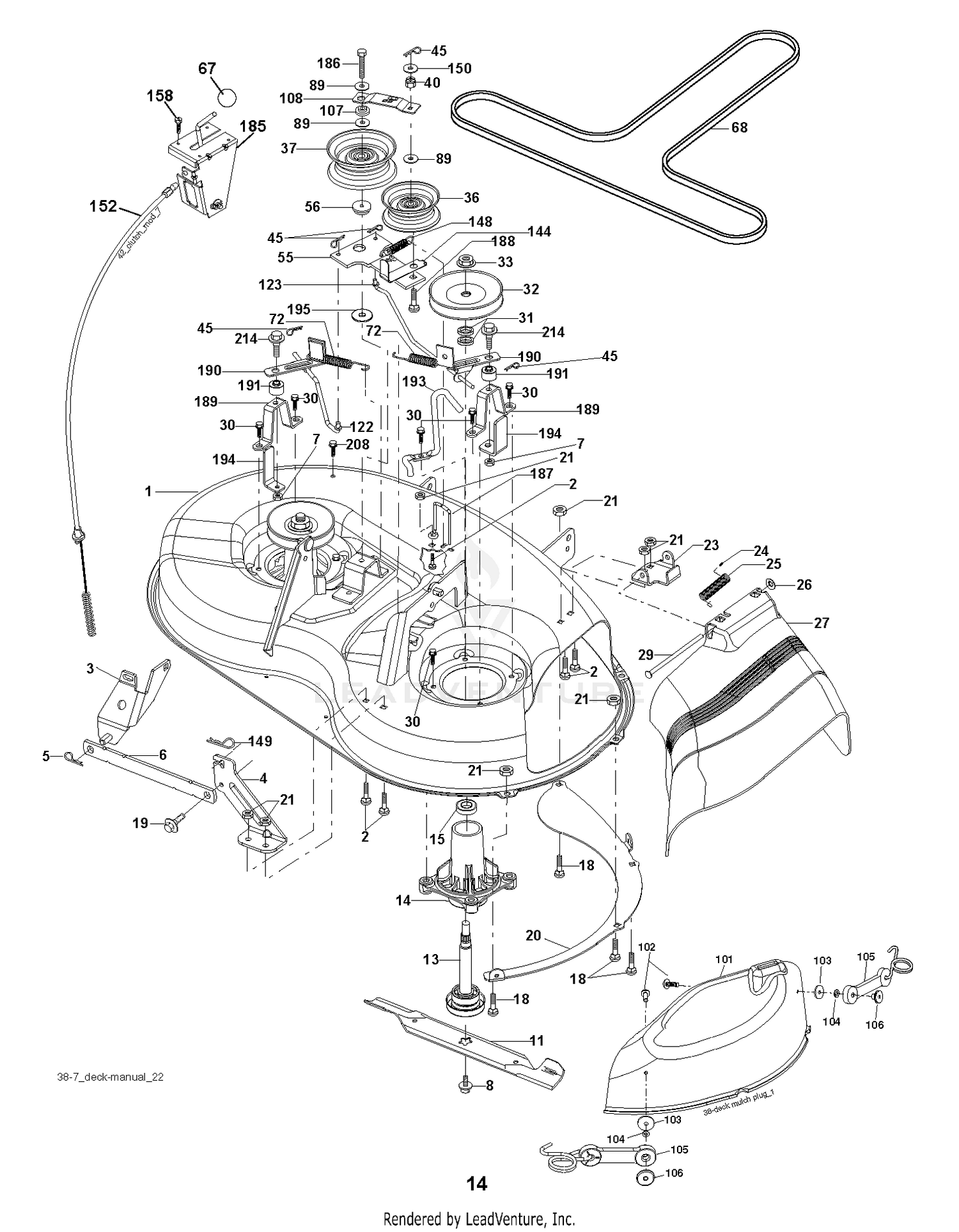

| Ref | Part Number | Description |
|---|
| 1 |
42126 |
STAINLESS STEEL Price: $4.52 |
| 1 |
532192556 |
DECK.WELDMENT.38"2005 Price: $228.99 |
| 2 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 2 |
92-0358 |
NUT/JAM Price: $10.35 |
| 3 |
532138017 |
BRKT ASM SWAY BAR Price: $7.99 |
| 3 |
92-0359 |
COVER - COIL Price: $11.41 |
| 4 |
532192568 |
BRACKET DECK SWAY BAR 38"/42" Price: $7.99 |
| 4 |
92-0360 |
ARMATURE STOP Price: $29.38 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 5 |
92-0361 |
DISCONTINUED Price: Call Us |
| 6 |
532178024 |
BAR SWAY DECK Price: $5.99 |
| 6 |
92-0362 |
STRAP Price: $14.97 |
| 7 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 7 |
92-0363 |
WASHER Price: $3.22 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 8 |
92-0364 |
DISCONTINUED Price: Call Us |
| 9 |
92-0365 |
ARMATURE Price: $54.79 |
| 11 |
532193957 |
BLADE 38" PREMIUM Price: $14.99 |
| 11 |
92-0366 |
DISCONTINUED Price: Call Us |
| 13 |
532192870 |
MANDREL ASM This part replaces 532192872. Price: $30.99 |
| 13 |
92-3681 |
SEAT WASHER RETAINER Price: $47.64 |
| 14 |
532187281 |
HOUSING MANDREL Price: $20.99 |
| 15 |
42136 |
SPACER-STAINLESS STEEL Price: $12.15 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
42137 |
BODY Price: $40.08 |
| 17 |
42138 |
DISCONTINUED This part replaces 92-3682. Price: Call Us |
| 18 |
42134 |
WASHER - ST'N ST'L Price: $16.42 |
| 18 |
872140505 |
BOLT Price: $2.69 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 19 |
92-0367 |
DIAPHRAM PISTON LOWER Price: $21.85 |
| 20 |
532400095 |
BAFFLE VORTEX Price: $12.99 |
| 20 |
92-0368 |
DISCONTINUED Price: Call Us |
| 21 |
42143 |
SCREW - ST'N ST'L Price: $3.87 |
| 21 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
532401472 |
Price: $34.99 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
532173984 |
SCREW, WASHER HEAD Price: $2.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.YELLOW This part replaces 532153532. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 36 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 37 |
532193198 |
PULLEY.IDLER.FLAT.UNPLATED Price: $22.99 |
| 40 |
873680600 |
LOCKNUT Price: $1.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 55 |
532133840 |
IDLER ARM Price: $4.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $2.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $2.99 |
| 68 |
532193214 |
V-BELT.MOWER.38"2005+ Price: $30.99 |
| 72 |
532193216 |
SPRING.BRAKE.RETURN.38" Price: $3.99 |
| 89 |
734117201 |
WASHER This part replaces 819131311. Price: $1.99 |
| 101 |
532192573 |
Price: Call Us |
| 102 |
871081010 |
SCREW Price: $3.49 |
| 103 |
819061216 |
WASHER Price: $2.69 |
| 104 |
810071000 |
LOCKWASHER Price: $2.99 |
| 105 |
532160793 |
LATCH ASSY Price: $7.99 |
| 106 |
532002029 |
NUT.WELD.#10-24 This part replaces 532125004. Price: $2.69 |
| 107 |
532133502 |
SPACER.IDLER.ARM Price: $2.99 |
| 108 |
532133503 |
STIFFENER.IDLER.ARM Price: $3.99 |
| 122 |
532410189 |
ROD, BRAKE LH LINK Price: $11.99 |
| 123 |
532410190 |
LINK.BRAKE.38"RIGHT Price: $11.99 |
| 144 |
532193414 |
KEEPER BELT Price: $3.99 |
| 148 |
532169022 |
IDLER RETURN SPRING Price: $2.69 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 150 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 152 |
532193913 |
Price: $56.99 |
| 158 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $33.99 |
| 186 |
817490644 |
SCREW.HXWSH.3/8 Price: $4.99 |
| 187 |
532193412 |
KEEPER BELT Price: $3.99 |
| 188 |
532171977 |
BOLT, CARRIAGE IDLER BLACK This part replaces 532165891. Price: $3.99 |
| 189 |
532192558 |
BRAKE.ASSY.38"2005.+ This part replaces 532192559. Price: $14.99 |
| 190 |
532192558 |
BRAKE.ASSY.38"2005.+ This part replaces 532192560. Price: $14.99 |
| 191 |
532192561 |
SPACER, BRAKE Price: $2.99 |
| 193 |
532193413 |
KEEPER BELT RH MANDREL Price: $7.99 |
| 194 |
532192558 |
BRAKE.ASSY.38"2005.+ This part replaces 532194105. Price: $14.99 |
| 195 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 214 |
532193782 |
BOLT/WASHER ASM 5/16-18 Price: $4.99 |
