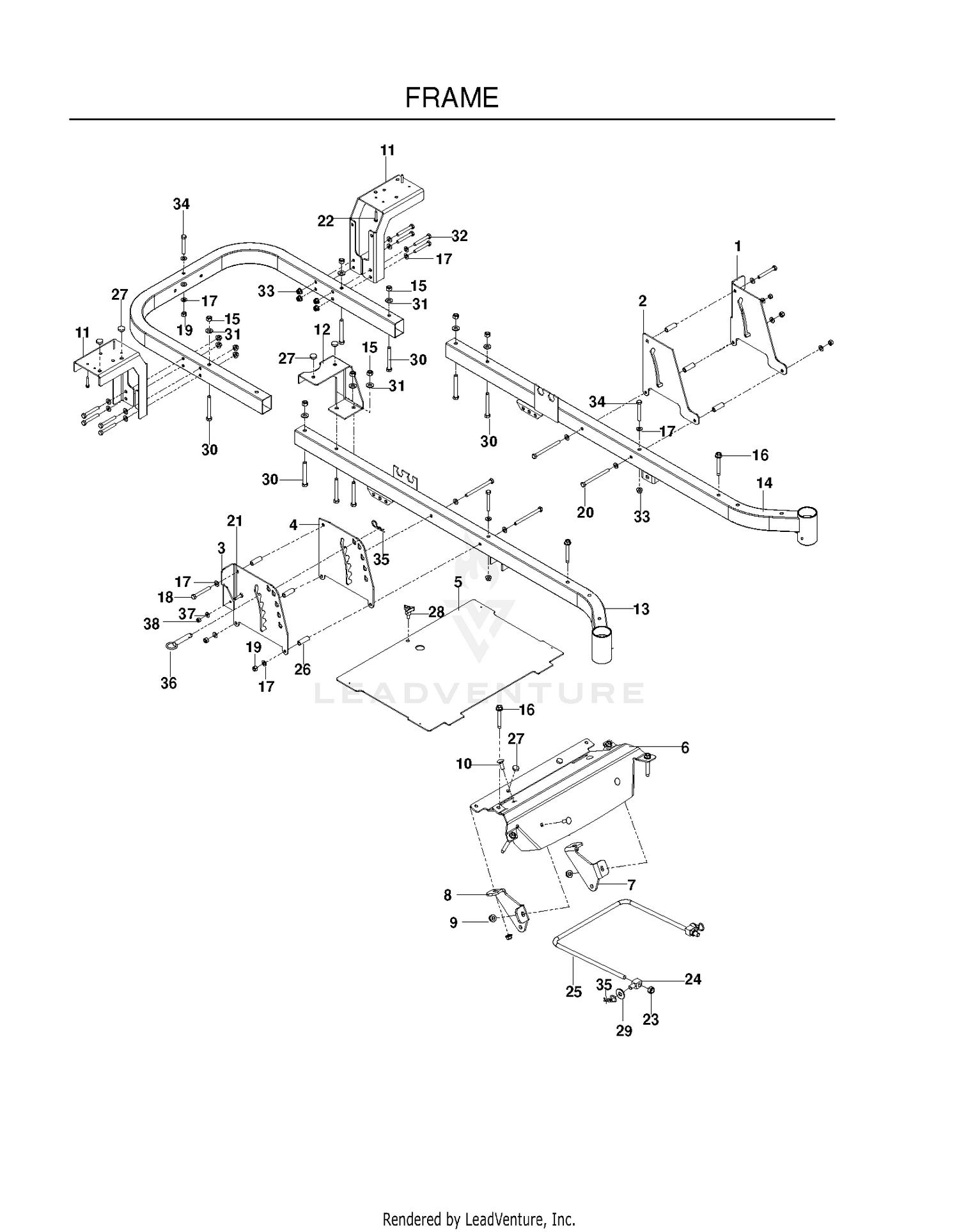

FRAME

FRAME

Parts (84)

RefPart NumberDescription
1 3274-70 SCREW-HSH Price: $9.50
1 510261802 PLATE, OUTER BRAKE, BLACK Price: $34.99
2 353-727 BONNET-SPECIAL Price: $105.32
2 510206703 PLATE, BRAKE LATCH, BLACK Price: $24.99
3 353-729 DETENT STUD Price: $179.48
3 510245602 PLATE, HEIGHT ADJ, BLACK Price: $44.99
4 353-733 SPACER-BONNET Price: $41.01
4 510240502 PLATE, DECK HEIGHT, BLACK Price: $14.99
5 353-481 LIFT CHECK ASM Price: $338.44
5 598712401 PLATES This part replaces 522842902. Price: $99.99
6 237-54 O-RING Price: $1.97
6 522719504 FOOT.REST.MED.ORANGE Price: $89.99
7 353-306 WASHER-BACKUP Price: $9.12
7 522443302 MOUNT, STRUT, RT, BLK Price: $19.99
8 353-305 O-RING Price: $10.91
8 522443304 MOUNT, STRUT, LT, BLK Price: $349.99
9 353-303 WASHER-BACKUP Price: $9.06
9 521996502 GSPW Nuts This part replaces 521996501. Price: $2.99
10 353-302 O-RING Price: $10.13
10 595316801 Bolts This part replaces 539990645. Price: $3.99
11 510225902 SUPPORT, FENDER, BLACK Price: $54.99
12 353-851 BODY-RELIEF Price: $180.95
12 510226002 SUPPORT, TANK, BLACK Price: $49.99
13 353-392 RING-PISTON Price: $13.94
13 589283402 FRAME.TUBE.RZ.MAIN.WELD.RH.ORG This part replaces 510177503. Price: $79.99
14 353-531 POPPET AND RING ASM Price: $229.51
14 589283302 FRAME.TUBE.RZ.MAIN.WELD.LH.ORG This part replaces 510177403. Price: $79.99
15 353-328 SHIM (.040) Price: $3.53
15 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
16 353-329 SHIM (.020) Price: $2.10
16 539111976 ENGINE BOLT, SPECIAL Price: $2.99
17 353-330 SHIM (.010) Price: $3.60
17 596204101 WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99
18 353-398 SPRING This part replaces 353-855. Price: $30.09
18 539991046 BOLT 5/16C X 2 1/2 Price: $3.99
19 353-334 CAP-RELIEF Price: $55.48
19 596583702 Nuts This part replaces 539990717. Price: $2.99
20 3274-52 SCREW-HSH Price: $3.19
20 596435501 Bolts This part replaces 539102335. Price: $3.99
21 353-575 BOOT Price: $58.68
21 539977761 HCS 1/4C X 1 Price: $2.99
22 596917002 Screws This part replaces 539110674. Price: $1.99
22 93-3651 RETAINER-BOOT Price: $31.38
23 595901901 Nuts This part replaces 539119124. Price: $2.99
24 539114789 SWIVEL Price: $11.99
24 92-2547 SEAL-RETAINER Price: $15.10
25 521938102 Links This part replaces 521938101. Price: $12.99
25 92-2546 WIPER-SEAL Price: $4.56
26 353-957 CUP-SEAL Price: $16.26
26 580486102 Spacers This part replaces 515988101. Price: $3.99
27 353-301 CHECK-LIFT, POPPET Price: $23.96
27 539102587 GROMMET, BUMPER Price: $4.99
28 353-304 SPRING-CHECK, LIFT Price: $25.31
28 597783101 GSPW Knobs This part replaces 539104411. Price: $3.99
29 353-331 O-RING Price: $16.66
29 595316401 Washers This part replaces 539109554. Price: $2.99
30 353-760 RELIEF-BODY Price: $239.97
30 539101341 HCS 3/8C X 3 Price: $4.99
31 353-758 O-RING Price: $18.26
31 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99
32 353-952 SEAL-BACK-UP Price: $7.89
32 539976938 CAPSCREW Price: $3.99
33 3217-7 NUT-HEX Price: $0.28
33 594944401 NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99
34 353-772 COVER-LEFT Price: $415.33
34 539101721 HCS 5/16C X 2-3/4 Price: $3.99
35 353-721 PLUG Price: $44.12
35 596273101 Pins This part replaces 539976989. Price: $2.99
36 596917701 Pins This part replaces 539102526. Price: $4.99
37 596582301 Washers This part replaces 539990055. Price: $2.99
40 353-417 COLLAR-STOP Price: $10.31
41 99-6850 SPRING-COMPRESSION Price: $15.88
42 99-8181 BONNET-R Price: $253.68
43 3274-15 SCREW-HSH Price: $0.42
44 353-763 CAP-ADJUSTMENT Price: $161.34
45 104-7727 SPRING-DETENT This part replaces 99-1475. Price: $18.78
46 42-2680 RACE-BALL Price: $76.92
47 52-5880 BALL-DETENT Price: $4.60
48 354-29 PLATE-THRUST Price: $236.43
49 353-728 SLEEVE Price: $77.42
50 353-762 SPUD-OUT Price: $152.45
52 353-732 SLEEVE-DETENT Price: $113.02
53 38-0410 NUT-HEX Price: $5.77
54 83-1890 SWITCH-BALL Price: $63.08
