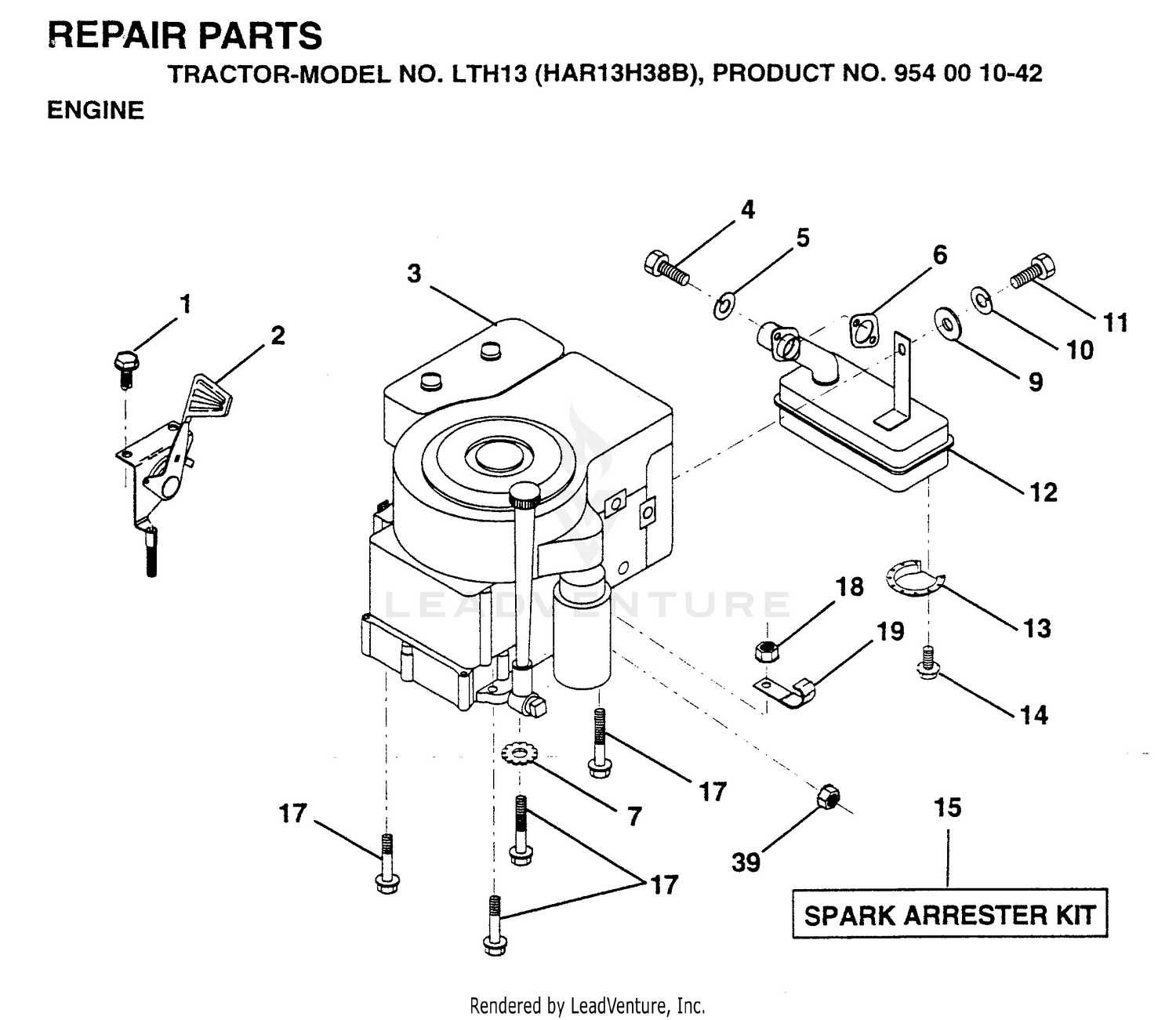

| Ref | Part Number | Description |
|---|
| 1 |
100-1535 |
SWITCH Price: $84.91 |
| 1 |
817060408 |
SCREW Price: $4.99 |
| 2 |
99-7420 |
PLUG-HOLE Price: $7.64 |
| 3 |
532145301 |
Engine, B&S, 13 HP, Vanguard Dual Model Number 28P777 Price: Call Us |
| 5 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 6 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532125593. Price: $8.99 |
| 7 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 10 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 11 |
817640416 |
This part replaces 817490416. Price: $1.92 |
| 12 |
532142380 |
MUFFLER NLA Price: $94.66 |
| 13 |
532144987 |
DEFLECTOR, MUFFLER This part replaces 532144986. Price: $5.69 |
| 14 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 15 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 16 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 18 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 19 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 24 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 25 |
874570512 |
Screw Hex Skt 5/16-18 unc x 3/4 Price: $3.99 |
| 26 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 39 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
