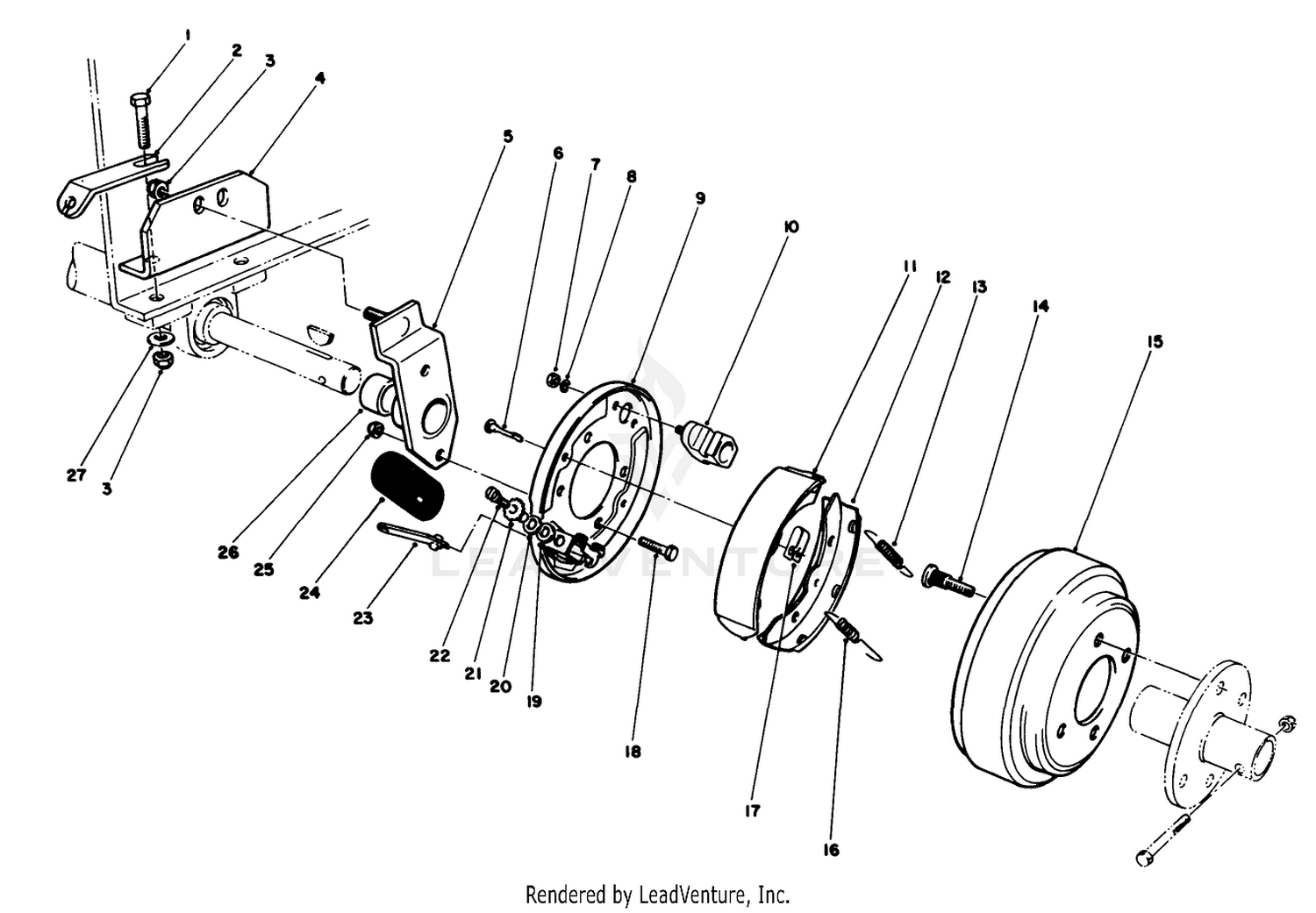

| Ref | Part Number | Description |
|---|
| 1 |
3217-26 |
NUT-HEX Price: $0.25 |
| 1 |
323-9 |
SCREW-HH Price: $1.29 |
| 2 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 2 |
56-3650 |
LOWER CABLE BRKT *B Price: Call Us |
| 3 |
218-515 |
BRACKET Price: $12.11 |
| 3 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 4 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 4 |
56-3660 |
MT BRKT *B Price: Call Us |
| 5 |
54-1190 |
HR.METER BRKT. *R Price: $21.96 |
| 5 |
56-3680 |
Brake Bracket Assembly (Incl. Ref. #26) Price: $232.77 |
| 6 |
56-3480 |
TENSION PIN Price: Call Us |
| 7 |
56-3520 |
NUT Price: Call Us |
| 8 |
56-3510 |
SPRING WASHER Price: Call Us |
| 9 |
56-3401 |
REAR BRAKE ASM LH This part replaces 56-3420. Price: $340.76 |
| 10 |
56-3460 |
ADJUSTER Price: $24.93 |
| 11 |
56-3440 |
SHOE Price: $52.22 |
| 12 |
57-0830 |
TRAILING SHOE Price: Call Us |
| 13 |
56-3450 |
BRAKE SPRING Price: Call Us |
| 14 |
242-77 |
WHEEL BOLT Price: Call Us |
| 15 |
53-4640 |
DRUM Price: $215.94 |
| 16 |
57-0820 |
BRAKE SPRING Price: $14.09 |
| 17 |
56-3470 |
SHOE CLAMP SPRING Price: Call Us |
| 18 |
322-4 |
SCREW-HH Price: $0.35 |
| 19 |
57-0880 |
WASHER Price: Call Us |
| 20 |
57-0890 |
THRUST WASHER Price: Call Us |
| 21 |
57-0850 |
ADJ NUT Price: Call Us |
| 22 |
57-0870 |
ADJ BOLT Price: Call Us |
| 23 |
57-0810 |
LH LEVER ASM Price: Call Us |
| 24 |
56-3490 |
DUST COVER Price: Call Us |
| 25 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 26 |
256-278 |
BUSHING #AA-1232 Price: Call Us |
