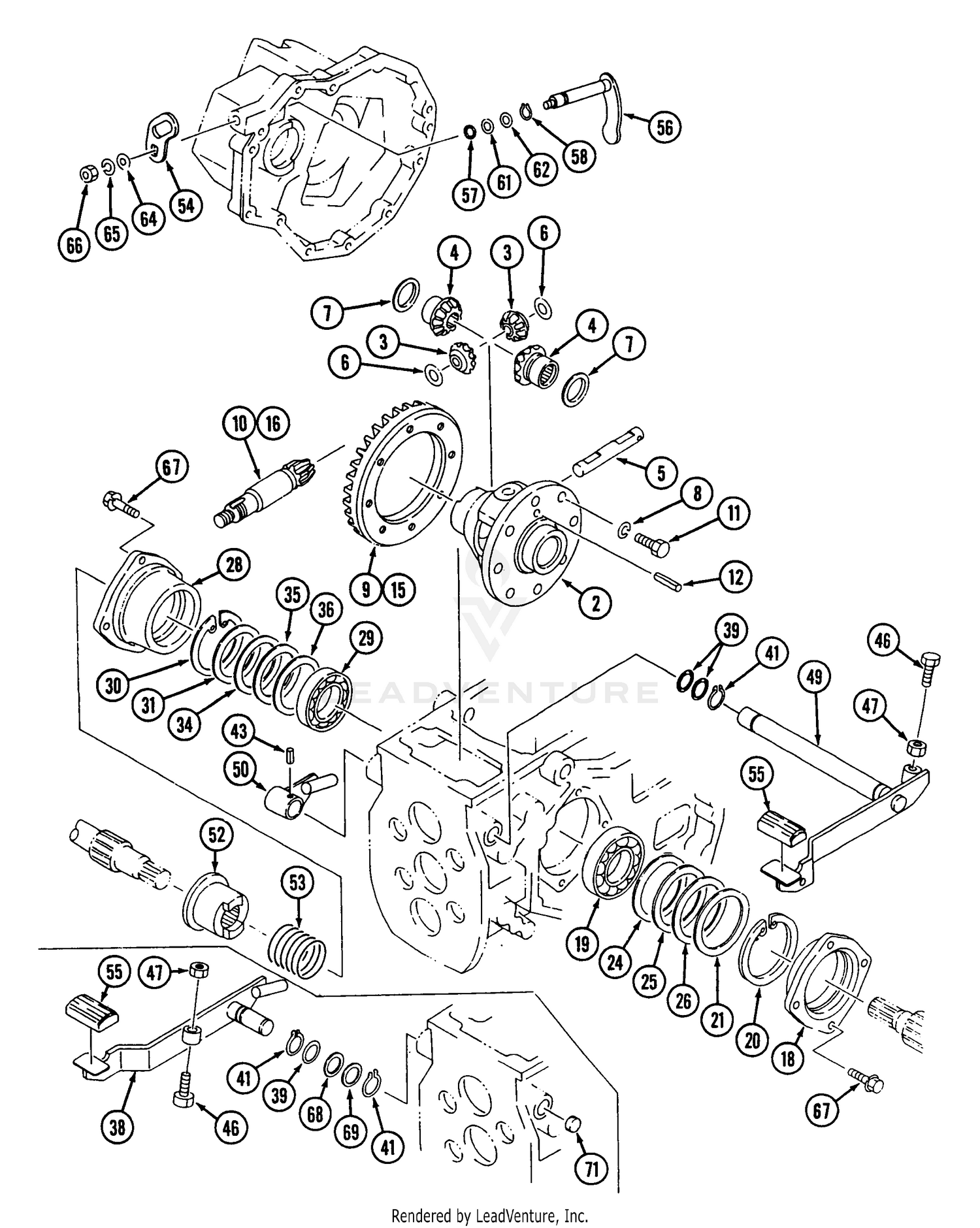

Final Drive - 2WD (Gear)
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 70-3060 | GASKET Price: $2.95 |
| 2 | 70-4980 | BOLT Price: $19.50 |
| 2 | MA-10191411000 | CASE DIFF Not Available Price: |
| 3 | 60-7120 | NUT Price: $1.55 |
| 3 | MA-10191412000 | PINION Not Available Price: |
| 4 | 70-3480 | STUD Price: $16.18 |
| 4 | MA-10191413000 | GEAR SIDE Not Available Price: |
| 5 | 70-3430 | DISCONTINUED Price: Call Us |
| 5 | MA-10191414000 | Shaft, Pinion Price: $101.59 |
| 6 | 70-6080 | HOSE Price: $72.55 |
| 6 | MA-10191415000 | WASHER THRUST Not Available Price: |
| 7 | 70-6070 | PIPE Price: $129.52 |
| 7 | MA-10191416000 | WASHER THRUST Not Available Price: |
| 8 | 70-4950 | HOSE Price: $100.72 |
| 8 | MA-A3600100802 | WASHER SPRING Not Available Price: |
| 9 | 70-3440 | CLAMP Price: $35.07 |
| 10 | 70-6240 | GASKET Price: $11.02 |
| 11 | 70-3340 | CONNECTOR Price: $21.43 |
| 11 | MA-10302103000 | BOLT Not Available Price: |
| 12 | 70-5310 | ELBOW Price: $59.85 |
| 12 | MA-05500006040 | SPRING PIN Not Available Price: |
| 13 | 70-3090 | CLAMP Price: $3.60 |
| 14 | 70-3040 | HOSE Price: $11.71 |
| 15 | 70-5490 | PIPE Price: $170.50 |
| 16 | 70-5480 | DISCONTINUED Price: Call Us |
| 17 | 70-2830 | BOLT Price: $3.08 |
| 18 | 51-7400 | WASHER Price: $1.31 |
| 18 | MA-19631406000 | HOLDER-DIFF (LH) Not Available Price: |
| 19 | 99-2121 | GASKET-PIPE, OIL This part replaces 70-4970. Price: $11.38 |
| 19 | MA-07500062100 | BEARING NSK 6210 Not Available Price: |
| 20 | MA-07410009001 | RING, SNAP Not Available Price: |
| 21 | MA-10251531000 | LINER Not Available Price: |
| 24 | MA-69542-60700 | LINER T=0. Not Available Price: |
| 25 | MA-69542-60800 | LINER T=0.2 Not Available Price: |
| 26 | MA-69542-60900 | LINER T=1. Not Available Price: |
| 28 | MA-19631407000 | HOLDER-DIFF (RH) Not Available Price: |
| 29 | MA-07500060100 | BEARING NSK6010 Not Available Price: |
| 30 | MA-07410008001 | RING, SNAP. Not Available Price: |
| 31 | MA-10251535000 | LINER Not Available Price: |
| 34 | MA-10070618000 | LINER=0.1 Not Available Price: |
| 35 | MA-10070618100 | LINER=0.2 Not Available Price: |
| 36 | MA-10070618200 | SHIM=0.4 Not Available Price: |
| 38 | MA-19631408AG0 | PEDAL DIFF LOCK Not Available Price: |
| 39 | MA-08300100160 | O-RING Not Available Price: |
| 41 | MA-07400002000 | RING, SNAP Not Available Price: |
| 46 | MA-A0500110035 | BOLT Not Available Price: |
| 47 | MA-A3010110002 | NUT Not Available Price: |
| 52 | MA-10261415000 | SLEEVE Not Available Price: |
| 53 | MA-11351416000 | SPRING Not Available Price: |
| 54 | MA-19631414AG0 | ARM Not Available Price: |
| 55 | MA-10320228000 | COVER PEDAL Not Available Price: |
| 56 | MA-19631415000 | SHIFTER Not Available Price: |
| 57 | MA-08300100110 | O-RING Not Available Price: |
| 58 | MA-07420001200 | RING, SNAP Not Available Price: |
| 61 | MA-07310001504 | LINER Not Available Price: |
| 62 | MA-07310001512 | LINER Not Available Price: |
| 64 | MA-03500150822 | WASHER Not Available Price: |
| 65 | MA-A3600100802 | WASHER SPRING Not Available Price: |
| 66 | MA-A3010108002 | NUT Not Available Price: |
| 67 | MA-F1550110025 | BOLT,W/SPRING WASH Not Available Price: |
| 68 | MA-07310002004 | LINER Not Available Price: |
| 69 | MA-07310002010 | LINER Not Available Price: |
