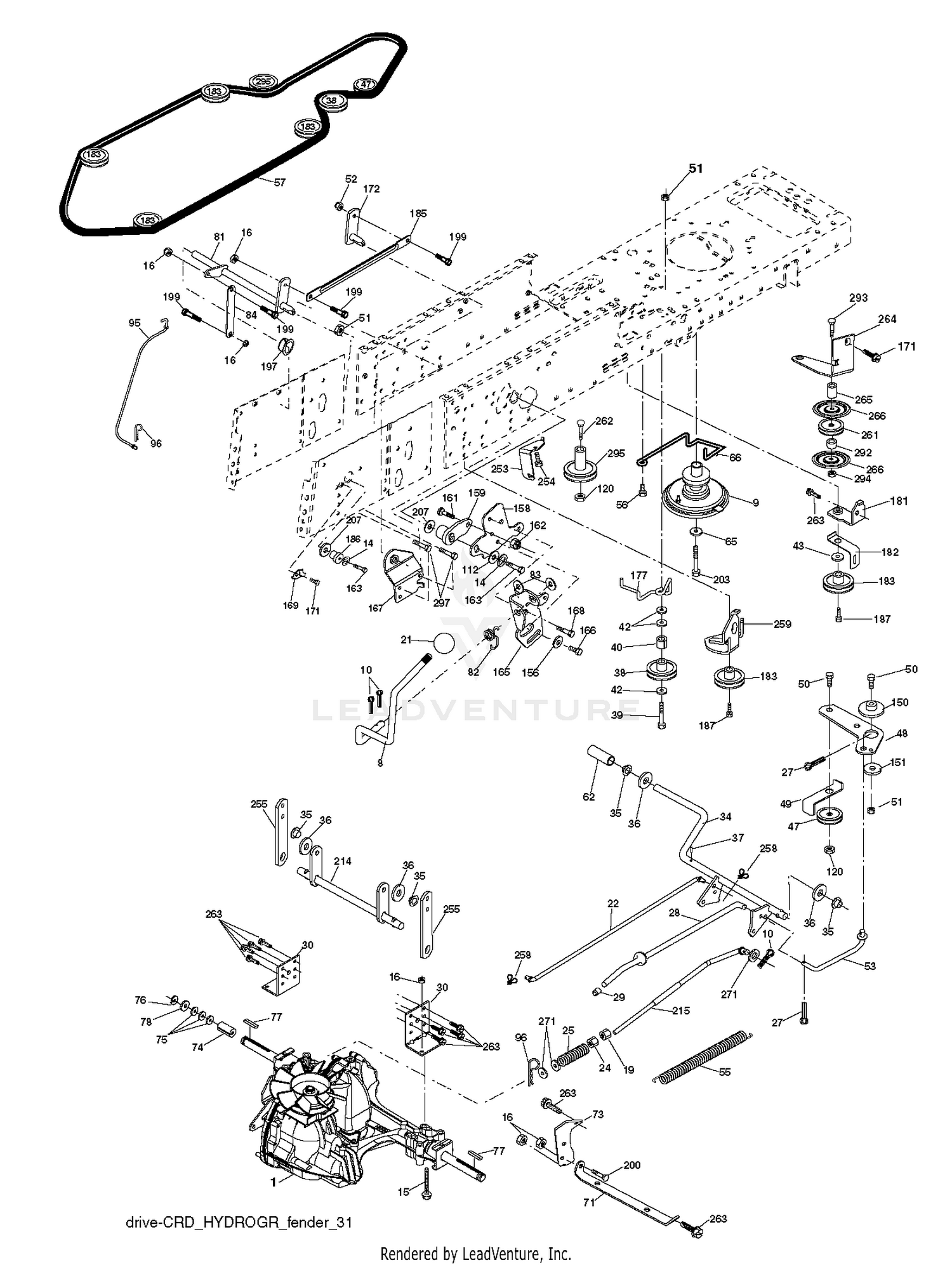

| Ref | Part Number | Description |
|---|
| 1 |
94-3131 |
SCREW-HH Price: $1.06 |
| 2 |
94-3208 |
STUB-OUTLET Price: $184.75 |
| 3 |
98-9970 |
DISCONTINUED Price: Call Us |
| 4 |
94-3207 |
RING Price: $10.14 |
| 5 |
94-3214 |
CAPSCREW Price: $4.42 |
| 6 |
94-3211 |
TEMP SENDING UNIT BLUE Price: $82.56 |
| 7 |
94-3212 |
PLUG Price: $10.14 |
| 8 |
532192706 |
ROD SHIFT FENDER ADJUST LT Price: $19.99 |
| 8 |
94-3213 |
CAPSCREW Price: $30.93 |
| 9 |
532408579 |
Price: Call Us |
| 9 |
76-5410 |
COLLECTOR GASKET This part replaces 94-3206. Price: $7.82 |
| 10 |
876020416 |
PIN COTTER Price: $3.99 |
| 10 |
94-3210 |
GASKET Price: $11.64 |
| 14 |
810040400 |
LOCKWASHER Price: $3.99 |
| 15 |
874490544 |
BOLT HEX 5/16-18 GR 5 Price: $2.99 |
| 16 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 19 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $8.99 |
| 22 |
532175607 |
Rod, Brake Price: $6.99 |
| 24 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 25 |
532192036 |
Spring, Rod, Brake Price: $1.99 |
| 27 |
876020412 |
COTTER PIN Price: $3.99 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $3.99 |
| 29 |
532071673 |
PLUNGER CAP Price: $3.99 |
| 30 |
532169592 |
BRKT, TRNSXLE MNT 20" Price: $3.99 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $19.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 36 |
819211616 |
WASHER LT Price: $3.99 |
| 37 |
532002882 |
DRIVE PIN This part replaces 532124963. Price: $2.99 |
| 38 |
532165936 |
PULLEY.FLAT Price: $17.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 42 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 43 |
819111012 |
WASHER T Price: $3.99 |
| 47 |
532139245 |
Pulley, Idler V Groove This part replaces 532127783. Price: $22.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $4.99 |
| 49 |
532123205 |
RETAIN BELT Price: $3.99 |
| 50 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 51 |
873680600 |
LOCKNUT Price: $1.99 |
| 52 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 56 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 57 |
532170140 |
V-Belt Kev 112" 0650 CRD Price: $51.99 |
| 62 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 65 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 66 |
532154778 |
KEEPER BELT ENGINE Price: $8.99 |
| 71 |
532169183 |
STRAP TORQUE LH HYDRO Price: $4.99 |
| 73 |
532169182 |
STRAP TORQUE RH HYDRO Price: $7.99 |
| 74 |
532137057 |
SPACER AXLE Price: $3.99 |
| 75 |
532121749 |
WASHER Price: $1.99 |
| 76 |
812000001 |
E-RING LT Price: $2.99 |
| 77 |
532123583 |
SQUARE KEY Price: $2.69 |
| 78 |
532121748 |
WASHER Price: $1.99 |
| 81 |
532170006 |
SHAFT ASSY Price: $17.99 |
| 82 |
532165711 |
SHIFT SPRING Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 84 |
532170007 |
Link, Transaxle Price: $3.99 |
| 95 |
532170015 |
Control Asm Bypass Hydro Price: $7.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 112 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 120 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 150 |
532165850 |
BUSHING.BELLCRANK.GRD.DR Price: $3.99 |
| 151 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 156 |
532166002 |
WASHER.SRRTD.5/16 Price: $3.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT Price: $3.99 |
| 159 |
532444304 |
HUB.SHIFT Price: $4.99 |
| 161 |
872110407 |
BOLT, HEX HEAD This part replaces 872140406. Price: $2.99 |
| 162 |
873680400 |
NUT.CROWNLOCK.1/4 Price: $2.69 |
| 163 |
874780416 |
BOLT Price: $3.99 |
| 165 |
532438250 |
BRACKET.PIVOT.LEVER Price: $4.99 |
| 166 |
817490510 |
SCREW Price: $2.99 |
| 167 |
532165588 |
BRACKET Price: $14.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $3.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $3.99 |
| 171 |
817490608 |
SCREW LT Price: $3.99 |
| 172 |
532170271 |
Shaft Asm Shifter Frt CRD Price: $7.99 |
| 177 |
532165932 |
KEEPER Price: $3.99 |
| 181 |
532180211 |
Bracket Idler Ground Drive CRD Price: $1.99 |
| 182 |
532182682 |
Keeper Belt 2.5" Od V-Idler CRD Price: $1.99 |
| 183 |
532199534 |
PULLEY.V-IDLER. Price: $22.99 |
| 185 |
532170008 |
Link Shift Price: $3.99 |
| 186 |
532165614 |
HUB Price: $3.99 |
| 187 |
817580520 |
BOLT.5/16-18X1.25 Price: $2.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $3.99 |
| 199 |
532169612 |
BOLT SHOULDER 5/16-18 UNC Price: $3.99 |
| 200 |
872140508 |
BOLT Price: $2.99 |
| 203 |
71170780 |
BOLT HEX This part replaces 871170780. Price: Call Us |
| 207 |
532169845 |
WASHER NYL Price: $2.99 |
| 214 |
532175609 |
Shaft Asm. Brake Price: $9.99 |
| 215 |
532175652 |
Rod Brake Hydro Price: $5.99 |
| 253 |
532175028 |
Bracket Cable Chassis Price: Call Us |
| 254 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 255 |
532175608 |
Brace Shaft Brake Mtg. Price: $1.99 |
| 258 |
532178062 |
CLIP RETAINER Price: $2.99 |
| 259 |
532180212 |
Bracket Pulley Price: $2.99 |
| 261 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 262 |
872110622 |
BOLT Price: $3.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 264 |
532431174 |
Price: $3.99 |
| 265 |
532426913 |
Price: Call Us |
| 266 |
532182061 |
Shield Idler Mower Price: $1.99 |
| 271 |
819131414 |
Washer Flat 13/32 x 7/8 x 14 Ga. This part replaces 819131416. Price: $3.99 |
| 292 |
532400271 |
Spacer Noram Price: $1.99 |
| 293 |
872140628 |
Bolt Rdhd Sqnk 3/8-16 x 3-1/2 Price: $1.99 |
| 294 |
532197033 |
NUT, HEX 3/8-16 Price: $2.99 |
| 295 |
532179114 |
PULLEY IDLER COMPOSITE Price: $19.99 |
