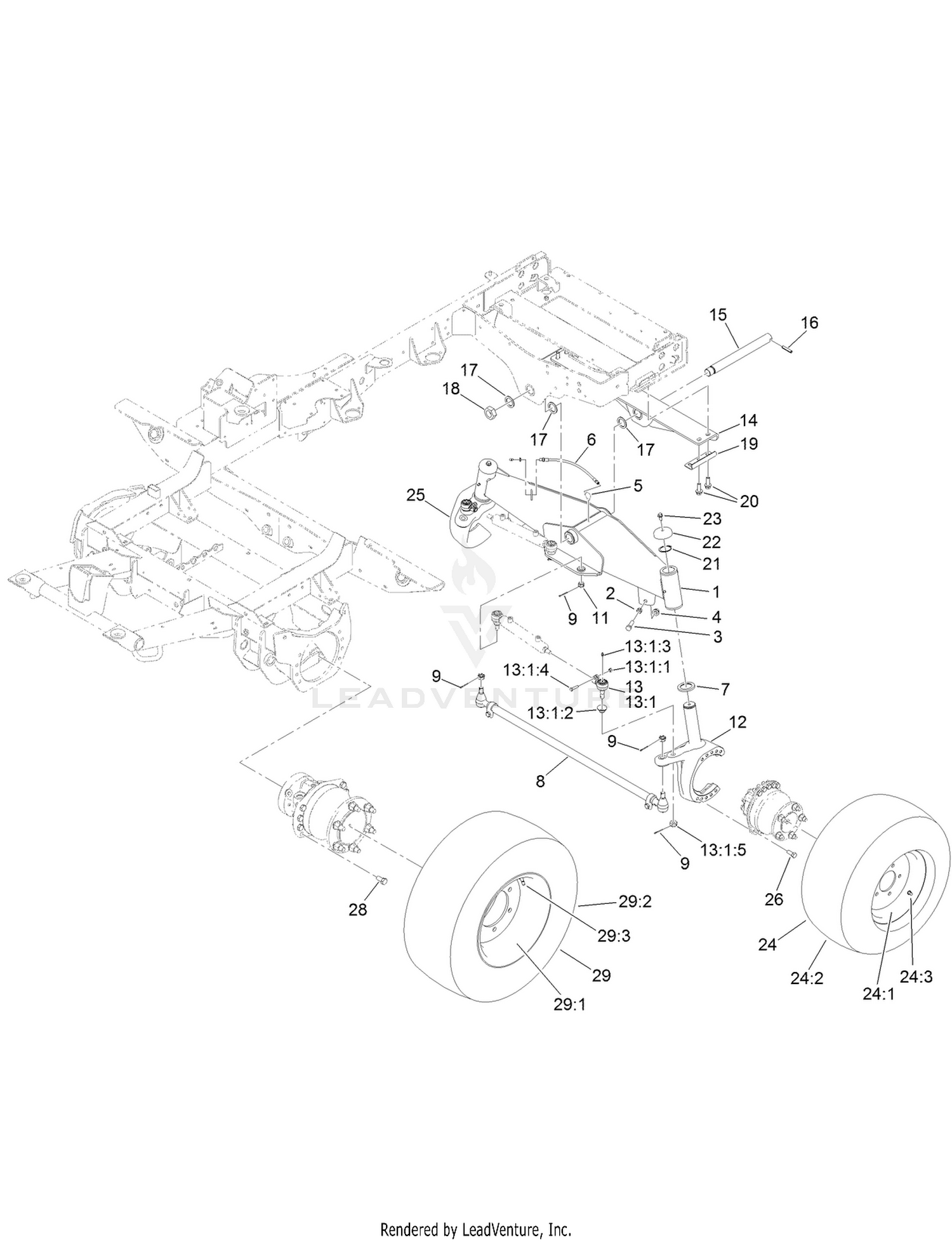

| Ref | Part Number | Description |
|---|
| 1 |
144-7191 |
AXLE ASM This part replaces 114-5982-01. Price: $1,951.22 |
| 2 |
3218-5 |
NUT-JAM Price: $0.27 |
| 3 |
325-7 |
SCREW-HH Price: $1.53 |
| 4 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 5 |
2811-7 |
ELBOW Price: $35.82 |
| 6 |
114-5586 |
HOSE ASM (WITH FITTING) Price: $97.44 |
| 7 |
100-2508 |
WASHER-THRUST Price: $24.09 |
| 8 |
147-3564 |
TIE ROD ASM This part replaces 110-6049-03. Price: $191.53 |
| 9 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 11 |
32136-13 |
NUT-SHH Price: $2.85 |
| 12 |
130-9043-01 |
SPINDLE-STEER, LH Price: $595.13 |
| 13 |
106-6895-03 |
BALL JOINT ASM Price: $258.08 |
| 14 |
110-6033-01 |
SUPPORT-AXLE Price: $466.09 |
| 15 |
114-5970 |
SHAFT-PIVOT Price: $171.22 |
| 16 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 17 |
98-1452 |
WASHER-THRUST Price: $0.94 |
| 18 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 19 |
130-9033-01 |
GUARD-HOSE Price: $13.95 |
| 20 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 21 |
100-4196 |
RING-RETAINING Price: $1.90 |
| 22 |
100-3362 |
CAP-SPINDLE Price: $44.10 |
| 23 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 24 |
127-3509 |
WHEEL AND TIRE ASM Price: $371.28 |
| 25 |
130-9041-01 |
SPINDLE-STEER, RH Price: $595.13 |
| 26 |
325-5 |
SCREW-HH Price: $1.20 |
| 28 |
327-3 |
SCREW-HH Price: $1.49 |
| 29 |
131-2380 |
WHEEL AND TIRE ASM Price: $883.13 |
