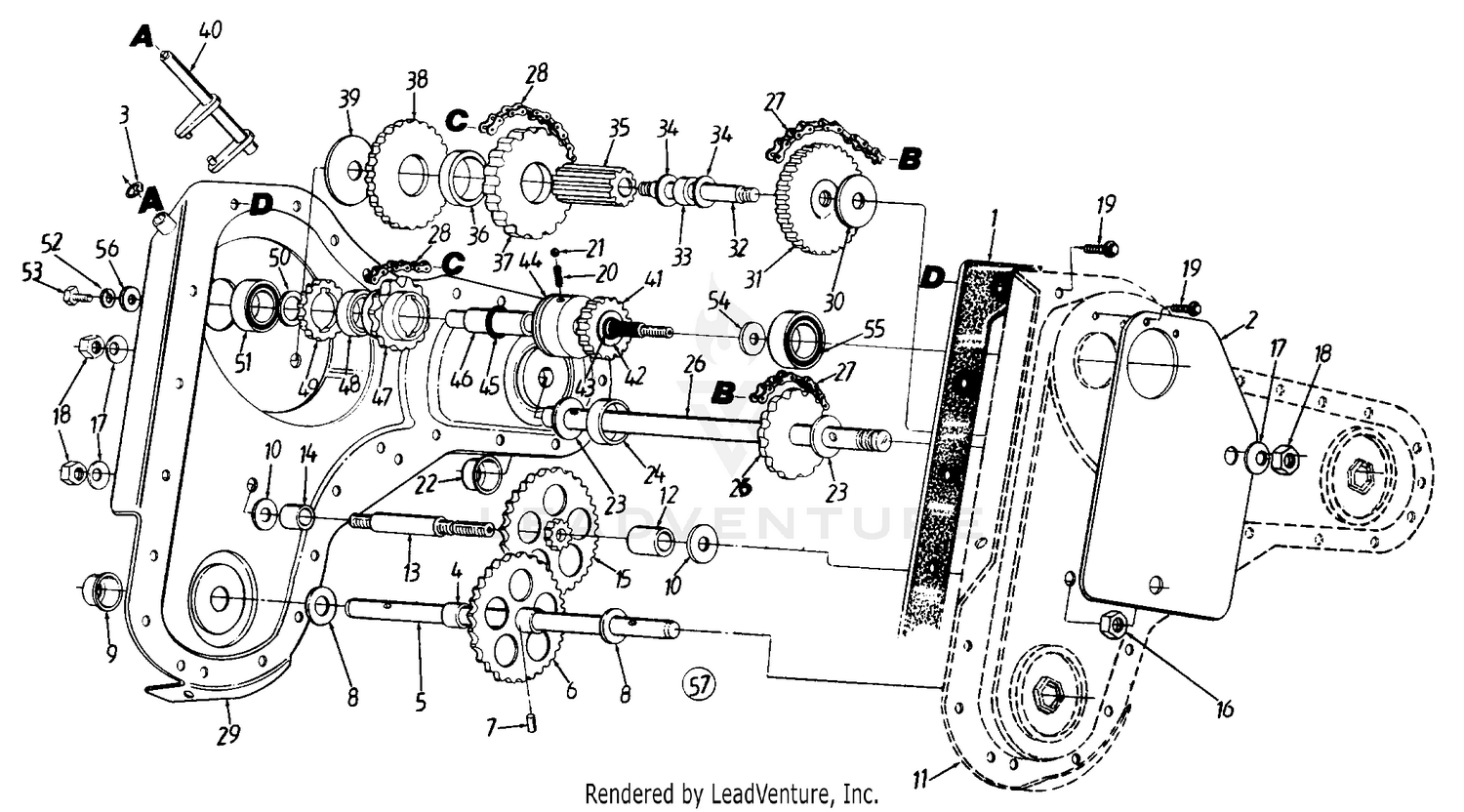

| Ref | Part Number | Description |
|---|
| 1 |
721P0295 |
CHAIN CASE GASKET Not Available This part replaces 721-0295. Price: |
| 2 |
786-0086-0637 |
Reinforcement Plate This part replaces 786-0086. Price: $27.55 |
| 3 |
716-0865 |
Snap Ring Price: $3.86 |
| 4 |
950-0938 |
SPACER Not Available This part replaces 750-0938. Price: |
| 5 |
753-0645 |
TILLER WHEEL AXLE KIT Not Available This part replaces 711-1015. Price: |
| 6 |
753-0645 |
TILLER WHEEL AXLE KIT Not Available This part replaces 717-1406. Price: |
| 7 |
715-0215 |
PIN TYPE "E" GROOVED Not Available Price: |
| 8 |
736-0351 |
Fl-Wash. .76" I.D. x 1.5" O.D. Price: $3.93 |
| 9 |
721-0379 |
Shaft Seal This part replaces 784-0166. Price: $16.93 |
| 10 |
936-0406 |
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. This part replaces 736-0406. Price: $5.94 |
| 11 |
986-0039-0637 |
GEAR CASE ASSEMBLY HALF (LH) Not Available This part replaces 686-0039. Price: |
| 12 |
750-0935 |
SPACER Not Available Price: |
| 13 |
738-0885 |
JACK SHAFT Not Available Price: |
| 14 |
950-0936 |
SPACER Not Available This part replaces 750-0936. Price: |
| 15 |
917-0004 |
IDLER GEAR ASSEMBLY Not Available This part replaces 617-0004. Price: |
| 16 |
712-3067 |
Hex Patch L-Nut 7/16-20 Thd. Price: $5.59 |
| 17 |
736-0407 |
Bell-Wash. .45" I.D. x 1" O.D. Price: $3.64 |
| 18 |
712-0378 |
Hex Nut 7/16-20 Thd. Price: $5.99 |
| 19 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 20 |
932-05125 |
DETENT SHAFT SPRING This part replaces 732-0863. Price: $3.66 |
| 21 |
741-0862 |
DETENT BALL .250 Price: $3.90 |
| 22 |
921-0378 |
Seal 1.0 Shaft This part replaces 784-0167. Price: $17.34 |
| 23 |
736-0163 |
Thrust Wash. 1.03" I.D. x 1.62" O.D. Price: $4.05 |
| 24 |
950-0570 |
Step Spacer This part replaces 750-0570. Price: $8.81 |
| 26 |
611-0021A |
TINE SHAFT ASSEMBLY W/18T This part replaces 611-0021. Price: $135.73 |
| 27 |
913-0226 |
Chain #50 5/8 Pitch x 52 Links - Endless This part replaces 713-0226. Price: $89.85 |
| 28 |
713-0233 |
Chain - #41 1/2" Pitch x 30 Links - Endless This part replaces 713-0223. Price: $36.15 |
| 29 |
686-0038 |
GEAR CASE HALF (RH) Not Available Price: |
| 30 |
936-0406 |
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. This part replaces 736-0406. Price: $5.94 |
| 31 |
917-0003 |
GEAR SPROCKET ASSEMBLY Not Available This part replaces 617-0002. Price: |
| 32 |
738-0884 |
JACK SHAFT Not Available Price: |
| 33 |
750-0931 |
SPACER Not Available Price: |
| 34 |
736-0302 |
FLAT WASHER .632 ID x .935 ODX.048 Not Available Price: |
| 35 |
917-1411 |
GEAR SPUR 10T Not Available This part replaces 717-1411. Price: |
| 36 |
950-0930 |
SPACER Not Available This part replaces 750-0930. Price: |
| 37 |
713-0436 |
SPROCKET Not Available Price: |
| 38 |
717-1405 |
REVERSE GEAR 46T Not Available Price: |
| 39 |
736-0518 |
Thrust Wash. .445" I.D. x 1.92" O.D. Price: $9.81 |
| 40 |
753-0869 |
Shifter Ass'y. Not Available This part replaces 618-0105. Price: |
| 41 |
717-1409 |
Spur Gear 17T Price: $19.26 |
| 42 |
736-05031 |
FLAT WASHER .67X 1.174X .02 This part replaces 736-0442. Price: $2.77 |
| 43 |
716-0234 |
RETAINING RING Not Available Price: |
| 44 |
718-0234 |
Clutch Collar Price: $48.19 |
| 45 |
916-0235 |
Retaining Ring .875" Shaft Not Available This part replaces 716-0235. Price: |
| 46 |
753-0661 |
KIT-DRIVE SHAFT Not Available This part replaces 711-0952. Price: |
| 47 |
713-0435 |
Sprocket 11T Price: $18.84 |
| 48 |
750-0928 |
NEUTRAL SPACER Not Available Price: |
| 49 |
717-1451A |
Spur Gear 16T This part replaces 717-1408. Price: $26.08 |
| 50 |
936-0336 |
FLAT WASHER This part replaces 736-0336. Price: $3.90 |
| 51 |
941-0600 |
BALL BEARING This part replaces 741-0124. Price: $23.34 |
| 52 |
736-00329 |
L-Wash. 1/4" I.D. Price: Call Us |
| 53 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg. Price: $3.63 |
| 54 |
736-0511 |
Fl-Wash. .635" I.D. x 1" O.D. Price: Call Us |
| 55 |
941-0563 |
BALL BEARING This part replaces 741-0563. Price: $33.84 |
| 56 |
736-0512 |
Fl-Wash. .281" I.D. x .875" O.D. Price: $3.74 |
| 57 |
686-0040 |
GEAR CASE ASS'Y. COMP. Not Available Price: |
