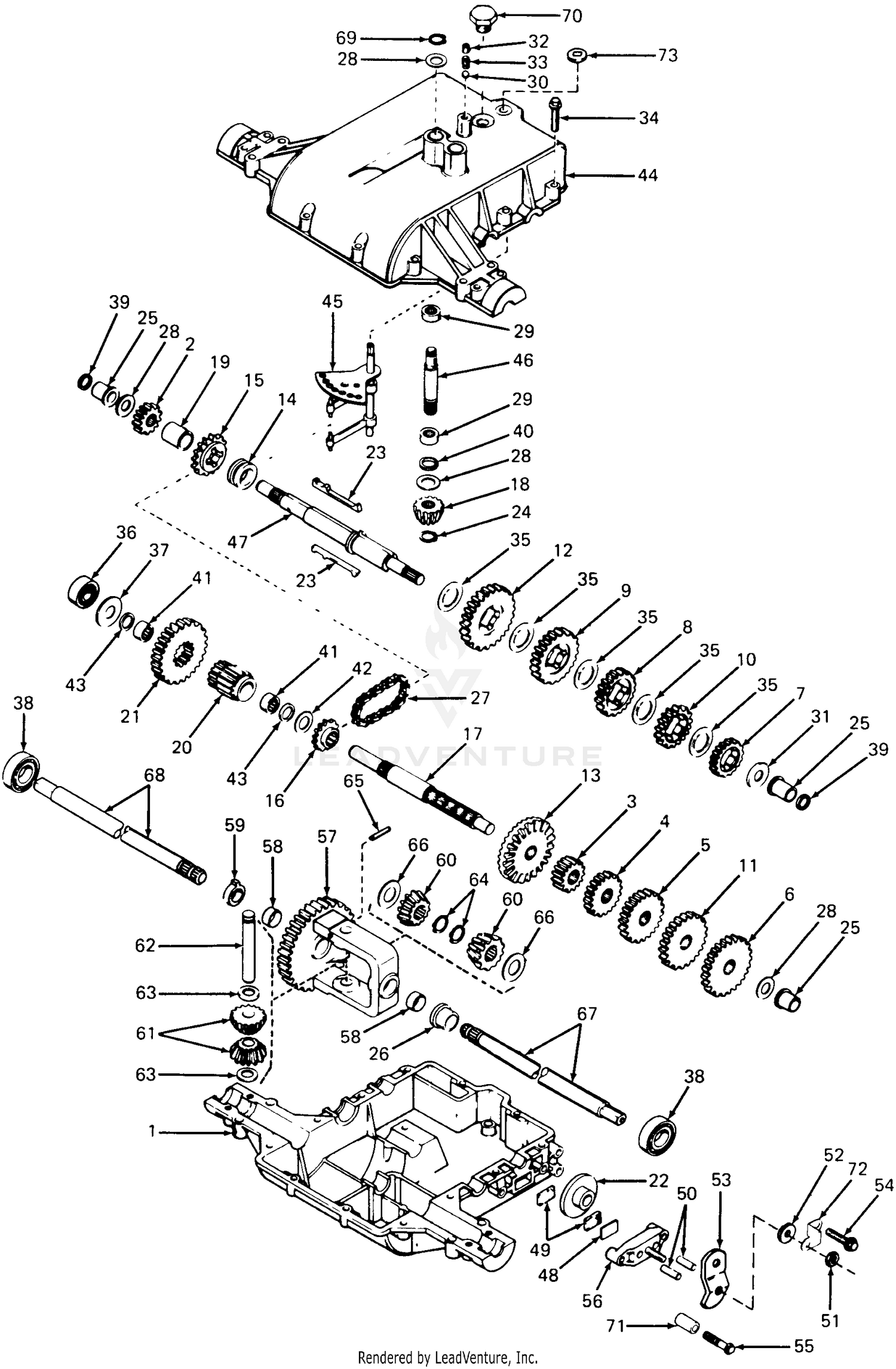

| Ref | Part Number | Description |
|---|
| 1 |
95-7503 |
DIFFERENTIAL ASM Price: $2,433.39 |
| 1 |
TC-770071A |
CASE-TRANS Not Available Price: |
| 2 |
106-1094 |
KIT - RING & PINION This part replaces 100-2555. Price: $1,064.67 |
| 2 |
532146682 |
SPRING,BRAKE RETURN Price: $5.99 |
| 2 |
TC-778136 |
SPUR GEAR (FIRST) Not Available Price: |
| 3 |
532123666 |
PULLEY TRANS Price: $39.99 |
| 3 |
95-7502 |
CASE-DIFFERENTIAL Price: $331.35 |
| 3 |
TC-778145 |
GEAR Not Available Price: |
| 4 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 4 |
99-7576 |
BOLT Price: $2.24 |
| 4 |
TC-778126A |
SPUR GEAR (20 TEET Not Available Price: |
| 5 |
3253-4 |
WASHER-LOCK This part replaces 99-7577. Price: $0.25 |
| 5 |
532121520 |
STRAP TORQUE Price: $6.99 |
| 5 |
TC-778127A |
SPUR GEAR (25 TEET Not Available Price: |
| 6 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 6 |
99-7578 |
SHAFT-DIFFERENTIAL Price: $18.78 |
| 6 |
TC-778129A |
SPUR GEAR Not Available Price: |
| 7 |
532162240 |
BRACKET T/A SADDLE SHIFT Price: $5.99 |
| 7 |
99-7579 |
PINION-DIFFERENTIAL Price: $139.92 |
| 7 |
TC-778121A |
SPUR GEAR-20T Not Available Price: |
| 8 |
532131679 |
ROD SHIFTER BLK Price: $34.99 |
| 8 |
99-7580 |
DISCONTINUED Price: Call Us |
| 8 |
TC-778123A |
SPUR GEAR (25 TEET Not Available Price: |
| 9 |
99-7581 |
GEAR-DIFFERENTIAL Price: $263.10 |
| 9 |
TC-778124A |
SPUR GEAR (30 TEET Not Available Price: |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 10 |
99-7583 |
WASHER-DIFFERENTIAL This part replaces 99-7582. Price: $17.91 |
| 10 |
TC-778122A |
SPUR GEAR (22 TEET Not Available Price: |
| 11 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 11 |
99-7588 |
PIN-SPRING Price: $0.75 |
| 11 |
TC-778128A |
SPUR GEAR (28 TEET Not Available Price: |
| 12 |
819151216 |
Washer 15/32 X 3/4 X 16 Ga Price: $2.45 |
| 12 |
99-7562 |
BEARING-BALL Price: $100.22 |
| 12 |
TC-778207A |
SPUR GEAR 37T Not Available This part replaces TC-778146A. Price: |
| 13 |
596136601 |
Bolts This part replaces 874550412. Price: $1.99 |
| 13 |
99-7585 |
SHIM 0.1 Price: $4.14 |
| 13 |
TC-778137A |
SPUR GEAR-42T Not Available Price: |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 14 |
TC-784266 |
COLLAR-SHIFT Not Available Price: |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 15 |
TC-786083 |
SPROCKET (18 TEET Not Available Price: |
| 16 |
TC-786082 |
SPROCKET (9 TEET Not Available Price: |
| 17 |
TC-776204 |
SHAFT Not Available Price: |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 18 |
TC-778113A |
BEVEL GEAR-INPUT Not Available Price: |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 19 |
TC-786074 |
SPACER Not Available Price: |
| 20 |
TC-778138 |
GEAR-OUTPU Not Available Price: |
| 21 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 21 |
TC-778139 |
GEAR-OUTPU Not Available Price: |
| 22 |
532130804 |
ROD BRAKE Price: $22.99 |
| 22 |
TC-790003 |
BRAKE-DISC Not Available Price: |
| 23 |
TC-792089B |
KEY Not Available This part replaces TC-792089A. Price: |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 24 |
TC-788040 |
E-RINGXT RET .521 Not Available Price: |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 25 |
TC-780105A |
FLANGED BUSHING Not Available Price: |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 26 |
TC-780118A |
BUSHING Not Available Price: |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 28 |
TC-780072 |
THRUST WASHER Not Available Price: |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 29 |
TC-780122 |
NEEDLE BEARING Not Available Price: |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 30 |
TC-792077A |
BALL-5/16 GRADE 20 Not Available This part replaces TC-792077. Price: |
| 31 |
532127275 |
KEEPER BELT LH Price: $3.99 |
| 31 |
TC-780109 |
THRUST WASHER Not Available Price: |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 32 |
TC-792078 |
SCREW Not Available Price: |
| 33 |
TC-792079 |
SPRING Not Available Price: |
| 34 |
532155071 |
SHAFT, FOOT PEDAL Price: $19.99 |
| 34 |
TC-792073A |
HEX SCREW HD TAP-1 Not Available This part replaces TC-792073. Price: |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 35 |
TC-780108 |
Washer, Thrust Not Available Price: |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 36 |
TC-780121 |
BEARING Not Available Price: |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 37 |
TC-780113 |
WASHER Not Available Price: |
| 38 |
532123674X |
Pulley Idler Flat Price: Call Us |
| 38 |
HG-44121P |
BEARING BALL Not Available This part replaces TC-780119. Price: |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 39 |
TC-788051A |
SEAL Not Available This part replaces TC-788051. Price: |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 40 |
TC-788057 |
O-RING Not Available Price: |
| 41 |
532165838 |
KEEPER.BELT.IDLER.FLAT This part replaces 532154777. Price: $4.99 |
| 41 |
TC-780112 |
BEARING Not Available Price: |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 42 |
TC-780114 |
FLAT WASHER Not Available Price: |
| 43 |
TC-788053 |
SEAL Not Available Price: |
| 44 |
TC-772082 |
COVER, TRANSAXLE Not Available Price: |
| 45 |
TC-784290 |
ROD&FORD-S Not Available Price: |
| 46 |
TC-776140 |
INPUT SHAFT Not Available Price: |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 47 |
TC-776184A |
SHAFT, BRAKE Not Available Price: |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 48 |
TC-790007 |
PLATE-BRAKE PAD Not Available Price: |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 49 |
TC-799021 |
BRAKE PAD KIT (1 PKG = 2 PADS ) This part replaces TC-790006. Price: $11.03 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 50 |
TC-786026 |
DOWEL PIN Not Available Price: |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 51 |
712-0237 |
Nut, Hex Center Lock, 5/16-24 This part replaces TC-792075. Price: $4.37 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 52 |
736-3078 |
Washer, Flat Price: $3.95 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 53 |
TC-790004 |
BRAKE LEVER Not Available Price: |
| 54 |
TC-792073A |
HEX SCREW HD TAP-1 Not Available This part replaces TC-792073. Price: |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 55 |
TC-792085A |
SCREW Not Available This part replaces TC-792085. Price: |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 56 |
TC-790025 |
HOLDER-BRAKE PAD Not Available Price: |
| 57 |
583271401 |
V-BELT.TRACTION.DRIVE.95.68 This part replaces 532160855. Price: $54.99 |
| 58 |
532127274 |
KEEPER Price: $3.99 |
| 58 |
TC-780064 |
BUSHING Not Available Price: |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $17.99 |
| 59 |
TC-780120 |
BUSHING Not Available Price: |
| 60 |
TC-778166 |
GEAR, BEVEL Not Available Price: |
| 61 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 61 |
TC-778131 |
BEVEL GEAR Not Available Price: |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 62 |
TC-786034 |
PIN-DRIVE Not Available Price: |
| 63 |
532140186 |
PULLEY.ENG.CL.MECH.SLVR.LT/YT Price: $99.99 |
| 63 |
TC-780065 |
WASHER Not Available Price: |
| 64 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 871170764. Price: $2.99 |
| 64 |
716-3001 |
Ring, Retaining Price: $3.96 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 65 |
TC-792040 |
ROLL PIN Not Available Price: |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 66 |
TC-780001 |
WASHER Not Available Price: |
| 67 |
TC-774716 |
AXLE-14 5/8 LONG Not Available Price: |
| 68 |
TC-774715 |
AXLE-12 3/ Not Available Price: |
| 69 |
TC-792035 |
Ring, Retaining Not Available Price: |
| 70 |
531165301 |
SERVICE KIT KEEPER BELT This part replaces 532134683. Price: $6.99 |
| 70 |
TC-792074 |
PLUG Not Available Price: |
| 71 |
TC-786066 |
SPACER Not Available Price: |
| 72 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 72 |
TC-786086 |
BRACKET-BRAKE LEVE Not Available Price: |
| 73 |
TC-792083 |
WASHER Not Available Price: |
| 74 |
532109502 |
SPACER LT Price: $4.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 112 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 116 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 148 |
532159103 |
GUIDE Price: $3.99 |
| 149 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 150 |
532150935 |
BUSHING NYLON COLLERED Price: $3.99 |
