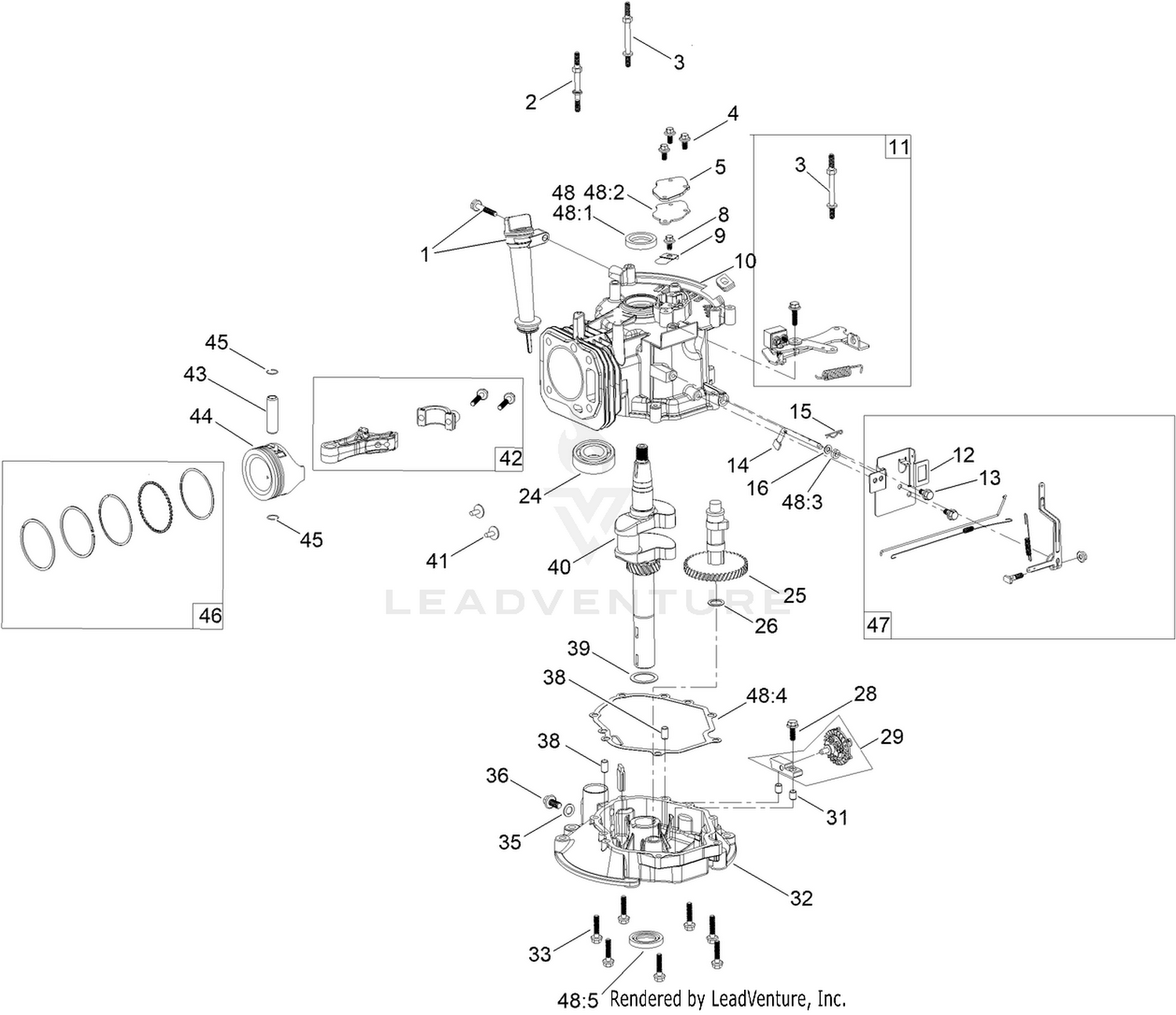

Crankcase Assembly
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-4279 | DIPSTICK AND FILL TUBE KIT Price: $16.99 |
| 2 | 121-0058 | BOLT-STUD Price: Call Us |
| 3 | 121-0059 | BOLT-STUD Price: Call Us |
| 4 | 121-0044 | SCREW-HHF Price: $1.19 |
| 5 | 121-0032 | COVER-PUMP, OIL Price: Call Us |
| 8 | 121-0041 | BOLT-FLANGE Price: Call Us |
| 9 | 120-4263 | VALVE-REED Price: $8.99 |
| 10 | 121-0371 | CRANKCASE Price: $109.99 |
| 11 | 119-1991 | BRAKE ASM RECOIL KIT Price: $39.99 |
| 12 | 121-0026 | CONTROL ASM Price: Call Us |
| 13 | 120-4216 | SCREW-HHF Price: $1.29 |
| 14 | 136-7865 | ARM-GOVERNOR Price: $3.39 |
| 15 | 120-4256 | PIN-HAIR Price: $1.19 |
| 16 | 136-7866 | WASHER-FLAT Price: $0.39 |
| 24 | 121-0056 | BEARING-BALL Price: $16.99 |
| 25 | 121-4174 | CAMSHAFT ASM Price: $20.99 |
| 26 | 121-0051 | WASHER-FLAT Price: $0.59 |
| 28 | 121-0007 | BOLT-FLANGE Price: $1.19 |
| 29 | 136-7903 | GOVERNOR GEAR ASM Price: $9.99 |
| 31 | 121-0055 | PIN-DOWEL Price: $1.39 |
| 32 | 121-0031 | COVER-CRANKCASE Price: Call Us |
| 33 | 121-0040 | BOLT-FLANGE Price: Call Us |
| 35 | 121-0048 | WASHER-PLAIN Price: $0.89 |
| 36 | 121-0030 | SCREW-HHF Price: $2.69 |
| 38 | 121-0054 | PIN-DOWEL Price: $1.39 |
| 39 | 136-7863 | WASHER-FLAT Price: $2.19 |
| 40 | 147-7105 | CRANKSHAFT ASM Price: Call Us |
| 41 | 120-4477 | TAPPET-VALVE Price: $4.09 |
| 42 | 120-4469 | CONNECTING ROD ASM Price: $27.99 |
| 43 | 120-4467 | PIN-PISTON Price: $3.39 |
| 44 | 121-4173 | PISTON Price: $22.99 |
| 45 | 121-0052 | CLIP-PIN, WRIST Price: $0.39 |
| 46 | 121-4171 | PISTON RING SET Price: $21.99 |
| 47 | 119-1968 | GOVERNOR ARM KIT Price: $24.99 |
| 48 | 127-9144 | SEAL AND GASKET KIT Price: $41.99 |
