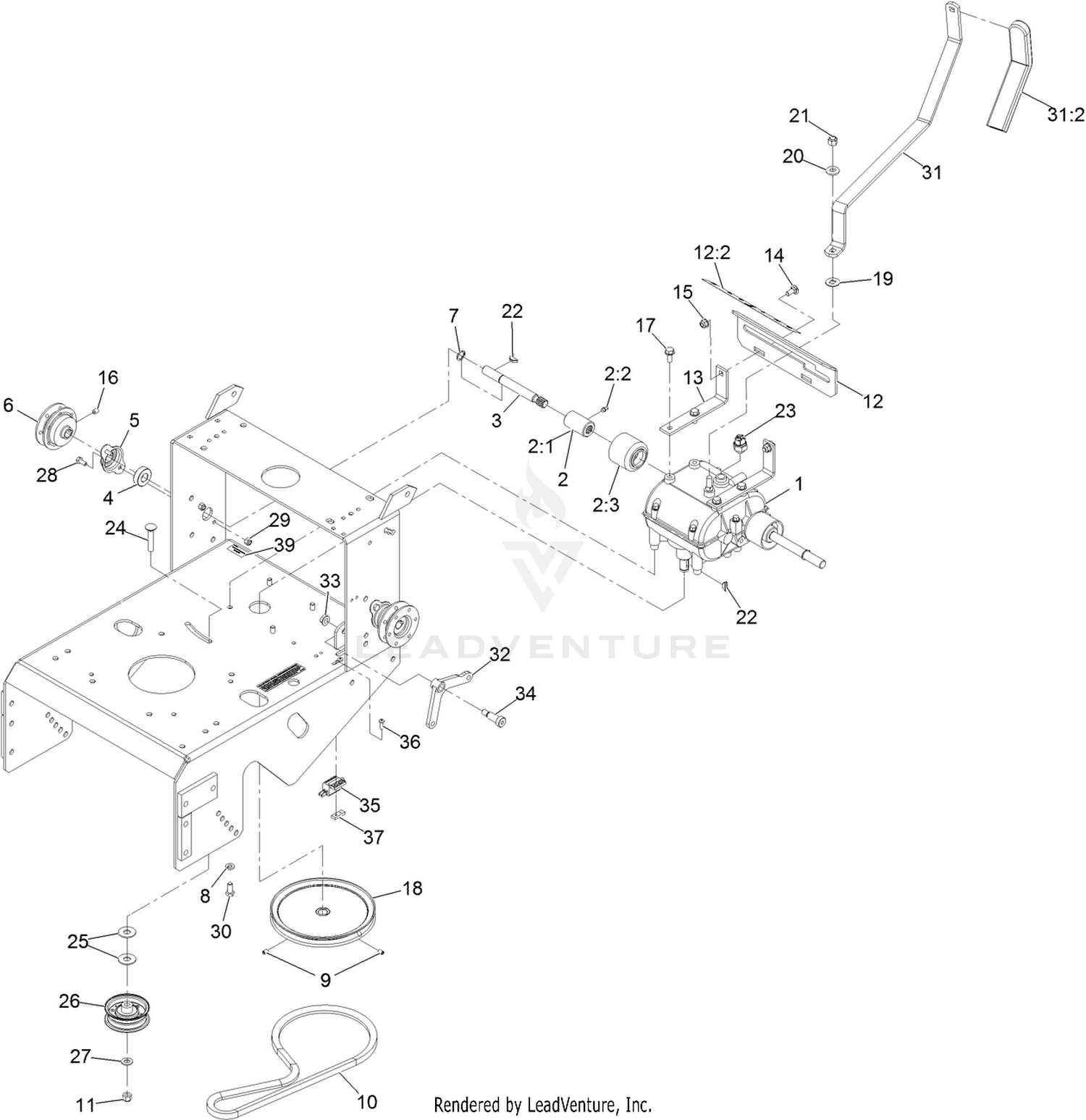

| Ref | Part Number | Description |
|---|
| 1 |
137-4105 |
TRANSMISSION-5 SPEED Price: $522.99 |
| 2 |
1-324340 |
ASM,COUPLER/ZERK Price: $55.99 |
| 3 |
1-323502 |
SHAFT-TRANSMISSION Price: $28.99 |
| 5 |
1-323254 |
FLANGE-OUTPUT Price: $9.99 |
| 7 |
32151-62 |
RING-RETAINING Price: $1.49 |
| 8 |
1-805005 |
WASHER-LOCK Price: $1.19 |
| 10 |
1-323280-SL |
BELT,TRANS DRIVE WITH SLEEVE This part replaces 1-323280. Price: $42.99 |
| 11 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 12 |
103-3498 |
PLATE,SHIFTER W/DECAL Price: $55.99 |
| 13 |
1-323389-03 |
BRACKET-PLATE, SHIFT Price: $28.99 |
| 14 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 15 |
104-8300 |
NUT-HF, NI Price: $0.89 |
| 17 |
32144-11 |
SCREW-THD ROLL, HWH Price: $7.09 |
| 19 |
1-323379 |
WASHER Price: $2.89 |
| 20 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 21 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 22 |
3257-5 |
KEY-WOODRUFF Price: $4.89 |
| 23 |
1-303282 |
SWITCH-START, NEUTRAL Price: $46.99 |
| 24 |
3231-6 |
SCREW-CARR Price: $2.69 |
| 25 |
3256-5 |
WASHER-FLAT Price: $0.29 |
| 26 |
130-8362 |
PULLEY-IDLER, FLAT Price: $48.99 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.59 |
| 28 |
321-3 |
SCREW-HH Price: $1.19 |
| 29 |
3296-42 |
NUT-LOCK, NI Price: $0.39 |
| 30 |
322-3 |
SCREW-HH Price: $0.79 |
| 31 |
103-1606 |
ASM,SHIFT LEVER Price: $51.99 |
| 32 |
1-303186 |
BELLCRANK Price: $55.99 |
| 33 |
3290-357 |
NUT-HHF, WHIZ Price: $0.79 |
| 34 |
1-603403 |
BOLT-SHOULDER Price: $15.99 |
| 35 |
1-513051 |
SWITCH-OPEN, NORMALLY Price: $17.99 |
| 36 |
3290-500 |
SCREW-PPH Price: $1.19 |
| 37 |
1-633181 |
PLATE-TAPPED Price: $6.09 |
