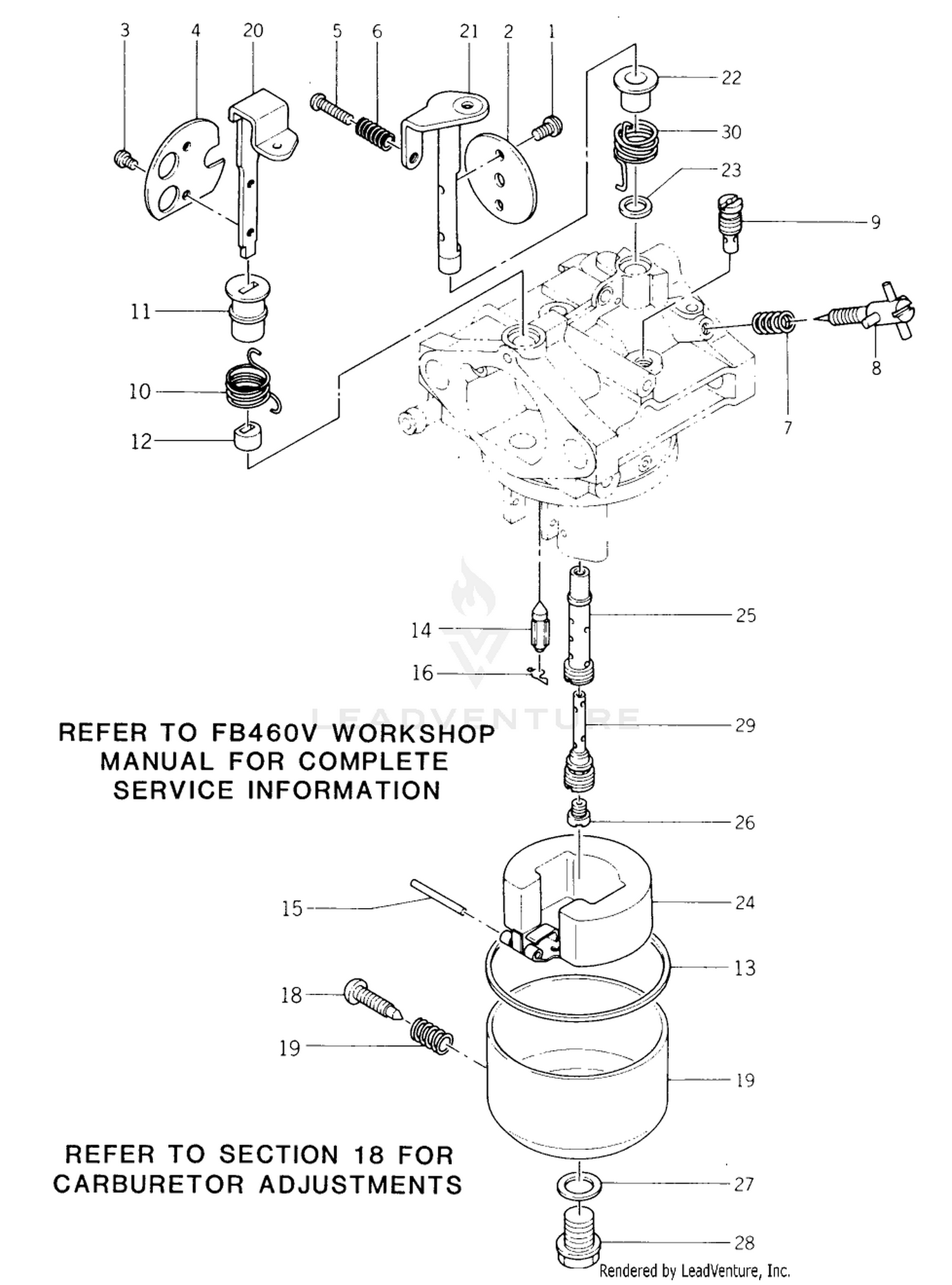

CARBURETOR
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 316550-6137A | Screw Price: Call Us |
| 2 | 16025-2101 | Throttle Valve (#120) Price: Call Us |
| 3 | 314572-6137A | Screw Price: Call Us |
| 4 | 16126-2015 | Choke Valve Price: Call Us |
| 5 | 92009-2079 | Screw Price: Call Us |
| 6 | 313650-6108-00 | Spring Price: Call Us |
| 7 | 312750-6116-00 | Spring Price: Call Us |
| 8 | 16014-2055 | Screw Price: Call Us |
| 9 | 316511-6112-00 | Pilot Jet (#62.5) Price: Call Us |
| 10 | 92081-2078 | Spring Price: Call Us |
| 11 | 90227-2026 | Ring Price: Call Us |
| 12 | 314598-6138A | Ring Price: Call Us |
| 13 | 313650-6128-00 | Gasket Price: Call Us |
| 14 | 16030-2067 | Valve-Float Price: Call Us |
| 15 | 314499-6127A | Pin Price: Call Us |
| 16 | 314595-6134A | Clip Price: Call Us |
| 17 | 16020-2005 | Float Chamber Assy (includes items 18 19) Price: Call Us |
| 18 | 315470-6133A | Screw Price: Call Us |
| 19 | 313122-6116-00 | Spring Price: Call Us |
| 20 | 16041-2010 | Shaft-Choke Price: Call Us |
| 21 | 16041-2009 | Shaft-Throttle Price: Call Us |
| 22 | 92027-2025 | Collar Price: Call Us |
| 23 | 316616-6206A | Seal Price: Call Us |
| 24 | 315801-6126A | Float Price: Call Us |
| 25 | 49121-2077 | Nozzle Price: Call Us |
| 26 | 92063-2010 | Jet Price: Call Us |
| 27 | 318190-6159-00 | Washer Price: Call Us |
| 28 | 314486-6143A | Bolt Price: Call Us |
| 29 | 49123-2016 | Pipe-Bleed Price: Call Us |
| 30 | 92081-2077 | Spring Price: Call Us |
