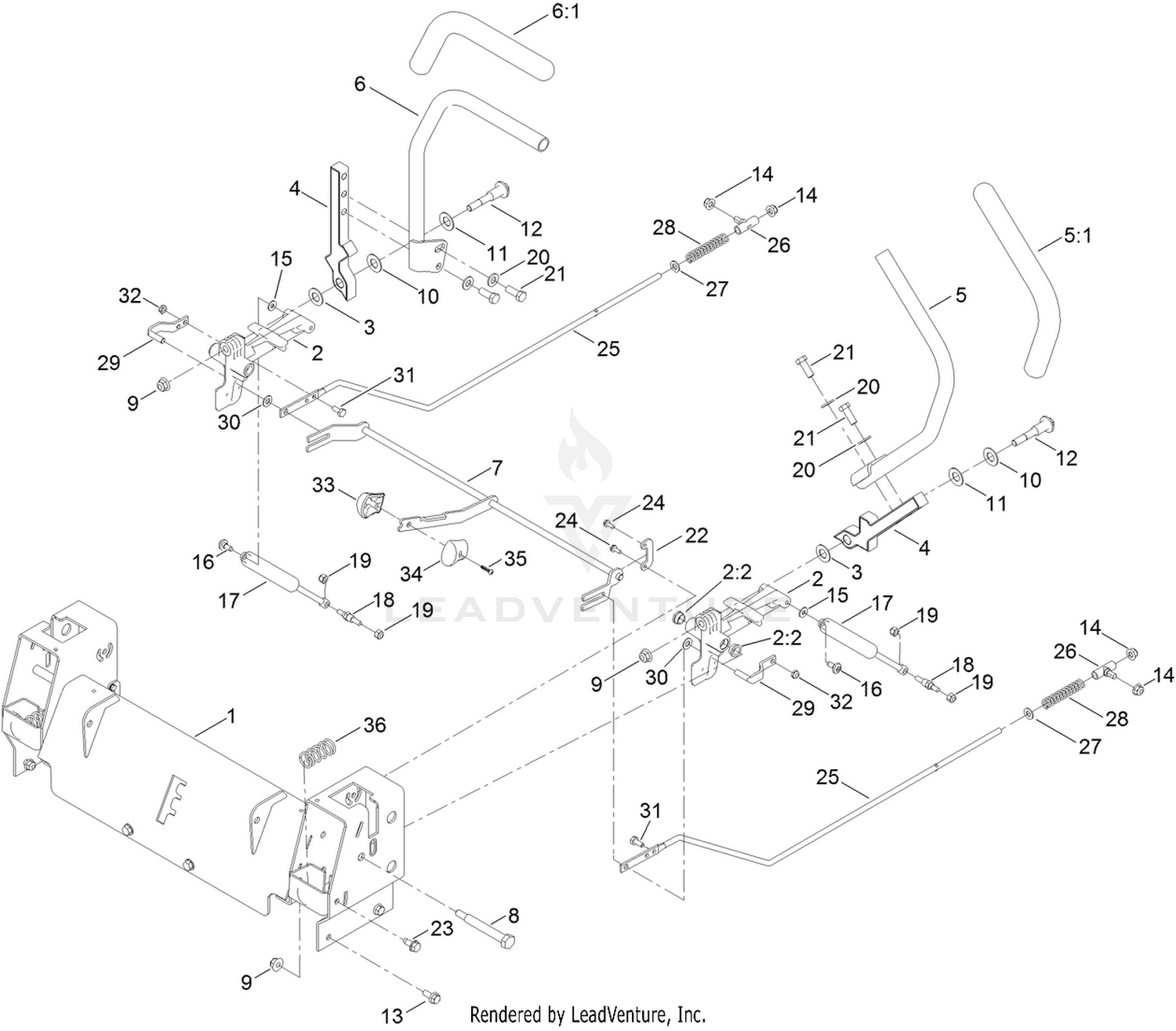

Motion Control Assembly
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-7038-03 | CONTROL BOX ASM Price: $107.28 |
| 2 | 119-3470 | ACTUATOR ARM ASM Price: $17.50 |
| 3 | 120-2273 | WASHER-NYLON Price: $1.54 |
| 4 | 133-9299-05 | ARM-CONTROL Price: $32.13 |
| 5 | 133-7055 | HANDLE-CONTROL, LH Price: $41.09 |
| 6 | 133-7057 | HANDLE-CONTROL, RH Price: $41.09 |
| 7 | 133-9301 | SPEED CONTROL ASM Price: $51.21 |
| 8 | 115-5099 | BOLT-PIVOT Price: $2.32 |
| 9 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 117-1240 | WASHER Price: $1.27 |
| 11 | 119-8925 | WASHER-BELLEVILLE Price: $0.80 |
| 12 | 117-1198 | BOLT-PIVOT Price: $2.01 |
| 13 | 3234-47 | SCREW-HHF Price: $1.79 |
| 14 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 15 | 119-8952 | WASHER Price: $0.77 |
| 16 | 120-7950 | SCREW-SHOULDER Price: $1.79 |
| 17 | 131-4132 | DAMPER Price: $43.77 |
| 18 | 110-6810 | STUD-DAMPER Price: $3.50 |
| 19 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 20 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 21 | 323-6 | SCREW-HH Price: $0.66 |
| 22 | 117-5385 | RETAINER Price: $0.81 |
| 23 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 24 | 32144-1 | SCREW-TAPTITE Price: $3.19 |
| 25 | 138-7217 | ROD-HYDRO Price: $8.29 |
| 26 | 138-7218 | MOUNT-ROD, HYDRO Price: $7.95 |
| 27 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 28 | 1-603807 | SPRING-RETURN, NEUTRAL Price: $3.29 |
| 29 | 121-1753 | PIN-ROD, HYDRO Price: $3.52 |
| 30 | 93-6079 | SPACER-NYLON Price: $0.25 |
| 31 | 321-3 | SCREW-HH Price: $0.28 |
| 32 | 3296-56 | NUT-LOCK, NI Price: $2.09 |
| 33 | 132-9368 | KNOB-RH Price: $1.63 |
| 34 | 132-9369 | KNOB-LH Price: $1.63 |
| 35 | 94-4496 | SCREW-PPH Price: $0.89 |
