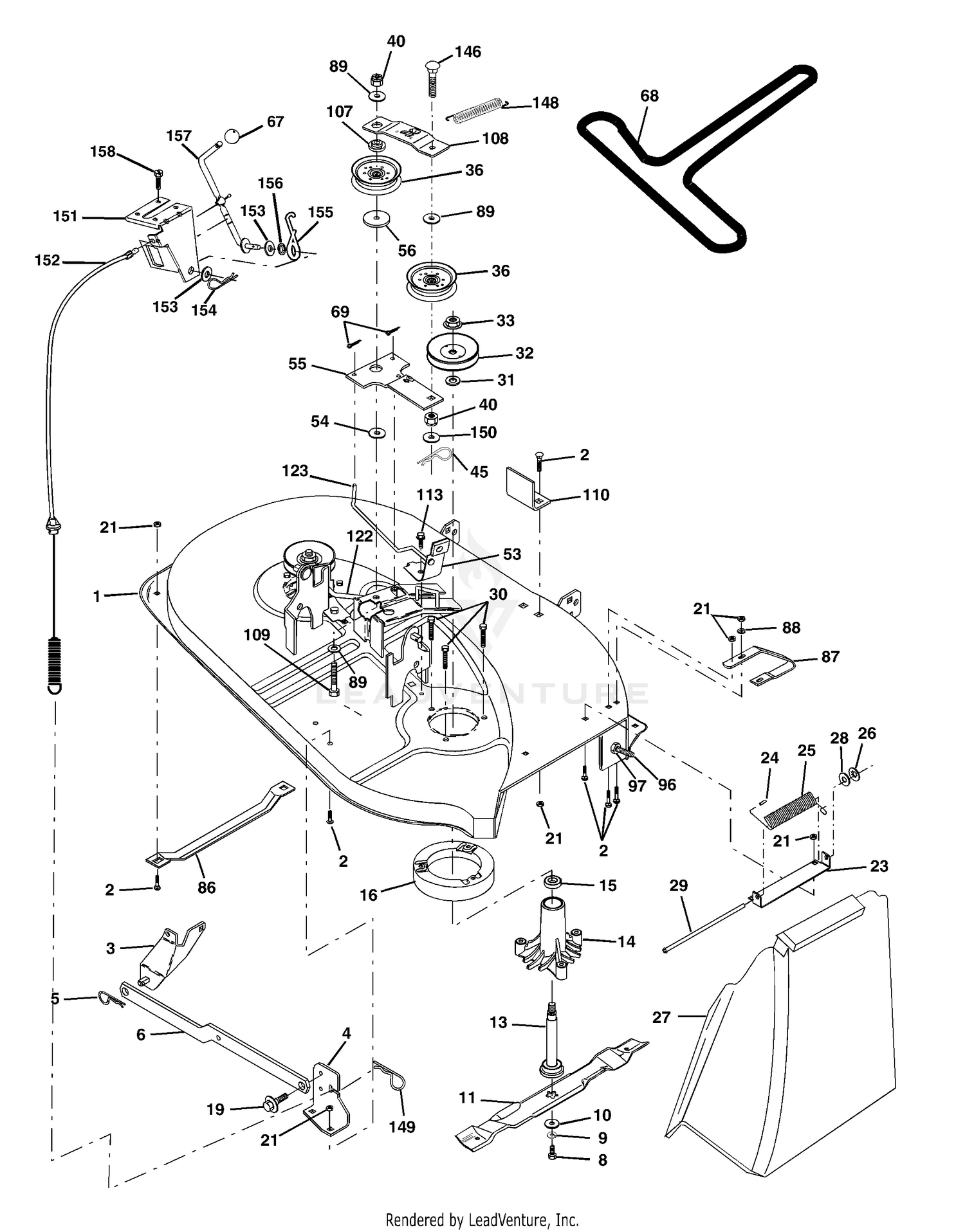

| Ref | Part Number | Description |
|---|
| 1 |
170280 |
Mower Housing Assembly Price: Call Us |
| 2 |
72140506 |
Bolt Carriage 5/16-18 x 3/4 Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar Price: Call Us |
| 4 |
169970 |
Bracket Deck Sway Bar 38"/42" Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Grade 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock 3/8 Price: Call Us |
| 010 |
105-3723 |
CAMSHAFT-FUEL Price: $424.59 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Vented Mower Deck Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 020 |
98-9382 |
BEARING-BALL Price: $23.27 |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
137607 |
Bracket, Mower Deflector Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
106736X428 |
Shield, Deflector Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 29 |
106735X |
Rod, Hinge Price: Call Us |
| 030 |
98-9383 |
DISCONTINUED Price: Call Us |
| 30 |
173984 |
Screw Thdrol. Price: Call Us |
| 31 |
129963 |
Washer, Spacer Price: Call Us |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 040 |
98-9669 |
GEAR-PUMP, INJECTION Price: $86.00 |
| 40 |
73680600 |
Nut, Crownlock 3/8-16 Unc Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 050 |
98-9590 |
NUT-CAP Price: $3.86 |
| 53 |
130840 |
Brake Assembly Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
133840 |
Idler Arm Assembly Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 060 |
98-9595 |
KEY-WOODRUFF Price: $2.04 |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
144200 |
V-Belt, 42" Mower Price: Call Us |
| 69 |
76020312 |
Pin, Cotter 3/32 x 3/4 Price: Call Us |
| 070 |
98-9511 |
STOPPER-FUEL, CAMSHAFT Price: $5.18 |
| 080 |
98-9350 |
BOLT Price: $0.98 |
| 86 |
7631J |
Runner, LH Price: Call Us |
| 87 |
128772 |
Runner, RH Price: Call Us |
| 88 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga Price: Call Us |
| 89 |
19131612 |
Washer 13/32 x 1 x 12 Ga. Price: Call Us |
| 090 |
105-3724 |
GOVERNOR SHAFT ASM Price: $822.46 |
| 96 |
74930620 |
Bolt 3/8-16 x 1-1/4 Mulcher Price: Call Us |
| 97 |
73930600 |
Nut Centerlock 3/8-16 Unc Price: Call Us |
| 100 |
105-3725 |
SHAFT-GOVERNOR Price: $47.55 |
| 107 |
133502 |
Spacer Retainer Price: Call Us |
| 108 |
133503 |
Stiffener, Idler Arm Price: Call Us |
| 109 |
74760640 |
Bolt, Hex Hd 3/8-16 x 2-1/2 Price: Call Us |
| 110 |
142587 |
Upstop Deck Front 38" Price: Call Us |
| 110 |
98-9562 |
HOLDER-GEAR, GOVERNOR Price: $61.49 |
| 113 |
17060512 |
Screw 5/16-1/ x 3/4 Price: Call Us |
| 120 |
98-9673 |
GEAR-GOVERNOR Price: $137.25 |
| 122 |
131289 |
Rod, Brake LH Price: Call Us |
| 123 |
169971 |
Rod, Brake RH Price: Call Us |
| 130 |
98-9561 |
HOLDER-WEIGHT, GOVERNOR Price: $23.68 |
| 140 |
98-9559 |
GOVERNOR WEIGHT ASM Price: $105.15 |
| 146 |
165891 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 150 |
98-9560 |
SHAFT-WEIGHT, GOVERNOR Price: $6.17 |
| 151 |
169670 |
Bracket Clutch Cable Price: Call Us |
| 152 |
172758 |
Clutch Cable 38"/46" Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention LVR CLTCH CAB Price: Call Us |
| 156 |
169672 |
Spacer Clutch Cable Price: Call Us |
| 157 |
169669 |
Rod Clutch Cable 3/8" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 160 |
98-9692 |
ROLLER Price: $11.45 |
| 170 |
98-9563 |
SLEEVE-GOVERNOR Price: $29.68 |
| 180 |
98-9564 |
WASHER-THRUST Price: $5.01 |
| 190 |
98-9381 |
BEARING-BALL Price: $21.66 |
| 200 |
98-9657 |
CIRCLIP-SHAFT, GOVERNOR Price: $4.48 |
