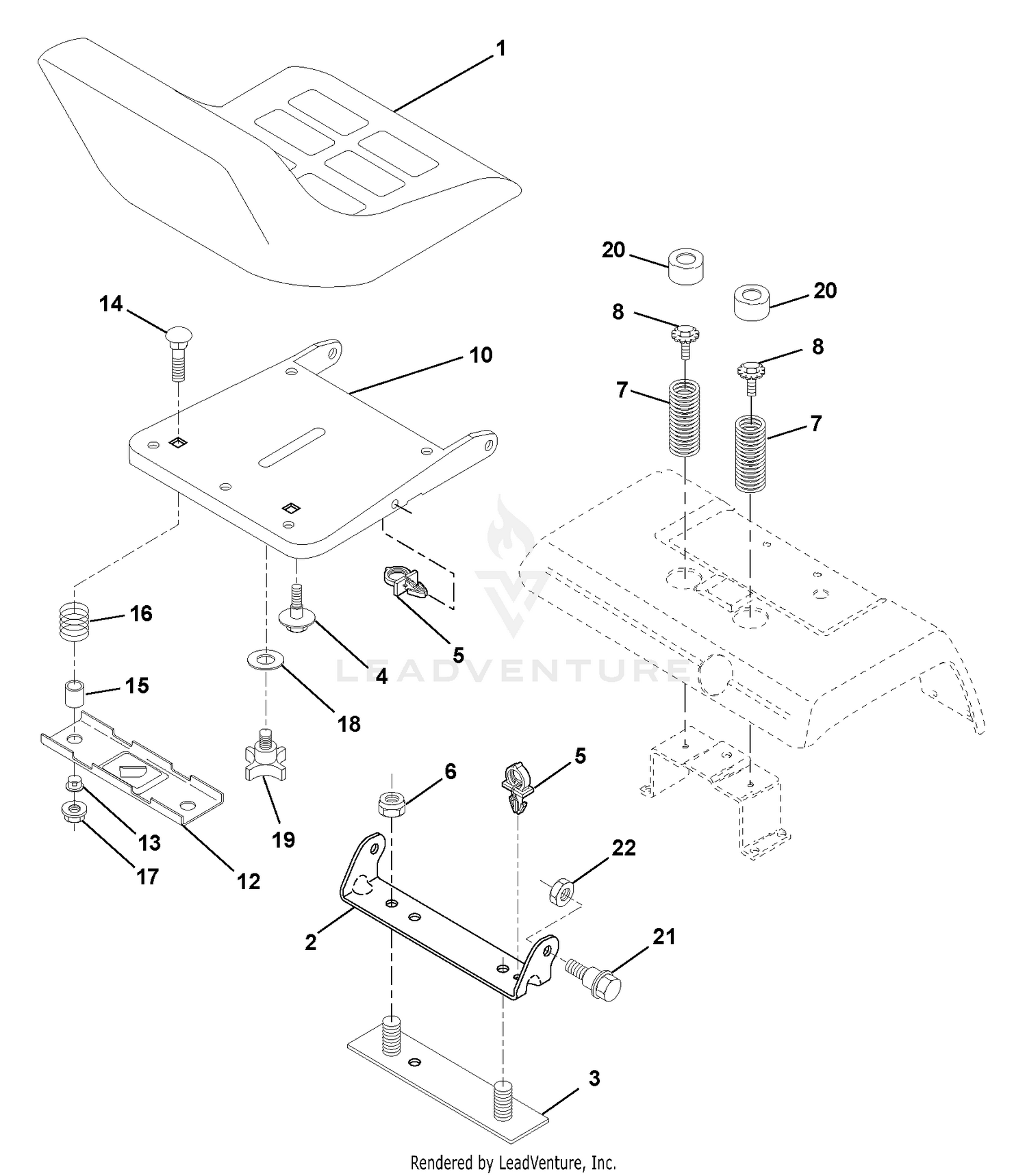

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532141525. Price: $219.99 |
| 1 |
86-9370-03 |
PANEL-INSTUMENT This part replaces 86-9370. Price: $80.85 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
85-7470 |
DECAL Price: $25.56 |
| 3 |
233-35 |
KNOB Price: $8.06 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 4 |
218-516 |
LENS Price: $11.36 |
| 4 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 5 |
3219-14 |
NUT-HEX Price: $0.25 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
38-1670 |
MTNG BRKT W/38-1660 Price: $16.06 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
38-1650 |
FUEL GAUGE Price: $185.83 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 532150176. Price: $4.99 |
| 9 |
218-539 |
DISCONTINUED Price: Call Us |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532140552. Price: $17.99 |
| 10 |
83-0820 |
GAUGE - AMMETER This part replaces 38-1660. Price: $76.09 |
| 11 |
67-8550 |
DISCONTINUED Price: Call Us |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 13 |
26-6740 |
TEMP RESET RELAY Price: $165.84 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
872050411 |
Bolt, Carriage 1/4-20 X 1-3/8 Price: $3.99 |
| 15 |
27-2360 |
SWITCH Price: $46.56 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 16 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 18 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 18 |
819171912 |
WASHER Price: $3.99 |
| 19 |
3217-6 |
NUT-HEX Price: $1.19 |
| 19 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 20 |
3255-5 |
WASHER-LOCK, EXT Price: $0.25 |
| 20 |
532124238 |
CAP SPRING Price: $4.99 |
| 21 |
3217-26 |
NUT-HEX Price: $0.25 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $2.99 |
| 22 |
218-515 |
BRACKET Price: $12.11 |
| 23 |
63-7590 |
RELAY Price: $78.15 |
| 24 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 25 |
3290-134 |
SCREW Price: $0.27 |
| 26 |
3290-360 |
SCREW-HH Price: $4.34 |
| 27 |
22-7810 |
SPACER Price: $16.90 |
| 28 |
119-2865 |
KIT-GM300 BUZZER, LOW OIL PRESSURE This part replaces 22-7820. Price: $135.43 |
| 29 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 30 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 31 |
67-8560 |
CABLE-CONTROL, THROTTLE Price: $72.13 |
| 32 |
3255-24 |
WASHER-LOCK / EXT Price: $0.25 |
