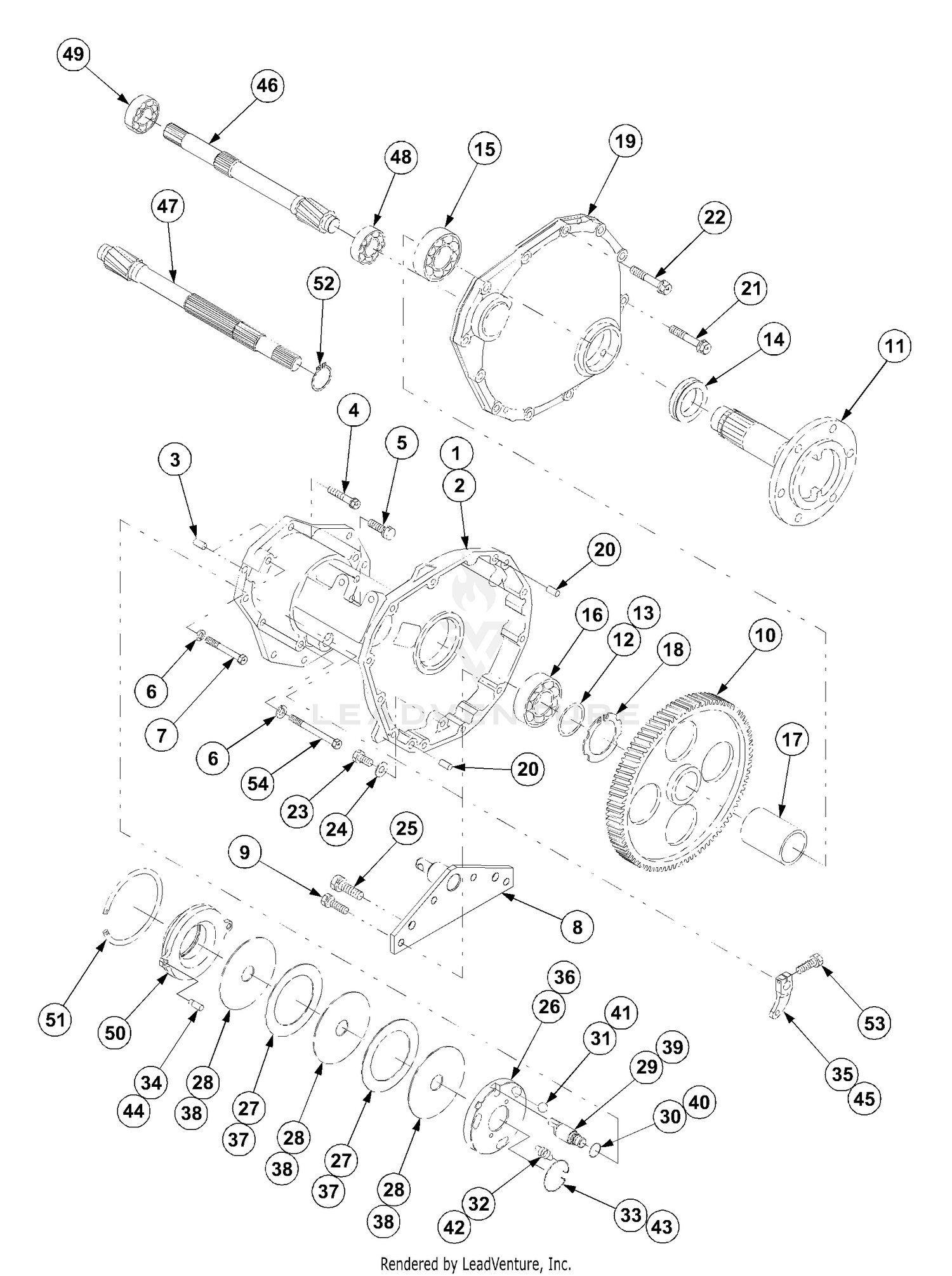

| Ref | Part Number | Description |
|---|
| 1 |
99-8346 |
GASKET Price: $1.43 |
| 1 |
MA-19561551AG1 |
AXLE HOUSING (LH) Not Available Price: |
| 2 |
98-9417 |
BOLT-JOINT, EYE Price: $12.10 |
| 2 |
MA-19561552AG1 |
AXLE HOUSING (RH) Not Available Price: |
| 3 |
115-4126 |
BOLT-JOINT, EYE This part replaces 98-9418. Price: $12.34 |
| 3 |
532430771 |
LOGO.HUSQ.GT.LT.CROWN.H This part replaces 532405012. Price: $5.99 |
| 3 |
MA-05401010020 |
PIN Not Available Price: |
| 4 |
98-9419 |
OIL PIPE ASM Price: $64.29 |
| 4 |
MA-F1540110040 |
BOLT W/WASHER Not Available Price: |
| 5 |
108-4422 |
GASKET This part replaces 98-9435. Price: $1.48 |
| 5 |
532438964 |
SUBASM.DASH.UPPER.W/BUMPER This part replaces 532407592. Price: $49.99 |
| 5 |
MA-F1540112045 |
BOLT W/WASHER Not Available Price: |
| 6 |
138-1238 |
KIT-PIPE, OIL This part replaces 98-9461. Price: $212.76 |
| 6 |
MA-A3600101002 |
WASHER,SPRING Not Available Price: |
| 7 |
98-7568 |
BOLT Price: $0.84 |
| 7 |
MA-A0540110060 |
BOLT Not Available Price: |
| 8 |
98-9591 |
PIN-BAND Price: $6.96 |
| 8 |
MA-19571576AG1 |
BRACKET-HITCH STABLIZ Not Available This part replaces MA-19571576AG0. Price: |
| 9 |
98-9601 |
CLAMP-PIPE Price: $6.61 |
| 9 |
MA-F1540110030 |
BOLT W/WASHER Not Available Price: |
| 10 |
98-9714 |
CLAMP-HOSE Price: $2.66 |
| 10 |
MA-19571565000 |
GEAR-BULL 95T Not Available Price: |
| 11 |
98-9721 |
PIPE-OIL Price: $14.77 |
| 11 |
MA-19561568AG1 |
REAR SHAFTAXLE Not Available Price: |
| 12 |
98-9723 |
HOLDER ASM Price: $154.38 |
| 12 |
MA-07300005202 |
LINER Not Available Price: |
| 13 |
98-9724 |
PIPE-COOLER, OIL Price: $31.43 |
| 13 |
MA-07300005206 |
LINER Not Available Price: |
| 14 |
532441267 |
HOOD.HUSQVARNA.LT.ORANGE This part replaces 532411073. Price: $79.99 |
| 14 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 14 |
MA-10381515000 |
OIL SEAL REAR AXL Not Available Price: |
| 15 |
532406664 |
LENS.HUSQVARNA LT.LH This part replaces 532411079. Price: $14.99 |
| 15 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 15 |
MA-07500062100 |
BEARING NSK 6210 Not Available Price: |
| 16 |
98-9727 |
COLLAR Price: $9.86 |
| 16 |
MA-07500063080 |
BALL BEARING Not Available Price: |
| 17 |
104-5157 |
OIL COOLER SERVICE KIT This part replaces 98-9728. Price: $1,236.62 |
| 17 |
MA-19561571001 |
COLLAR-REA Not Available Price: |
| 18 |
532439421 |
ASM.GRILLE HUSQVARNA.LT.498 This part replaces 532406667. Price: $129.99 |
| 18 |
98-9729 |
O-RING Price: $6.27 |
| 18 |
MA-07400004801 |
RING, SNAP Not Available This part replaces MA-07400104801. Price: |
| 19 |
99-8383 |
OIL PIPE ASM Price: $63.74 |
| 19 |
MA-19561554AG0 |
COVER-REAR AXLE HS Not Available Price: |
| 20 |
MA-05401010020 |
PIN Not Available Price: |
| 21 |
MA-F1540110040 |
BOLT W/WASHER Not Available Price: |
| 22 |
MA-F1540110045 |
BOLT W/WASHER Not Available Price: |
| 23 |
MA-10221733000 |
BOLT Not Available Price: |
| 24 |
MA-08331001000 |
SEAL, WASHER Not Available Price: |
| 25 |
532406663 |
LENS.HUSQVARNA LT.RH This part replaces 532411078. Price: $14.99 |
| 25 |
MA-F1540112035 |
BOLT,W/SPRING WASH Not Available Price: |
| 26 |
MA-10441556100 |
PLATE (LH) B Not Available Price: |
| 27 |
MA-10391501200 |
PLATE-MATING Not Available Price: |
| 28 |
MA-10381501300 |
BRAKE DISK PLATE Not Available Price: |
| 29 |
MA-10441556400 |
BRAKE SHAFT CAM Not Available Price: |
| 30 |
MA-08300100160 |
O-RING Not Available Price: |
| 31 |
MA-10321501400 |
STEEL BALL Not Available Price: |
| 32 |
MA-10321501500 |
SPRING-RETURN BRAKES Not Available Price: |
| 33 |
MA-10441556900 |
RETAINING RING Not Available Price: |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 34 |
MA-10441556800 |
PIN-BRAKE Not Available Price: |
| 35 |
MA-10441509AG0 |
ARM-BRAKE Not Available Price: |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 36 |
MA-10441557100 |
PLATE (RH) B Not Available Price: |
| 37 |
532441266 |
FENDER.TLT.FS.W/CUPHLD.ORANGE This part replaces 532416307. Price: $179.99 |
| 37 |
MA-10391501200 |
PLATE-MATING Not Available Price: |
| 38 |
MA-10381501300 |
BRAKE DISK PLATE Not Available Price: |
| 39 |
MA-10441556400 |
BRAKE SHAFT CAM Not Available Price: |
| 40 |
MA-08300100160 |
O-RING Not Available Price: |
| 41 |
MA-10321501400 |
STEEL BALL Not Available Price: |
| 42 |
MA-10321501500 |
SPRING-RETURN BRAKES Not Available Price: |
| 43 |
MA-10441556900 |
RETAINING RING Not Available Price: |
| 44 |
MA-10441556800 |
PIN-BRAKE Not Available Price: |
| 45 |
MA-10441509AG0 |
ARM-BRAKE Not Available Price: |
| 46 |
MA-19571561000 |
SHAFT (LH) D Not Available Price: |
| 47 |
MA-19571562000 |
SHAFT (LH) D Not Available Price: |
| 48 |
MA-07520663050 |
BEARING Not Available Price: |
| 49 |
MA-07520662060 |
BEARING Not Available Price: |
| 50 |
MA-10441558000 |
HOLDER-BRA Not Available Price: |
| 51 |
MA-10441517000 |
RING-RETAI Not Available Price: |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 52 |
MA-07400003000 |
RING-"C" Not Available This part replaces MA-07400103000. Price: |
| 53 |
MA-F1440106025 |
BOLT W/WASHER Not Available Price: |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 138 |
532439747 |
HOLDER.CUP.LT.GREY This part replaces 532402954. Price: $4.99 |
| 150 |
532406662 |
AIR DUCT Price: $24.99 |
| 151 |
532407807 |
BRACKET PIVOT Price: $27.99 |
| 152 |
531169901 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532199535. Price: $19.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 175 |
532199472 |
CROSSMEMBER Price: $24.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 180 |
579841501 |
KITS.CHASSIS.WELD.SERVICE This part replaces 532195457. Price: $219.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532407176 |
DASH.LOWER.PREDATOR LT Price: $69.99 |
| 183 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532406665 |
INSERT REFLECTIVE Price: $6.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532439976 |
PLUG.TEX.DASH.SVC.MINDER.GREY This part replaces 532411115. Price: $4.99 |
| 196 |
547634701 |
CONSOLE.DECKLIFT.GREY.PKG.KIT This part replaces 532414580. Price: $17.99 |
| 202 |
532406671 |
VENT SIDE HOOD This part replaces 532411074. Price: $8.99 |
| 203 |
532406670 |
VENT SIDE HOOD This part replaces 532411075. Price: $5.99 |
| 204 |
532441375 |
SUBASM.TOP.VENT.HUSQ.LT This part replaces 532411116. Price: $17.99 |
| 205 |
532406668 |
SKIRT.SIDE.HUSQVARNA.LT.RH.GRE This part replaces 532411076. Price: $11.99 |
| 206 |
532441345 |
SKIRT.SIDE.HUSQVARNA.LT.LEFT This part replaces 532411077. Price: $11.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 230 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 238 |
532407881 |
TRIM.HUSQ LT.668 This part replaces 532411119. Price: $19.99 |
| 239 |
532404883 |
IS ITO Price: $5.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
