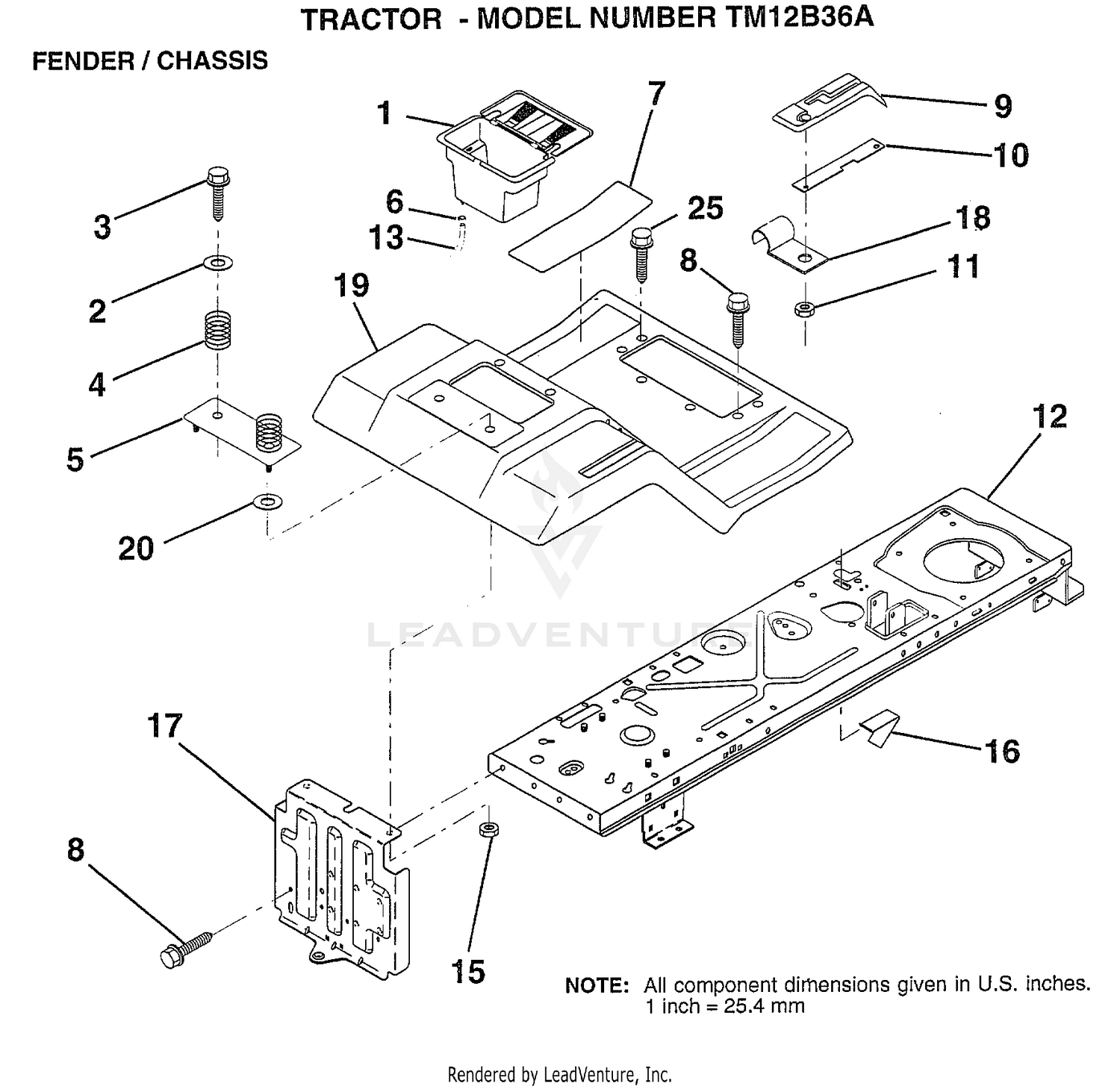

| Ref | Part Number | Description |
|---|
| 2 |
19132012 |
WASHER Price: Call Us |
| 2 |
3220-2 |
NUT-JAM Price: $0.50 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 4 |
124181X |
SPRING COMPRESSIO Price: Call Us |
| 4 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 5 |
127115X505 |
BTRY FENDER PLATE Price: Call Us |
| 6 |
109596X |
HOSE CLAMP T Price: Call Us |
| 6 |
94-3027 |
WASHER-SEAL Price: $32.38 |
| 7 |
124144X |
PAD FOOTREST Price: Call Us |
| 7 |
3274-81 |
SCREW-HSH Price: $0.74 |
| 8 |
105-9851 |
ROTATING KIT Price: $1,864.08 |
| 8 |
17490512 |
SCREW Price: Call Us |
| 9 |
105-4572 |
SERVO PISTON ASM Price: $640.29 |
| 10 |
139783 |
PLATE LOCK SHIFT Price: Call Us |
| 10 |
94-3032 |
FOLLOWER-PISTON This part replaces 105-9852. Price: $574.71 |
| 11 |
105-9853 |
PLATE-COVER Price: $142.29 |
| 11 |
124346X |
NUT Price: Call Us |
| 12 |
145190 |
CHASSIS.WELD.ASM. Price: Call Us |
| 13 |
109238X |
TUBE T Price: Call Us |
| 15 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 16 |
141736 |
SUB= 146613 Price: Call Us |
| 17 |
105-9853 |
PLATE-COVER This part replaces 94-3034. Price: $142.29 |
| 17 |
140782 |
DRAWBAR ASM LR Price: Call Us |
| 18 |
94-3026 |
CAMPLATE ASM Price: $1,164.81 |
| 19 |
140955X505 |
FENDER/FOOT MS505 Price: Call Us |
| 19 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 20 |
19091413 |
WASHER Price: Call Us |
| 20 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 21 |
105-2857 |
VALVE-RELIEF Price: $1,042.90 |
| 22 |
105-2857 |
VALVE-RELIEF Price: $1,042.90 |
| 23 |
323-45 |
SCREW-HH Price: $0.68 |
| 26 |
3274-59 |
SCREW-HSH Price: $1.15 |
| 27 |
105-9854 |
PLATE-VALVE Price: $441.04 |
| 28 |
105-9855 |
HOUSING ASM Price: $1,494.14 |
| 29 |
105-9856 |
BACKPLATE ASM Price: $1,111.73 |
| 31 |
105-2861 |
SHAFT-DRIVE Price: $431.22 |
| 34 |
3217-5 |
NUT-HEX Price: $0.25 |
| 36 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 37 |
60-6240 |
WASHER This part replaces 94-3007. Price: $15.20 |
| 43 |
105-3331 |
SEAL-SHAFT Price: $35.63 |
| 47 |
94-3031 |
ARM-CONTROL Price: $32.40 |
| 48 |
93-6306 |
CONTROL ASM Price: $1,822.55 |
| 51 |
105-2909 |
ORIFICE-CONTROL, .036 DIA Price: $20.39 |
| 52 |
94-3041 |
ORIFICE-CONTROL (.028 DIA) Price: $26.81 |
| 57 |
105-2864 |
VALVE-BYPASS Price: $126.09 |
| 60 |
94-3030 |
WASHER Price: $6.24 |
| 61 |
3256-77 |
WASHER-FLAT Price: $1.60 |
