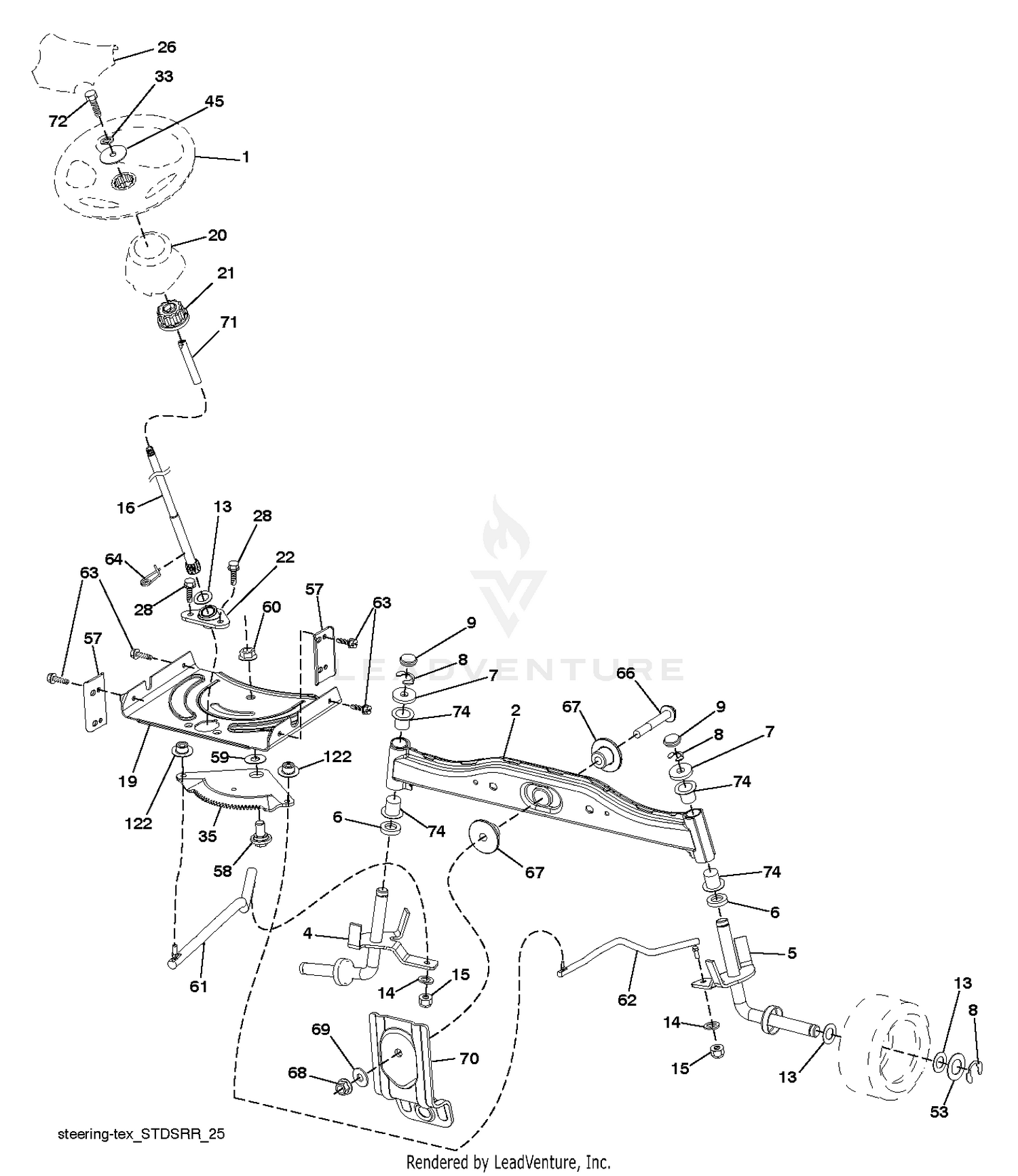

| Ref | Part Number | Description |
|---|
| 1 |
532424146 |
WHEEL.STEERING.STDSRR.BLK/OV Price: $56.99 |
| 1 |
99-8344 |
CYLINDER HEAD ASM Price: $1,792.58 |
| 2 |
532418168 |
AXLE HALF ASM-WELDED Price: $33.99 |
| 2 |
98-9479 |
BOLT-HEAD, CYLINDER Price: $14.42 |
| 3 |
98-9613 |
GASKET-HEAD, CYLINDER Price: $177.34 |
| 4 |
532403087 |
SPINDLE.WELDED.LH.15"TEX Price: $22.99 |
| 4 |
98-7509 |
O-RING Price: $4.31 |
| 5 |
532403088 |
SPINDLE.WELDED.RH.15"T Price: $22.99 |
| 5 |
98-9647 |
BOLT-HEAD, CYLINDER Price: $15.60 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
532121748 |
WASHER Price: $1.99 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
532121232 |
CAP.SPINDLE Price: $1.99 |
| 13 |
532121749 |
WASHER Price: $1.99 |
| 14 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.49 |
| 16 |
532429373 |
SHAFT.STEER.3/4.PLATED.TEX Price: $41.99 |
| 19 |
532194729 |
PLATE.STEER.DDL.NLT/NG Price: $12.99 |
| 20 |
532409763 |
BOOT.STEERING.PREDATOR.LT.BLAC Price: $4.99 |
| 21 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99 |
| 22 |
532420537 |
STEERING.SUPT.LOWER. Price: $4.99 |
| 26 |
532424147 |
CAP.WHL.STRNG.STDSRRD.SRS.BLK Price: $4.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 33 |
810040500 |
LOCKWASHER Price: $2.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $19.99 |
| 45 |
819113812 |
WASHER.11/32 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $2.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $4.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $3.99 |
| 60 |
873971000 |
NUT FLANGE LOCK 5/8-11 Price: $2.99 |
| 61 |
532194740 |
DRAGLINK.LH.BALLSTUD.D Price: $40.99 |
| 62 |
532194741 |
DRAGLINK.RH.BALLSTUD.D Price: $40.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $2.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $2.99 |
| 67 |
532194737 |
BUSHING.PM.FRONT AXLE Price: $3.69 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $2.99 |
| 70 |
532196197 |
BRKT.DECK.SUSPENSION.F Price: $13.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $9.99 |
| 72 |
532428982 |
BOLT 5/16-18 X 4 W/PATCH Price: $2.99 |
| 74 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
