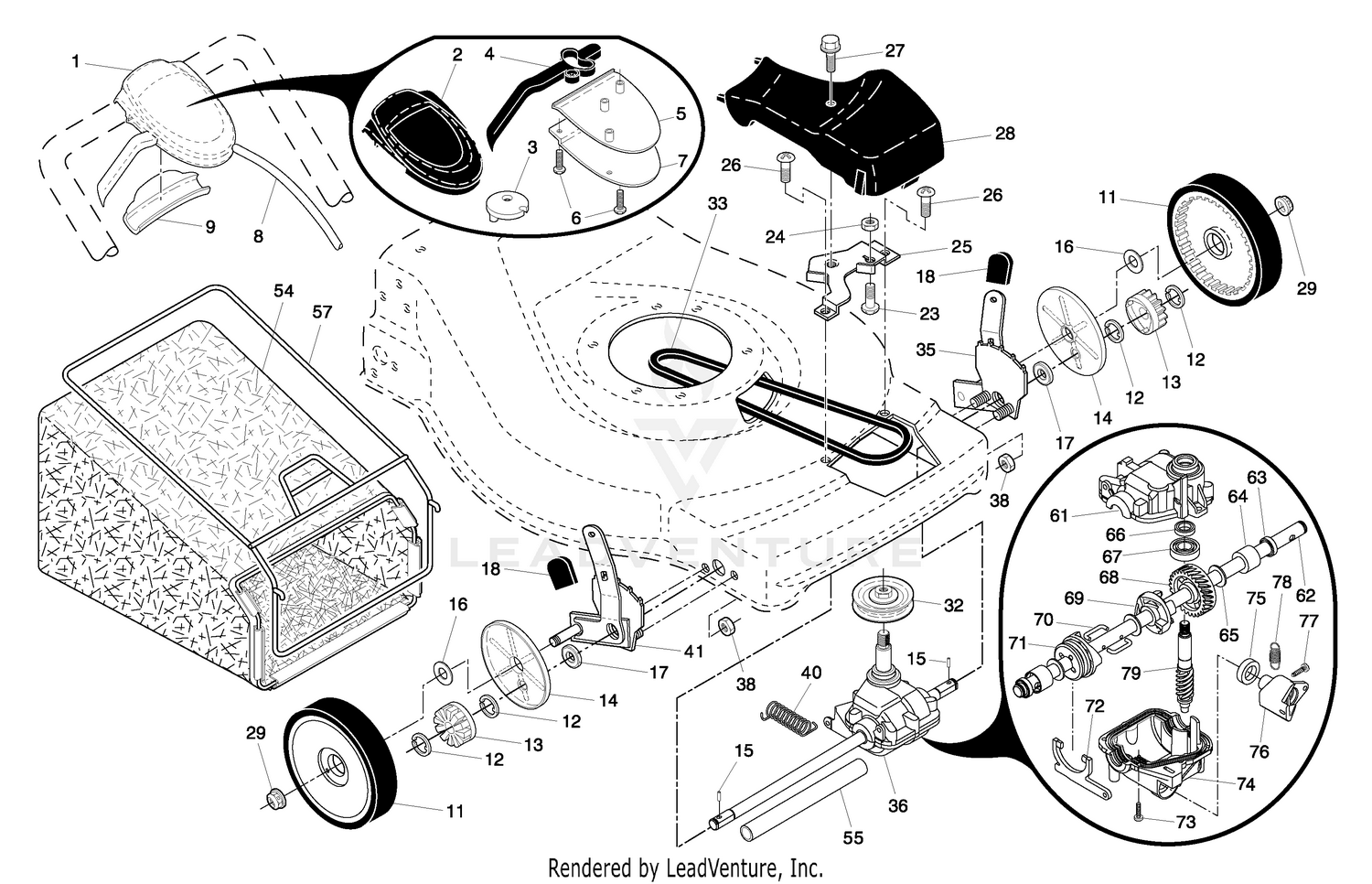

| Ref | Part Number | Description |
|---|
| 1 |
33104-040 |
SCREW-HHF Price: $1.36 |
| 2 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195761. Price: $29.99 |
| 2 |
93-5547 |
BUSHING-NYLON Price: $6.15 |
| 3 |
3290-488 |
DISCONTINUED Price: Call Us |
| 3 |
532187353 |
PULLEY.CAM.DRIVE.CONTROL.HV Price: $6.99 |
| 4 |
233-37 |
KNOB Price: $31.99 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 5 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 5 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195762. Price: $29.99 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 6 |
93-5270 |
SWITCH-PTO Price: $201.01 |
| 7 |
27-2360 |
SWITCH Price: $46.56 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 8 |
218-447 |
WASHER-LOCK Price: $3.79 |
| 8 |
532197195 |
CABLE ASM Price: $44.99 |
| 9 |
218-446 |
NUT-HEX Price: $6.09 |
| 9 |
532186297 |
EZ WALK SNAP COVER PLATE Price: $5.99 |
| 10 |
62-7770 |
KEY-IGNITION Price: $4.39 |
| 11 |
581009202 |
WHEEL.8X1.75.5SPK.RAD.3.GREY This part replaces 532400543. Price: $19.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD This part replaces 532750003. Price: $5.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 14 |
93-5481 |
CLUSTER-LIGHT, WARNING Price: $112.98 |
| 15 |
532404845 |
PAWL, DRIVE This part replaces 532191017. Price: $4.99 |
| 15 |
93-5478 |
CLUSTER-WARNING LIGHT Price: $162.98 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 16 |
76-9060 |
GAUGE-TEMPERATURE Price: $110.89 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 17 |
93-5425 |
DECAL-CONTROL, DL Price: $47.04 |
| 18 |
43-6280 |
DISCONTINUED Price: Call Us |
| 18 |
532196401 |
KNOB.DELUXE.GRAY Price: $3.99 |
| 19 |
43-6420 |
BEZEL Price: $57.54 |
| 20 |
93-5518 |
WIRE HARNESS Price: $1,226.66 |
| 21 |
93-5376-03 |
PLATE-CONTROL, DSL This part replaces 93-5376. Price: $18.07 |
| 22 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 23 |
218-498 |
NUT-LOCK Price: $0.68 |
| 23 |
532088652 |
HINGE SCREW Price: $3.99 |
| 24 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 24 |
72-9760 |
SWITCH Price: $179.11 |
| 25 |
532197386 |
BRKT.CABLE/BELT.GUARD. Price: $6.99 |
| 25 |
66-2940 |
GAUGE-FUEL Price: $178.34 |
| 26 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 26 |
532192325 |
SCREW.HEX.WSH Price: $4.99 |
| 27 |
3255-20 |
WASHER-LOCK Price: $0.25 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
3217-25 |
NUT-HEX Price: $0.25 |
| 28 |
532432666 |
COVER.DR.ASM.194407X498.CE This part replaces 532197370. Price: $17.99 |
| 29 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 30 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 31 |
3219-14 |
NUT-HEX Price: $0.25 |
| 32 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 33 |
532196857 |
BELT.DRIVE.FG Price: $14.99 |
| 33 |
93-5350 |
CABLE-THROTTLE Price: $45.20 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 35 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 36 |
532191636 |
TRANSMISSION.22.FWGD Price: $79.99 |
| 36 |
93-5476 |
SWITCH-CARLING Price: $85.47 |
| 37 |
93-5373 |
LEVER-THROTTLE Price: $43.26 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 38 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 39 |
2412-21 |
DISCONTINUED Price: Call Us |
| 40 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 40 |
532192849 |
SPRING RETURN Price: $4.99 |
| 41 |
3290-134 |
SCREW Price: $0.27 |
| 42 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 43 |
3290-313 |
SCREW-SPH Price: $6.09 |
| 44 |
111332 |
SWITCH Price: $10.99 |
| 45 |
115-5357-03 |
BRACKET-JOYSTICK This part replaces 93-5510. Price: $35.61 |
| 46 |
3290-354 |
NUT-SPEED Price: $9.99 |
| 47 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 48 |
93-5512 |
SPACER Price: $3.80 |
| 49 |
105-8289 |
SPRING-TORSION This part replaces 93-5509. Price: $15.05 |
| 50 |
93-5515-03 |
LEVER ASM This part replaces 93-5515. Price: $177.00 |
| 54 |
532401963 |
GRASS.BAG.BLACK.GENERIC This part replaces 532401189. Price: $44.99 |
| 55 |
532086012 |
DRV SHAFT TUBE PM Price: $5.46 |
| 57 |
532189680 |
FRAME.GBAG.EZ.EMPTY Price: $59.99 |
| 61 |
532196886 |
GEARCASE.HOUSING Price: $12.99 |
| 62 |
532191636 |
TRANSMISSION.22.FWGD This part replaces 532197057. Price: $79.99 |
| 63 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 64 |
532183511 |
BUSHING Price: $4.99 |
| 65 |
532183509 |
WASHER Price: $3.99 |
| 66 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 67 |
532183506 |
BEARING Price: $5.99 |
| 68 |
532183499 |
GEAR.27.TEETH.WALK.MOWER Price: $14.99 |
| 69 |
532196884 |
CLUTCH Price: $3.99 |
| 70 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 71 |
532196883 |
CLUTCH Price: $4.99 |
| 72 |
532196882 |
FORK Price: $5.99 |
| 73 |
532183513 |
SCREW Price: $3.99 |
| 74 |
532196881 |
GEARCASE.HOUSING.LOWER Price: $12.99 |
| 75 |
532196880 |
SEAL Price: $4.99 |
| 76 |
532196879 |
LEVER Price: $5.99 |
| 77 |
532196878 |
SCREW.LEVER. Price: $6.99 |
| 78 |
532196877 |
SPRING. Price: $4.99 |
