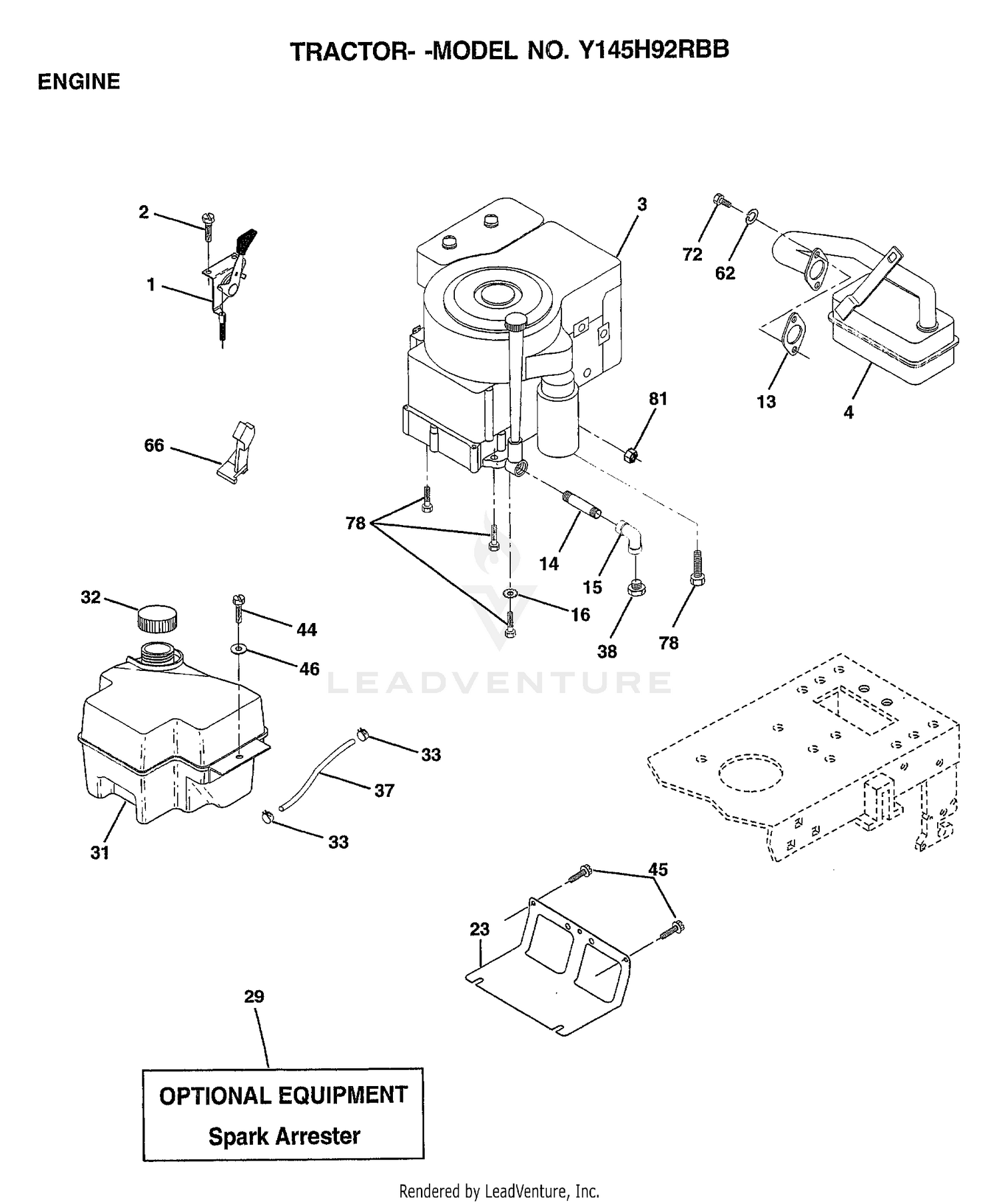

ENGINE

ENGINE

Parts (35)

RefPart NumberDescription
1 141359 CONTROL.THTL.23.5 Price: Call Us
1 83-7470 SHIM Price: $8.86
2 17720410 SCREW LT Price: Call Us
2 99-6976 DRIVESHAFT Price: $1,202.84
3 SUPPLIER CHECK WITH SUPPLIER Price: Call Us
4 137352 MUFFLER Price: Call Us
4 32151-87 RING-RETAINING Price: $1.22
5 71-4590 WASHER-THRUST Price: $3.32
6 3253-3 WASHER-LOCK Price: $0.31
13 165291 SUB= 272293 Price: Call Us
14 13280324 PIPE NIPPLE Price: Call Us
14 83-4970-03 BRACKET-BEARING Price: $95.44
15 13200300 ELBOW Price: Call Us
15 3296-29 NUT-LOCK, NI Price: $2.09
16 11050600 LOCKWASHER Price: Call Us
16 322-8 SCREW-HH Price: $1.26
17 76-2460 BEARING ASM Price: $67.16
18 33114-025 SCREW-HH This part replaces 48-9460. Price: $0.70
19 3253-4 WASHER-LOCK This part replaces 42-9850. Price: $0.25
20 33094-00 WASHER-PLAIN This part replaces 48-8030. Price: $0.25
21 3274-34 SCREW-HSFH Price: $3.73
22 3230-3 SCREW-CARR Price: $0.53
23 169837 SHIELD BROWNING Price: Call Us
29 137180 SUB= 532137180 Price: Call Us
31 161911 TANK.FUEL.FRONT. Price: Call Us
32 140527 CAP ASM FUEL Price: Call Us
33 123487X HOSE CLAMP Price: Call Us
37 137040 LINE FUEL Price: Call Us
38 SUPPLIER CHECK WITH SUPPLIER Price: Call Us
44 17670412 SCREW Price: Call Us
45 17000612 SCREW Price: Call Us
46 19091416 WASHER Price: Call Us
62 10040500 LOCKWASHER Price: Call Us
72 71070512 SCREW Price: Call Us
78 17060620 SCREW Price: Call Us
