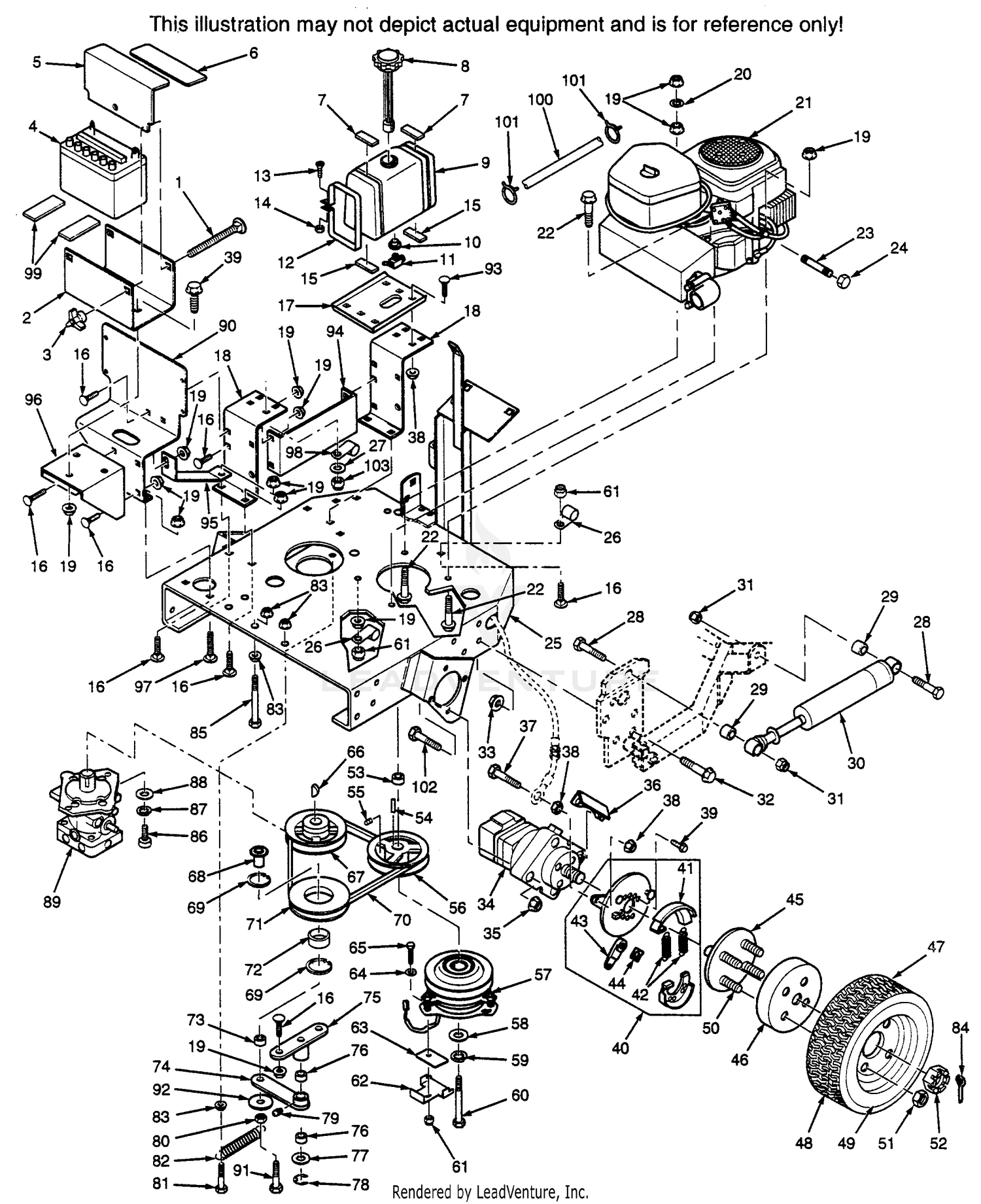

| Ref | Part Number | Description |
|---|
| 1 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 2 |
423308 |
Battery Box This part replaces 42802. Price: Call Us |
| 3 |
04029-01 |
NUT, WING 1/4-20 Price: Call Us |
| 4 |
48015 |
BATTERY Price: Call Us |
| 5 |
42392 |
BATTERY COVER Price: Call Us |
| 6 |
48099 |
INSULATION, BATTERY COVER Price: Call Us |
| 7 |
48292 |
PAD, FUEL TANK STRAP Price: Call Us |
| 8 |
483787 |
FUEL CAP W/GAUGE This part replaces 48658. Price: Call Us |
| 9 |
46846 |
Fuel Tank Assy. This part replaces 46174. Price: Call Us |
| 10 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 11 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 12 |
421239 |
STRAP, FUEL TANK Price: Call Us |
| 13 |
04010-10 |
PHIL RDHD MACHINE SCREW 1/4-20 X 2 Price: Call Us |
| 14 |
04020-02 |
HEX NUT, 1/4-20 Price: Call Us |
| 15 |
48205 |
PAD, FUEL TANK SUPPORT Price: Call Us |
| 16 |
04003-12 |
CARRIAGE BOLT, 5/16-18 X 3/4 Price: Call Us |
| 17 |
42377 |
SUPPORT, FUEL TANK Price: Call Us |
| 18 |
421522 |
BRACKET, FUEL TANK SUPPORT Price: Call Us |
| 19 |
04019-03 |
SERR. FL. HEX NUT 5/16-18 Price: Call Us |
| 20 |
04031-09 |
LOCKWASHER, 5/16 INT. TOOTH Price: Call Us |
| 21 |
48836 |
ENGINE, 20 HP KOHLER CV Price: Call Us |
| 21 |
48837 |
ENGINE, 22 HP KOHLER CV Price: Call Us |
| 22 |
04017-20 |
SERR. FL. HEX HEAD CPSCR, 5/16-18 X 1 3/4 Price: Call Us |
| 23 |
48402-02 |
OIL DRAIN EXTENSION Price: Call Us |
| 24 |
48257 |
CAP, PLUG Price: Call Us |
| 25 |
45586 |
ENGINE DECK Price: Call Us |
| 26 |
48030-09 |
WIRE LOOM, .50 I.D. Price: Call Us |
| 28 |
04001-72 |
BOLT, HEX HEAD 1/2-13 X 2 Price: Call Us |
| 29 |
43041 |
SLEEVE, SHOCK ABSORBER MOUNT Price: Call Us |
| 30 |
48516 |
SHOCK ABSORBER Price: Call Us |
| 31 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP 1/2-13 Price: Call Us |
| 32 |
04017-42 |
SERR. FL. HEX HEAD CPSCR, 7/16-14 X 1 Price: Call Us |
| 33 |
04019-05 |
SERR. FL. HEX NUT, 7/16-14 Price: Call Us |
| 34 |
48769 |
MOTOR - WHITE(INCLUDES ITEM 52) Price: Call Us |
| 35 |
04019-06 |
SERR. FL. HEX NUT, 1/2-13 Price: Call Us |
| 36 |
421289 |
ANCHOR, BRAKE Price: Call Us |
| 37 |
04001-59 |
BOLT, HEX HEAD 1/4-20 X 1-1/4 Price: Call Us |
| 38 |
04019-02 |
SERR. FL. HEX NUT, 1/4-20 Price: Call Us |
| 39 |
04017-16 |
SERR. FL. HEX HEAD CPSCR, 5/16-18 X 3/4 Price: Call Us |
| 40 |
48461 |
PARKING BRAKE ASSEMBLY Price: Call Us |
| 41 |
48461-02 |
BRAKE PADS-PAIR Price: Call Us |
| 42 |
48461-03 |
SPRINGS - PAIR Price: Call Us |
| 43 |
48461-04 |
ACTUATING ARM,(INCL. PIN & CLIP) Price: Call Us |
| 44 |
48461-05 |
CLIP Price: Call Us |
| 45 |
46929 |
Hub Assembly This part replaces 46332. Price: Call Us |
| 46 |
48513 |
BRAKE DRUM Price: Call Us |
| 47 |
48933 |
RIM AND TIRE ASSEMBLY(INCLUDES ITEMS 48,49) Price: Call Us |
| 48 |
48933-02 |
TIRE 20 X 10 X 10, 4 PLY Price: Call Us |
| 49 |
48416-04 |
RIM ONLY Price: Call Us |
| 50 |
04008-01 |
BOLT, HUB Price: Call Us |
| 51 |
04028-01 |
WHEEL NUT Price: Call Us |
| 52 |
48680 |
CASTLE NUT, 1.0-20 UNEF Price: Call Us |
| 52 |
48813 |
SPRING LOCKNUT Price: Call Us |
| 53 |
43261 |
SPACER, CLUTCH Price: Call Us |
| 54 |
04063-06 |
KEY, 1/4 X 1/4 X 1-1/2 Price: Call Us |
| 55 |
04012-04 |
HEX SOCKET SET SCREW, 5/16-18 X 3/8 Price: Call Us |
| 56 |
48792 |
PULLEY, ENGINE PUMP DRIVE(INCL. 55) Price: Call Us |
| 57 |
461074 |
CLUTCH ASSEMBLY This part replaces 48786. Price: Call Us |
| 58 |
04041-18 |
FLATWASHER, 7/16(.469 X 1.50 X .25) Price: Call Us |
| 59 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 60 |
04001-93 |
BOLT, HEX HEAD 7/16-20 X 3 Price: Call Us |
| 61 |
04021-10 |
HEX LOCKNUT, ELASTIC STOP 5/16-18 Price: Call Us |
| 62 |
421564 |
BACKING PLATE, CLUTCH STOP Price: Call Us |
| 63 |
48814 |
RUBBER PAD, CLUTCH STOP Price: Call Us |
| 64 |
04040-15 |
FLATWASHER, 5/16(.375 X .875 X .083) Price: Call Us |
| 65 |
04001-10 |
BOLT, HEX HEAD 5/16-18 X 1-1/4 Price: Call Us |
| 66 |
04063-12 |
KEY, WOODRUFF 3/16 X 5/8 Price: Call Us |
| 67 |
48581 |
PULLEY, PUMP INPUT Price: Call Us |
| 68 |
43117 |
SLEEVE, IDLER Price: Call Us |
| 70 |
48854 |
BELT, PUMP DRIVE Price: Call Us |
| 71 |
46370 |
PULLEY, IDLER-TRACTION DRIVE(INCL.68,69,72) Price: Call Us |
| 72 |
48102 |
BEARING, IDLER PULLEY Price: Call Us |
| 73 |
43063 |
SPACER, IDLER Price: Call Us |
| 74 |
46327 |
PUMP IDLER ARM(INCLUDES ITEMS 76,79) Price: Call Us |
| 75 |
45037 |
IDLER PIVOT BASE Price: Call Us |
| 76 |
48100-05 |
BUSHING, OILLUBE Price: Call Us |
| 77 |
04041-08S |
FLATWASHER, 3/4 Price: Call Us |
| 79 |
48114-04 |
GREASE FITTING Price: Call Us |
| 80 |
04020-12 |
Nut, Jam 3/8-16 Price: Call Us |
| 81 |
04001-62 |
BOLT, HEX HEAD 3/8-16 X 3-1/4 Price: Call Us |
| 82 |
48929 |
SPRING, PUMP DRIVE IDLER Price: Call Us |
| 83 |
04019-04 |
SERR. FL. HEX NUT, 3/8-16 Price: Call Us |
| 84 |
04061-04 |
COTTER PIN, 5/32 X 1.50 Price: Call Us |
| 85 |
04001-47 |
BOLT, HEX HEAD 3/8-16 X 5 Price: Call Us |
| 86 |
04015-03 |
SOCKET HEAD CPSCR, 1/2-13 X 1-1/4 Price: Call Us |
| 87 |
04030-06 |
LOCKWASHER, 1/2 Price: Call Us |
| 88 |
04041-04 |
FLATWASHER, 1/2(.516 X .938 X .05) Price: Call Us |
| 90 |
421520 |
BRACKET, OIL TANK SUPPORT Price: Call Us |
| 91 |
04001-21 |
BOLT, HEX HEAD 3/8-16 X 1-3/4 Price: Call Us |
| 92 |
04041-10 |
WASHER 2" OD, 3/8 ID, 16 GA. Price: Call Us |
| 93 |
04003-02 |
CARRIAGE BOLT, 1/4-20 X 3/4 Price: Call Us |
| 94 |
421523 |
GUARD, PULLEY Price: Call Us |
| 95 |
421521 |
GUSSET, BATTERY BOX Price: Call Us |
| 96 |
421705 |
Support, Battery Box This part replaces 421519. Price: Call Us |
| 98 |
48030-10 |
WIRE LOOM, .75 I.D. Price: Call Us |
| 99 |
48661 |
RUBBER PAD Price: Call Us |
| 100 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058-15. Price: Call Us |
| 101 |
48059-01 |
CLAMP, FUEL HOSE Price: Call Us |
| 102 |
04001-52 |
BOLT, 1/2-13 X 2.50" Price: Call Us |
