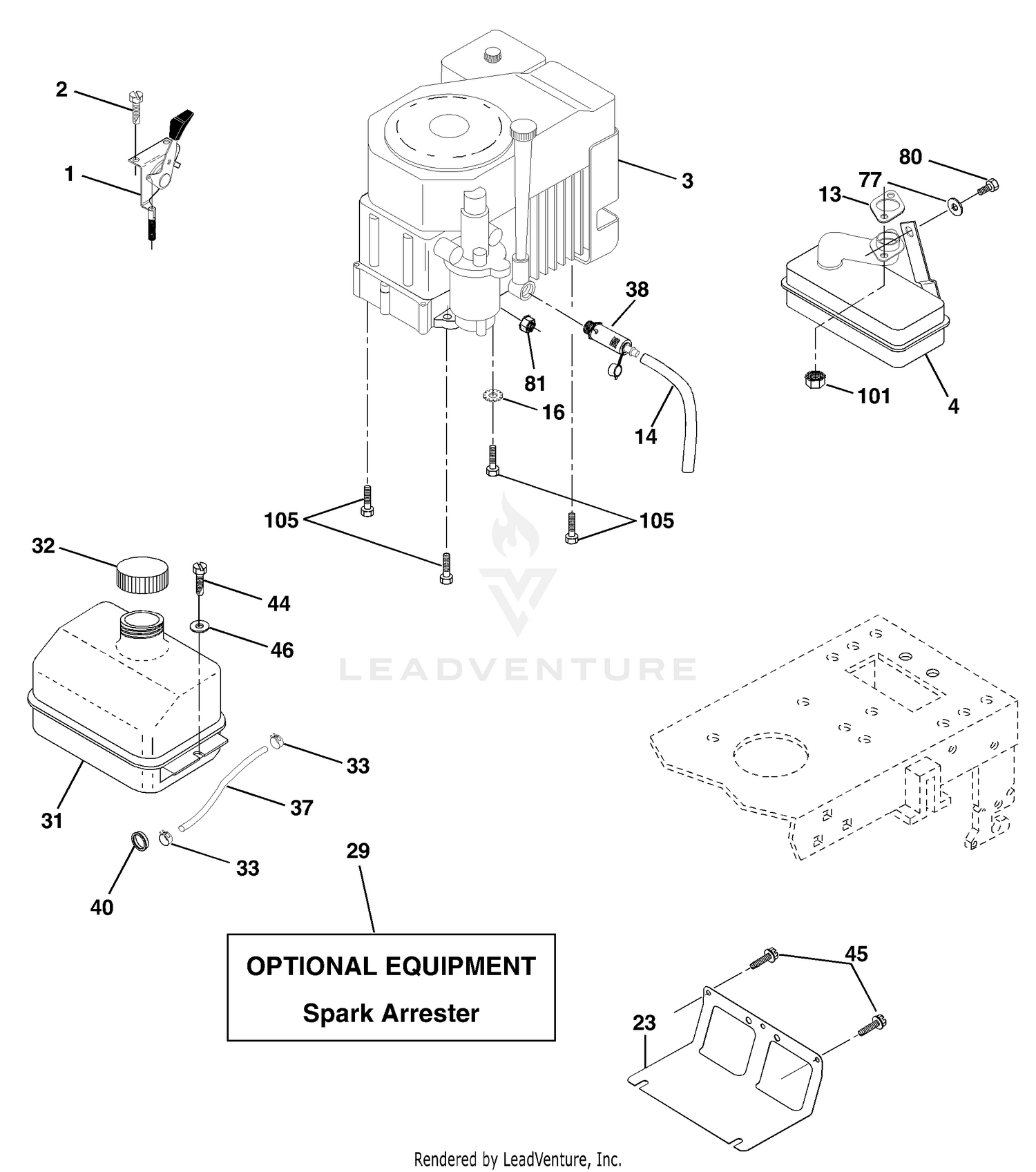

| Ref | Part Number | Description |
|---|
| 1 |
106-6898 |
JOINT-BALL This part replaces 92-5837. Price: $210.81 |
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT Price: $27.99 |
| 2 |
3220-11 |
NUT-JAM Price: $0.81 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
340-70 |
NUT-LOCK Price: $2.10 |
| 4 |
532159420 |
MUFFLER.KOHL.CV.SINGLE.W/PORT Price: $99.99 |
| 5 |
98-3867 |
WASHER-THRUST Price: $3.21 |
| 6 |
92-7595 |
HOSE-HYD Price: $102.70 |
| 7 |
92-7594 |
HOSE ASM Price: $94.90 |
| 9 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 10 |
92-1765 |
WASHER-THRUST Price: $2.57 |
| 12 |
100-3770 |
PIN-AXLE, PIVOT Price: $146.29 |
| 13 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 13 |
532163831 |
KOHLER GASKET Price: $3.30 |
| 14 |
100-3771 |
PIN-STOP Price: $47.62 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 16 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 17 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 18 |
62-2170 |
WASHER-THRUST Price: $4.48 |
| 19 |
100-3785-03 |
REAR AXLE ASM Price: $1,814.62 |
| 20 |
92-9725-03 |
LH SPINDLE ASM Price: $553.13 |
| 21 |
92-9724-03 |
RH SPINDLE ASM This part replaces 92-9724. Price: $644.87 |
| 22 |
32136-14 |
NUT-HST Price: $3.38 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
3220-7 |
NUT-JAM Price: $4.09 |
| 26 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 27 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 28 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 29 |
254-92 |
CONE-BEARING, OUTER Price: $15.84 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
114-3908 |
HUB ASM This part replaces 92-9651. Price: $129.48 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP This part replaces 532109202. Price: $39.99 |
| 31 |
69-2980 |
SEAL Price: $33.94 |
| 32 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 33 |
92-5833 |
SPACER-JOINT, BALL Price: $20.71 |
| 34 |
98-8839 |
DISCONTINUED Price: Call Us |
| 35 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 36 |
94-8142 |
HYD CYLINDER ASM Price: $802.19 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 37 |
92-5839 |
JOINT-BALL Price: $207.89 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 51 |
94-9973 |
RING-RETAINING Price: $1.02 |
| 52 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 53 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 55 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 56 |
100-3769 |
PROTECTOR-BEARING Price: $41.94 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 80 |
874760508 |
Bolt Hex Hd 5/16-18 x 1/2 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
