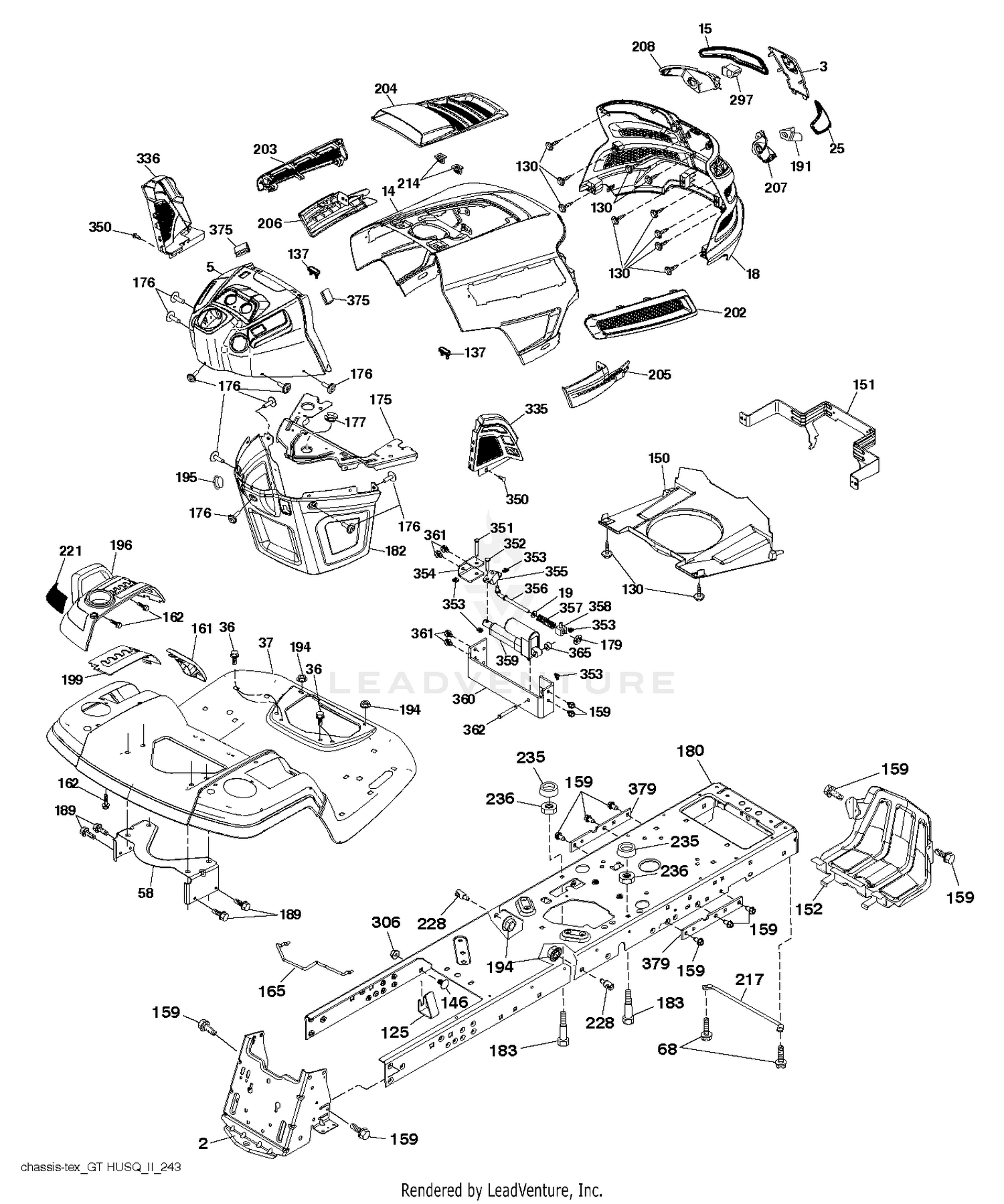

| Ref | Part Number | Description |
|---|
| 1 |
132-8621 |
BATTERY CORROSIVE This part replaces 104-9979. Price: $292.68 |
| 2 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 2 |
580434401 |
DRAWBAR.STGT Price: $99.99 |
| 3 |
110-0907-01 |
BRACKET-BATTERY Price: $85.33 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 4 |
3230-6 |
BOLT-CARR Price: $0.59 |
| 5 |
590748814 |
DASH.UPPER.ASM.GT2.S.M.PTO.SW2 This part replaces 590740014. Price: $34.99 |
| 5 |
99-3513 |
TRAY-BATTERY Price: $53.56 |
| 6 |
108-1802 |
CABLE-BATTERY, POSITIVE Price: $126.22 |
| 7 |
110-8813 |
CABLE-BATTERY, NEGATIVE Price: $69.67 |
| 8 |
2410-42 |
CAP-END Price: $11.62 |
| 9 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 12 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 13 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 14 |
147-3550 |
BUMPER ASM This part replaces 110-8951-03. Price: $230.25 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 15 |
108-9455 |
HARNESS-WIRE, FUSIBLE LINK Price: $13.09 |
| 15 |
532439733 |
LENS.HEADLIGHT.LH.GTII.2011 Price: $11.99 |
| 16 |
99-7435 |
RELAY Price: $32.43 |
| 17 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 18 |
115-8079 |
HARNESS-WIRE, MAIN Price: $842.71 |
| 18 |
597247201 |
Grilles This part replaces 587523401. Price: $84.99 |
| 19 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 19 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 20 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 21 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ Price: $219.99 |
| 58 |
532194314 |
BRKT.SUPPORT.FNDR/TANK Price: $17.99 |
| 68 |
596030701 |
Screws This part replaces 539990858. Price: $2.99 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532439929. Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532194330 |
SUPPORT.TANK.REAR.B/TE Price: $17.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 179 |
532168937 |
NUT Price: $2.99 |
| 180 |
582033101 |
KITS.TEX.BOLTED.CHASSIS.445559 This part replaces 532445559. Price: $229.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
532439674 |
CONSOLE.ASM.DECKLIFT.HUSQGT.DL Price: $84.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 This part replaces 532435714. Price: $22.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
| 351 |
532421734 |
PIN.CLEVIS.375X2.125 Price: $6.99 |
| 352 |
583598001 |
CLEVIS.375X1.25 This part replaces 532448634. Price: $2.99 |
| 353 |
532178062 |
CLIP RETAINER Price: $2.99 |
| 354 |
583597601 |
SUPPORT.BELLCRANK This part replaces 532448619. Price: $20.99 |
| 355 |
583598101 |
BELLCRANK.PIVOT.LOCK.DIFF This part replaces 532448636. Price: $27.99 |
| 356 |
583598601 |
LINK.LOCK.DIFF This part replaces 532448693. Price: $5.99 |
| 357 |
583598501 |
SPRING.COMPRESSION This part replaces 532448684. Price: $4.99 |
| 358 |
580366601 |
GUIDE.SWIVEL Price: $11.99 |
| 359 |
534996001 |
ACTUATOR This part replaces 580366201. Price: $229.99 |
| 360 |
583597501 |
BRACKET ACUATOR This part replaces 532448618. Price: $54.99 |
| 361 |
596564002 |
Screws This part replaces 817490610. Price: $2.99 |
| 362 |
583597901 |
CLEVIS.375 X 2.42 This part replaces 532448633. Price: $3.99 |
| 365 |
583590601 |
NYLN.SPCR.375 X .75 X .4375.L This part replaces 532447368. Price: $2.99 |
| 375 |
586908201 |
BUMPER CLIP-ON. DASH 1" Price: $3.99 |
| 379 |
593206902 |
CHASSIS.PLATE.REINFORCEMNT.431 Price: $4.99 |
