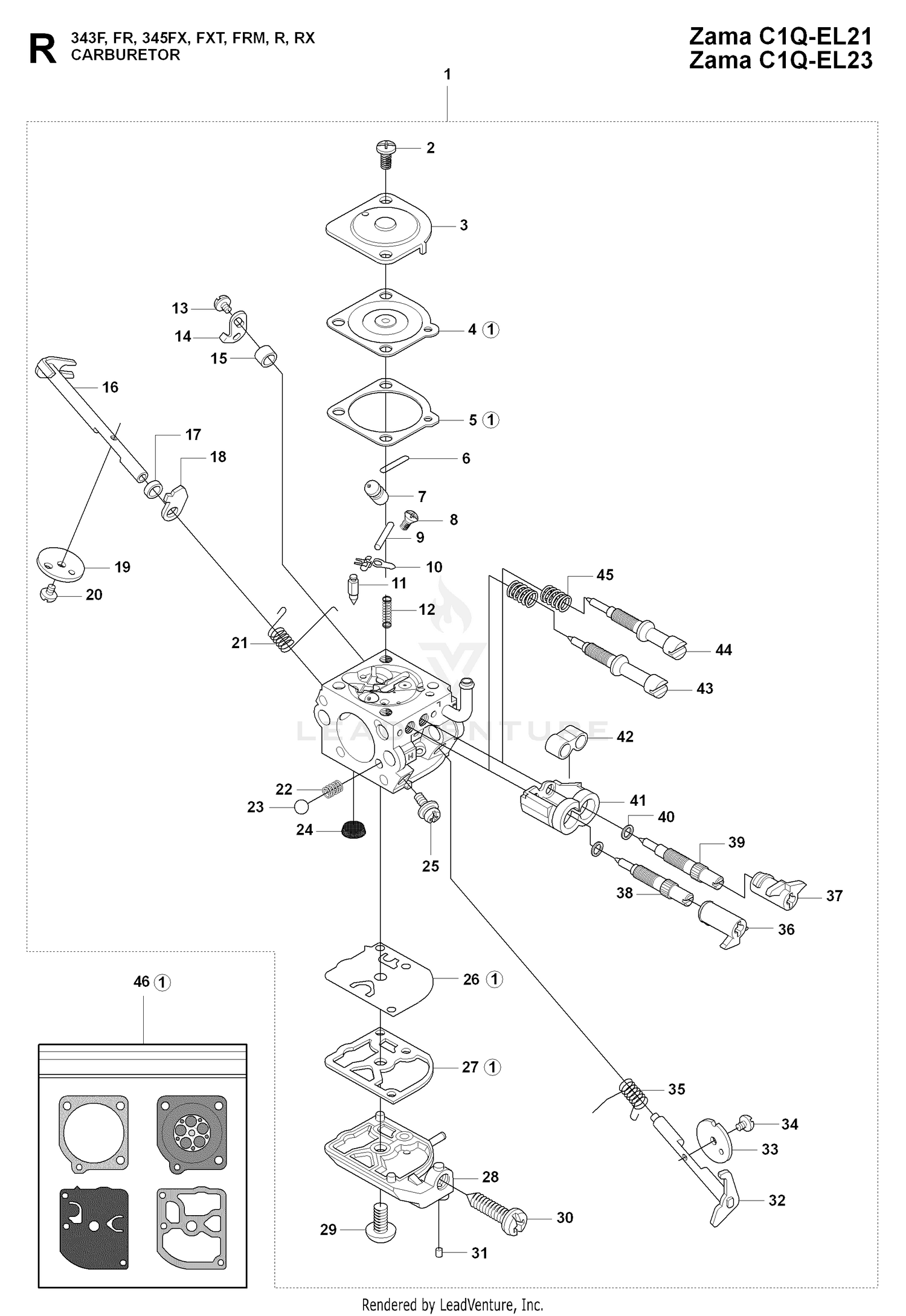

CARBURETOR DETAILS
Parts (79)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 33023-00 | NUT-LOCK Price: $0.25 |
| 1 | 503283116 | CARBURETOR Price: $99.99 |
| 1 | 503283118 | CARBURETOR Price: $99.99 |
| 2 | 33093-00 | WASHER-FLAT Price: $0.70 |
| 2 | 503480501 | SCREW Price: $2.99 |
| 3 | 100-5352 | HINGE-HOOD Price: $71.48 |
| 3 | 503974301 | COVER Price: $5.99 |
| 4 | 33113-020 | SCREW-HH Price: $0.26 |
| 4 | 503480201 | METERING DIAPHRAGM Price: $11.99 |
| 5 | 100-5447 | HOOD Price: $3,903.58 |
| 5 | 503480301 | GASKET METERING SIDE Price: $4.99 |
| 6 | 3269-10 | WASHER-BACK Price: $0.61 |
| 6 | 503535601 | PLUG Price: $3.99 |
| 7 | 544114901 | SPREADER Price: $16.99 |
| 7 | 59-9740 | FLEX DRAW LATCH ASM Price: $36.89 |
| 8 | 3269-24 | RIVET Price: $1.79 |
| 8 | 503480101 | SCREW Price: $2.99 |
| 9 | 100-5353 | HANDLE-HOOD Price: $70.68 |
| 9 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 10 | 100-7601 | SCREW-HSH Price: $1.72 |
| 10 | 503665901 | LEVER Price: $3.99 |
| 11 | 33094-00 | WASHER-PLAIN Price: $0.25 |
| 11 | 503479701 | INLET NEEDLE Price: $8.99 |
| 12 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 12 | 537273401 | SPRING This part replaces 537020301. Price: $4.99 |
| 13 | 104-0971 | TUBE-CASTOR, OUTER Price: $249.62 |
| 13 | 503479001 | SCREW Price: $2.99 |
| 14 | 100-5370 | WHEEL-CASTER Price: $345.52 |
| 14 | 537019801 | LEVER Price: $3.99 |
| 15 | 33116-045 | SCREW-HH Price: $1.70 |
| 15 | 503478901 | SPACER Price: $3.99 |
| 16 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 16 | 537020901 | CHOKE SHAFT Price: $8.99 |
| 17 | 104-0970 | TUBE-CASTOR, INNER Price: $232.08 |
| 17 | 503481901 | BUSHING Price: $5.99 |
| 18 | 100-7551 | PIN ASM Price: $63.53 |
| 18 | 537049001 | LEVER Price: $2.99 |
| 19 | 100-7563 | CAP-PLASTIC Price: $30.91 |
| 19 | 537370301 | CHOKE CAP This part replaces 537021101. Price: $6.99 |
| 20 | 100-3618 | DECAL Price: $32.58 |
| 20 | 503481801 | SCREW Price: $2.99 |
| 21 | 537021001 | SPRING Price: $2.99 |
| 21 | 92-1242 | DECAL Price: $20.82 |
| 22 | 104-1453 | GROMMET Price: $6.57 |
| 22 | 537012601 | SPRING Price: $2.99 |
| 23 | 100-3637 | BRACKET-CE Price: $118.11 |
| 23 | 537012501 | BALL Price: $2.99 |
| 24 | 33124-020 | SCREW-CARR Price: $0.88 |
| 24 | 503535701 | STRAINER Price: $3.99 |
| 25 | 33094-00 | WASHER-PLAIN Price: $0.25 |
| 25 | 503755301 | SCREW * Price: $2.99 |
| 26 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 26 | 537020001 | PUMP DIAPHRAGM Price: $7.99 |
| 27 | 537020101 | GASKET Price: $3.99 |
| 27 | 98-9316 | LATCH-HOOD Price: $61.25 |
| 28 | 537020201 | COVER Price: $19.99 |
| 28 | 98-9315 | LATCH-LOCKING Price: $117.46 |
| 29 | 33113-030 | SCREW-HH Price: $0.54 |
| 29 | 503479601 | SCREW Price: $2.99 |
| 30 | 33093-00 | WASHER-FLAT Price: $0.70 |
| 30 | 537020701 | SCREW Price: $6.99 |
| 31 | 33023-00 | NUT-LOCK Price: $0.25 |
| 31 | 503481101 | PLUG Price: $3.99 |
| 32 | 537275401 | THROTTLE SHAFT Price: $20.31 |
| 32 | 98-9321 | RING-KEY Price: $1.80 |
| 33 | 104-9908 | ANGLE Price: $697.90 |
| 33 | 537386801 | THROTTLE FLAP Price: $4.99 |
| 34 | 503479201 | SCREW Price: $2.99 |
| 35 | 537287101 | SPRING Price: $5.60 |
| 36 | 503903301 | LIMITER CAP Price: $3.99 |
| 38 | 537275601 | NEEDLE HIGH SPEED Price: $19.98 |
| 39 | 537275501 | NEEDLE LOW SPEED Price: $19.69 |
| 40 | 503974001 | WASHER Price: $2.99 |
| 41 | 503903401 | SLEEVE Price: $6.99 |
| 42 | 537274201 | SLEEVE Price: $5.99 |
| 43 | 537387001 | SCREW Price: $9.64 |
| 44 | 537386901 | IDLE SCREW Price: $10.63 |
| 45 | 503994301 | SPRING This part replaces 503480801. Price: $2.99 |
| 46 | 537243601 | GASKET SET Price: $14.99 |
