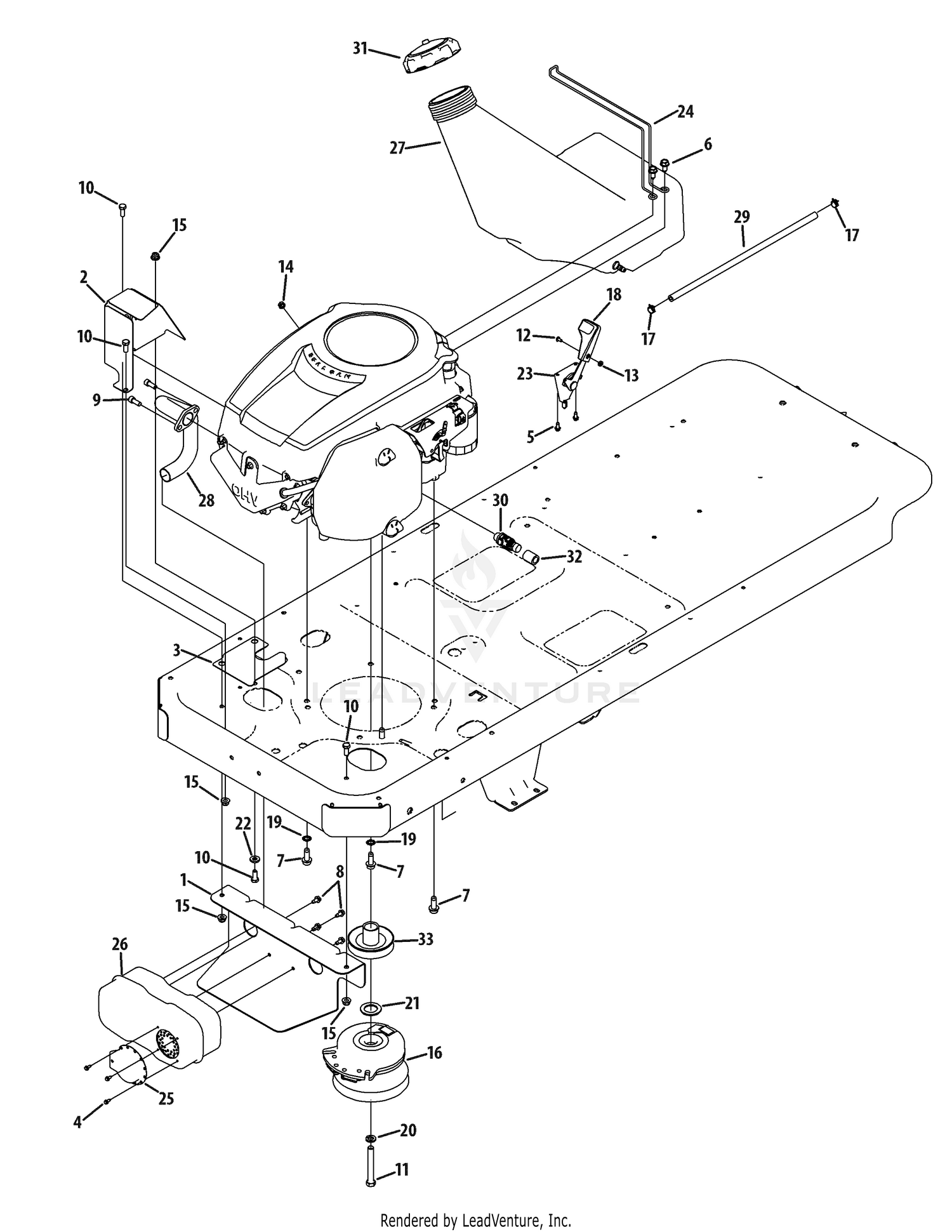

| Ref | Part Number | Description |
|---|
| 1 |
703-05441A |
Muffler Bracket Price: $48.35 |
| 2 |
703-05870 |
HEAT SHIELD Not Available Price: |
| 3 |
703-07712A |
HEAT SHIELD Not Available Price: |
| 4 |
710-0227 |
Hex Washer Screw, #8-18 x .500 Price: $3.90 |
| 5 |
710-04261 |
Hex Washer Screw, #12-16 x .50 Price: $5.45 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-04683C |
SCREW 3/8-16 x 1 This part replaces 710-04683. Price: $5.67 |
| 8 |
710-0599 |
Hex Washer Screw, 1/4-20 x .500 Price: $3.86 |
| 9 |
710-1314A |
Socket Head Screw, 5/16-18 x .750 Price: $4.05 |
| 10 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 11 |
710-3157A |
Hex Screw, 7/16-20 x 3.25 Price: $9.67 |
| 12 |
710-3217 |
Machine Screw, #8-32 x .375 Price: $5.94 |
| 13 |
712-0142 |
Hex Nut, #8-32 Price: $3.90 |
| 14 |
712-0271 |
Sems Nut, 1/4-20 Price: $3.78 |
| 15 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 16 |
917-04376A |
Electric PTO Clutch Price: $461.82 |
| 17 |
726-0205 |
Hose Clamp. .490 Price: $3.71 |
| 18 |
731-04914 |
Throttle Contrl Knob Price: $11.56 |
| 19 |
736-0148 |
Lock Washer, 3/8 Price: $3.19 |
| 20 |
736-0171 |
Lock Washer, 7/16 Price: $3.86 |
| 21 |
736-0277 |
Flat Washer, 1.031 x 1.620 x .095 Price: $3.90 |
| 22 |
936-3008 |
Flat Washer, .344 x .750 x .120 Price: $6.24 |
| 23 |
946-04161 |
Cable, Throttle, 39.0 Lg This part replaces 746-04161. Price: $46.22 |
| 24 |
747-04228A |
FUEL TANK MOUNTING WIRE Not Available Price: |
| 25 |
751-0564B |
Muffler Deflector Price: $12.14 |
| 26 |
951-0617C |
Single Inlet Muffler This part replaces 751-0617C. Price: $138.70 |
| 27 |
751-10057D |
Fuel Tank Price: $271.40 |
| 28 |
751-10251 |
Exhaust Pipe Price: $94.08 |
| 29 |
751-10349 |
Low Permeation Fuel Hose Price: $8.11 |
| 30 |
951-10517A |
Oil Drain Price: $22.67 |
| 31 |
951-3124E |
Fuel Cap Price: $31.79 |
| 32 |
751-3141-14 |
Oil Drain Extension Hose Price: $10.40 |
