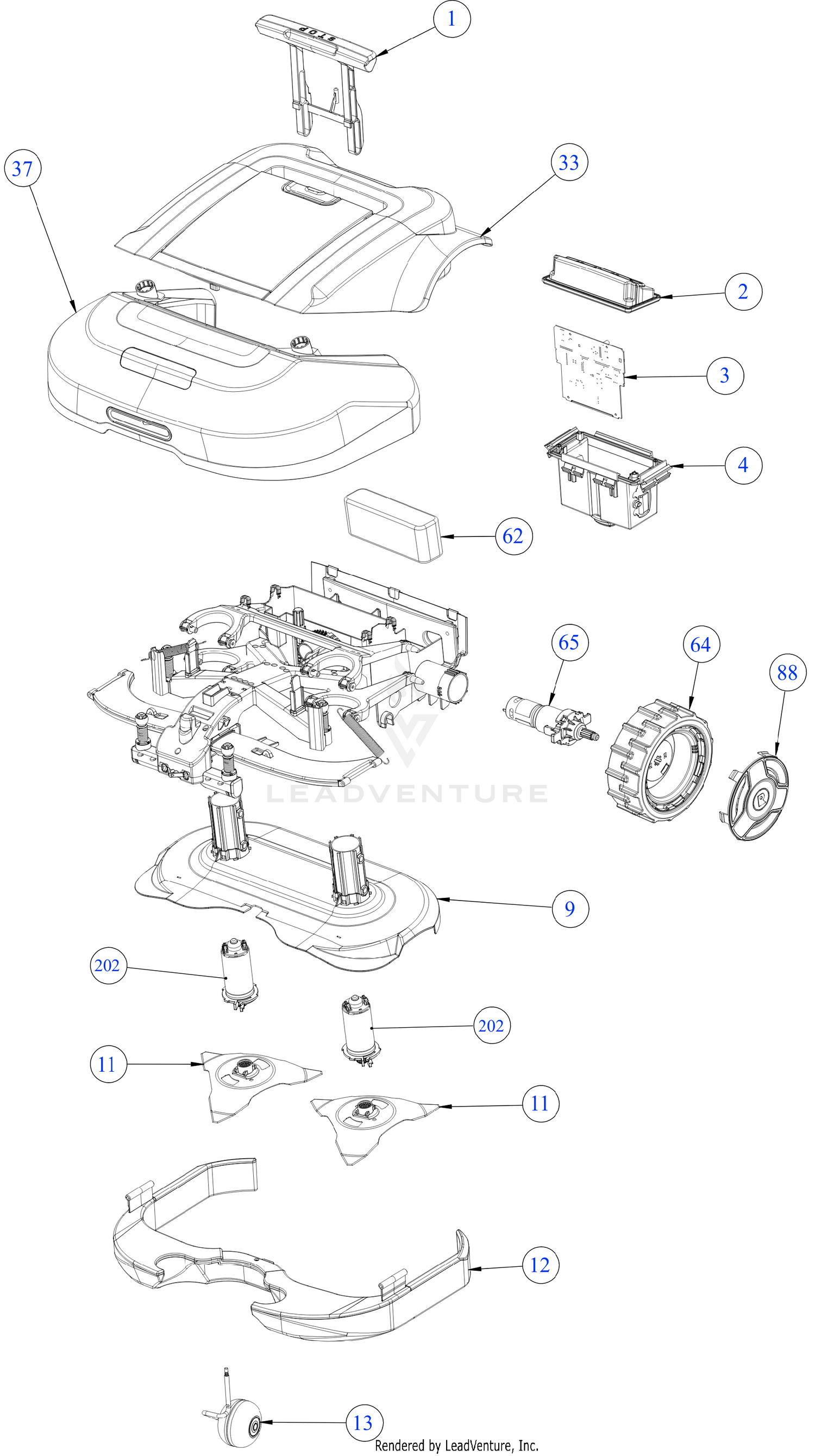

| Ref | Part Number | Description |
|---|
| 1 |
FR-MSB6310B |
CARRYING AND STOP HANDLE Price: $57.63 |
| 2 |
FRPMSB6340B |
LCD PANEL ASSEMBLY This part replaces FR-MSB6340B. Price: $224.59 |
| 4 |
FR-MSB6320A |
C-BOX ASSEMBLY Not Available Price: |
| 5 |
FR-SMSB6206B |
HD DRIVE MOTOR ASMALUMINUM SPLINE This part replaces FR-SPP6109A. Price: $258.76 |
| 8 |
FR-INJ6160A |
WHEEL LOCK Not Available Price: |
| 9 |
FR-MSB6003B |
MOWING DECK ASSEMB Not Available Price: |
| 11 |
FR-MRK6108A |
HIGH CUT BLADE SET KIT Price: $122.62 |
| 12 |
FR-MSB6004C |
FLOATER ASSEMBLY Not Available Price: |
| 13 |
FR-MSB6007D |
FRONT WHEEL ASSEMBLY (2014) Price: $106.34 |
| 14 |
FR-INJ6580A |
WIRE LOCKER Not Available Price: |
| 15 |
FR-INJ6071A |
MOWING UPPER ARM Not Available Price: |
| 16 |
FR-INJ6040A |
MOWING MOTOS LOCKE Not Available Price: |
| 17 |
FR-INJ6072A |
MOWING LOWER ARM Not Available Price: |
| 18 |
FR-MSB6002B |
BALL JOINT ASSEMBL Not Available Price: |
| 19 |
FR-GEN6020B |
SHAFT-PARRAL ASSEM Not Available Price: |
| 20 |
FR-GEN6018A |
FLOATER SPRING Not Available Price: |
| 21 |
FR-INJ6082B |
WING LEFT Not Available Price: |
| 22 |
FR-GEN6009B |
WING TO FLOATER SHAFT Price: $6.55 |
| 23 |
FR-INJ6200B |
WIRE SENSOR CAP Not Available Price: |
| 24 |
FR-GEN6008A |
Y SHAFT TO WING Not Available Price: |
| 25 |
FR-GEN6017A |
MOWING DECK SPRING Price: $27.37 |
| 27 |
FR-INJ6081B |
WING RIGHT Not Available Price: |
| 29 |
FR-MSB6173A |
FRONT WHEEL MAGNET Not Available Price: |
| 31 |
FR-SPP6104A |
CHASSIS ASSEMBLY S MODELS Not Available Price: |
| 32 |
FR-INJ6480A |
Y ARM SNAP Not Available Price: |
| 33 |
FR-MSB6008B |
COVER ASSEMBLY (GREEN) Price: $157.42 |
| 34 |
FR-SPP6009A |
RS DOOR SHUTTER KIT Price: $42.17 |
| 36 |
FR-INJ6550A |
C-BOX RUBBER DOOR Not Available Price: |
| 37 |
FR-MSB6001A |
BUMPER ASSEMBLY BLACK Price: $129.11 |
| 38 |
FR-INJ6260A |
LIGHT COVER-BUMPER Not Available Price: |
| 39 |
FR-INJ6274A |
BUMPER HANG CAVITY Not Available Price: |
| 40 |
FR-INJ6371A |
BUZZER BRACKET Not Available Price: |
| 41 |
FR-BUZ6000G |
PIEZO BUZZER W/CAB Not Available Price: |
| 42 |
FR-MSB6391A |
BASE STATION W/O H Not Available Price: |
| 43 |
FR-GEN0223B |
FASTENING STAKES-B Not Available Price: |
| 49 |
FR-WSB6002C |
WIRE SENSORS CABLE W/HOLDERS Price: $84.66 |
| 50 |
FR-SPP6105A |
FUSE-BATTERY CABLE Price: $65.65 |
| 51 |
FR-WSB6004D |
MAIN BOARD TO DRIVE MOTOR CABLE Not Available Price: |
| 52 |
FR-WSB6012D |
MAIN BOARD TO BATTERY CELLS CABLE Not Available Price: |
| 55 |
FR-SPP6107A |
FUSE THREAD Not Available Price: |
| 56 |
FR-FUS6000A |
FUSE-32V/20A FAST Price: $6.42 |
| 57 |
FR-INJ6750D |
FRONT WHEEL SLEEVE Price: $4.69 |
| 62 |
FR-P-MRK6105A |
BATTERY (RS612/RS622) (4.6AH) This part replaces FR-MRK6105A. Price: $481.20 |
| 64 |
FR-MRK6107A |
POWER WHEELS (W/CAP) Price: $125.76 |
| 65 |
FR-SMSB6206B |
HD DRIVE MOTOR ASMALUMINUM SPLINE Price: $258.76 |
| 66 |
FR-SPP6208A |
RS MAIN RED (2018) Price: $462.72 |
| 67 |
FR-ESB6203C1 |
FRONT BOARD S (2018 RED) Price: $77.85 |
| 70 |
FR-SPP6130A |
RS CHARGE ADAPTER (2018) This part replaces FR-SMSB6203A. Price: $228.98 |
| 71 |
FR-WSB6001H |
MAIN BOARD TO FRT WHEEL CABLE (18) Price: $43.74 |
| 72 |
FR-WSB6023A |
RS COMM/GSM SPLIT CABLE PCG6200 Price: $12.46 |
| 73 |
FR-ESB7020B2 |
GSM W/GPS US (CATM1) This part replaces FR-SPP0112A. Price: $262.94 |
| 88 |
FR-INJ6991A |
RS PREMIUM TAS Price: $10.38 |
| 202 |
FR-SPP6111A |
MOWING MOTOR BRUSH Price: $196.04 |
| 203 |
FR-GEN6034B |
POWER BOX HANGING BRACKET Price: $22.71 |
| 204 |
FR-SCR6000A |
SCREW + "DIBEL" X 2 KIT Not Available Price: |
| 207 |
FR-CON0144G |
MINI JUMPER 2.54MM Not Available Price: |
| 208 |
FR-GEN0175A |
STAKE-PERIMETER SW Not Available Price: |
| 210 |
FR-UNT5007C |
PERIMETER SWITCH (ESB5009F) Not Available Price: |
| 211 |
FR-MRK5006A |
BATTERY PACK-PERIM Not Available Price: |
| 212 |
FR-GEN0176A |
PERIMETER SWITCH B Not Available Price: |
| 213 |
FR-STC5009B |
PERIMETER SWITCH STICKER Not Available Price: |
