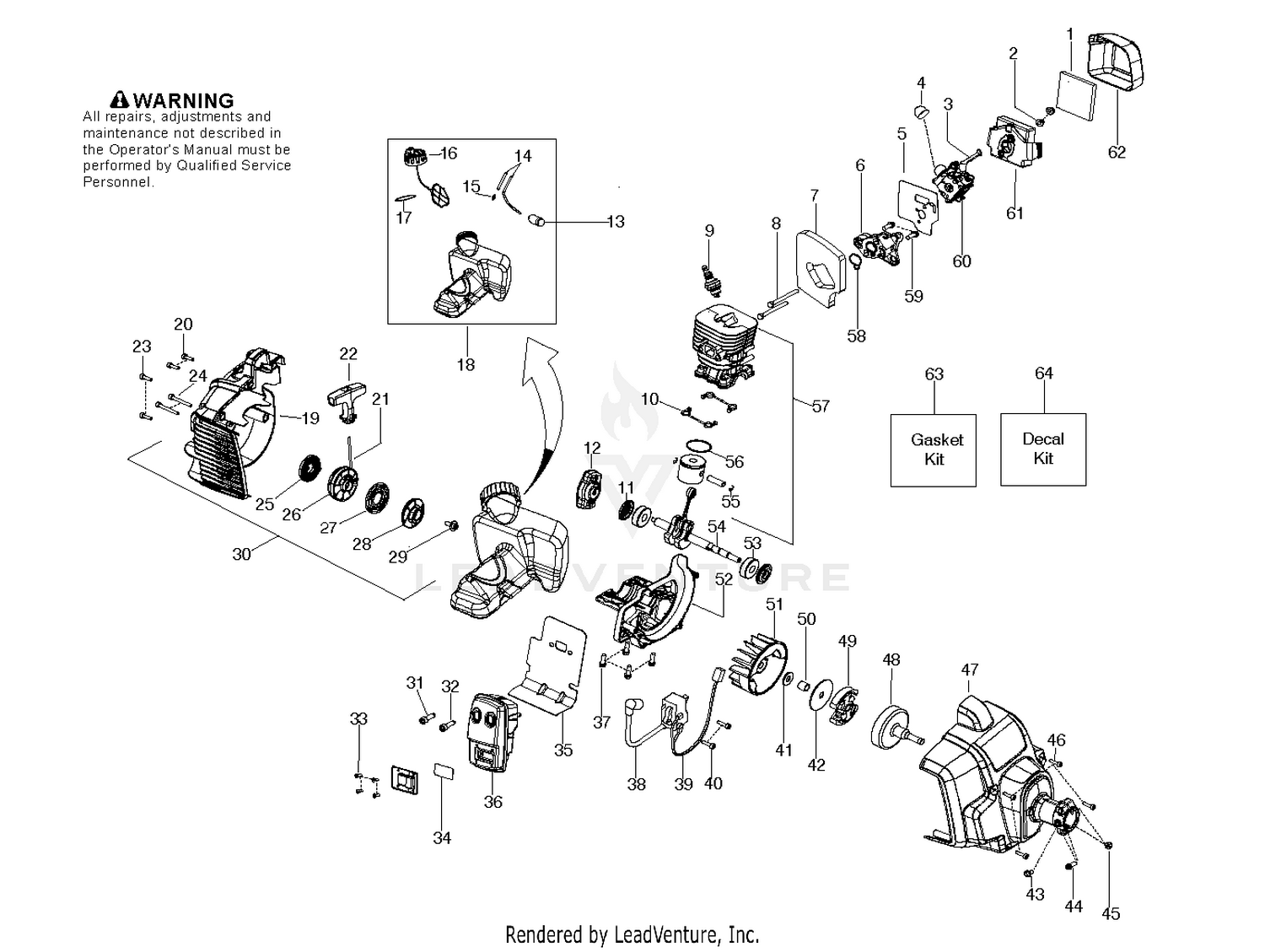

| Ref | Part Number | Description |
|---|
| 1 |
3272-50 |
PIN-COTTER Price: $1.09 |
| 1 |
581976201 |
FILTER FOAM Price: $1.99 |
| 2 |
29-2770 |
THRUST WASHER Price: $5.01 |
| 2 |
530016101 |
NUT Price: $1.99 |
| 3 |
49-2530 |
SHAFT CENTER PIVOT This part replaces 29-3150. Price: $86.00 |
| 3 |
585165801 |
LEVER CHOKE Price: $2.99 |
| 4 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
530058709 |
PURGE BULB ZAMA Price: $4.99 |
| 5 |
39-0970 |
DISCONTINUED Price: Call Us |
| 5 |
585345906 |
KIT GASKET CARB 28CC Price: $1.99 |
| 6 |
256-261 |
DISCONTINUED Price: Call Us |
| 6 |
530035596 |
CARB ADAPTOR Price: $6.99 |
| 7 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 7 |
585345911 |
KIT GASKET 28CC Price: $8.99 |
| 8 |
325-5 |
SCREW-HH Price: $1.20 |
| 8 |
530016400 |
BOLT CARB ADAPTOR Price: $1.99 |
| 9 |
503235112 |
Spark Plug This part replaces 952030201. Price: $5.99 |
| 9 |
62-5070 |
DECAL-WARNING This part replaces 27-2890. Price: $5.59 |
| 10 |
323-9 |
SCREW-HH Price: $1.29 |
| 10 |
545083301 |
SEAL CYLINDER Price: $2.99 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
585345911 |
KIT GASKET 28CC Price: $8.99 |
| 12 |
29-3200 |
DISCONTINUED Price: Call Us |
| 12 |
503873305 |
STARTER PAWL BRIDGE This part replaces 525845601. Price: $17.99 |
| 13 |
29-3170 |
SKID WA *R Price: $127.76 |
| 13 |
530095646 |
FUEL PICK-UP ASSY Price: $2.99 |
| 14 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 14 |
530069599 |
KIT-LINE(FUEL) Price: $4.99 |
| 15 |
39-0980 |
DISCONTINUED Price: Call Us |
| 15 |
581411001 |
FUEL LINE FITTING DBL BARB Price: $1.99 |
| 16 |
36-5100 |
DISCONTINUED Price: Call Us |
| 16 |
578931002 |
ASSY FUEL CAP Price: $4.99 |
| 17 |
36-5430 |
DISCONTINUED Price: Call Us |
| 17 |
585345911 |
KIT GASKET 28CC Price: $8.99 |
| 18 |
36-5590 |
EXT SPRING *O Price: $30.29 |
| 18 |
585345901 |
KIT FUEL TANK PP 28CC Price: $19.99 |
| 19 |
32128-29 |
NUT-LOCK, FLANGE Price: $1.63 |
| 19 |
585867401 |
HOUSING STARTER Price: $9.99 |
| 20 |
26-0070 |
DISCONTINUED Price: Call Us |
| 20 |
545003511 |
SCREW Price: $2.99 |
| 21 |
256-126 |
BUSHING Price: $9.36 |
| 21 |
545008079 |
KIT ROPE Price: $6.99 |
| 22 |
36-5470 |
DISCONTINUED Price: Call Us |
| 22 |
545208401 |
STARTER HANDLE Price: $4.99 |
| 23 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 23 |
545003511 |
SCREW Price: $2.99 |
| 24 |
323-10 |
SCREW-HH Price: $0.89 |
| 24 |
530016426 |
SCREW M5-0.8X30MM Price: $1.99 |
| 25 |
36-5110 |
DISCONTINUED Price: Call Us |
| 25 |
545008087 |
KIT STARTER SPRING Price: $4.99 |
| 26 |
585530301 |
KIT PULLEY/SPRING This part replaces 579066801. Price: $5.99 |
| 27 |
578465101 |
DRIVER SPRING Price: $1.99 |
| 28 |
579366201 |
PULLEY STARTER DRIVE Price: $1.99 |
| 29 |
530016468 |
SCREW Price: $1.99 |
| 30 |
585345909 |
KIT HOUSING STARTER Price: $32.99 |
| 31 |
530058982 |
BOLT MUFFLER Price: $1.99 |
| 32 |
530058982 |
BOLT MUFFLER Price: $1.99 |
| 33 |
530015241 |
SCREW-6-19X5/16PLAST PA Price: $1.99 |
| 34 |
545030501 |
KIT SPARK ARRESTOR SCREEN Price: $4.99 |
| 35 |
585345911 |
KIT GASKET 28CC Price: $8.99 |
| 36 |
585345903 |
KIT MUFFLER W/CATALYST Price: $27.99 |
| 37 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $1.99 |
| 38 |
545046701 |
IGNITION MODULE MBU-7 Price: $37.99 |
| 39 |
585696001 |
ASSY MOD LEADWIRE Price: $3.99 |
| 40 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $1.99 |
| 41 |
530016463 |
WASHER CLUTCH Price: $1.99 |
| 42 |
530094189 |
WASHER-CLUTCH Price: $2.99 |
| 43 |
530015805 |
SCREW-10-14 X 1/2 PLASTITE Price: $1.99 |
| 44 |
530015774 |
SCREW-10-24 X 1" (UNC) Price: $1.99 |
| 45 |
530015768 |
LOCKNUT-HEX 10-24 Price: $1.99 |
| 46 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $1.99 |
| 47 |
583974801 |
ASSY FAN HOUSING Price: $14.99 |
| 48 |
578426601 |
CLUTCH DRUM ASSY Price: $9.99 |
| 49 |
585578701 |
ASSEMBLY CLUTCH Price: $3.99 |
| 50 |
530057852 |
SPACER FLYWHEEL Price: $2.99 |
| 51 |
530039242 |
FLYWHEEL Price: $27.99 |
| 52 |
545195602 |
CASTING C/CASE Price: $17.99 |
| 53 |
545013401 |
Bearing - Crankshaft Price: $6.99 |
| 54 |
545195202 |
ASSY CRANKSHAFT Price: $37.99 |
| 55 |
530015162 |
WRIST PIN RET. Price: $1.99 |
| 56 |
575227401 |
RING PISTON 28CC AIP Price: $1.99 |
| 57 |
545008082 |
KIT PISTON & CYLINDER This part replaces 585345910. Price: $27.99 |
| 58 |
585345911 |
KIT GASKET 28CC Price: $8.99 |
| 59 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $1.99 |
| 60 |
585345913 |
CARB FE Price: $34.99 |
| 61 |
581866401 |
HOUSING AIR FILTER BLACK Price: $1.99 |
| 62 |
585165701 |
COVER FILTER HSG Price: $1.99 |
| 63 |
585345911 |
KIT GASKET 28CC Price: $8.99 |
