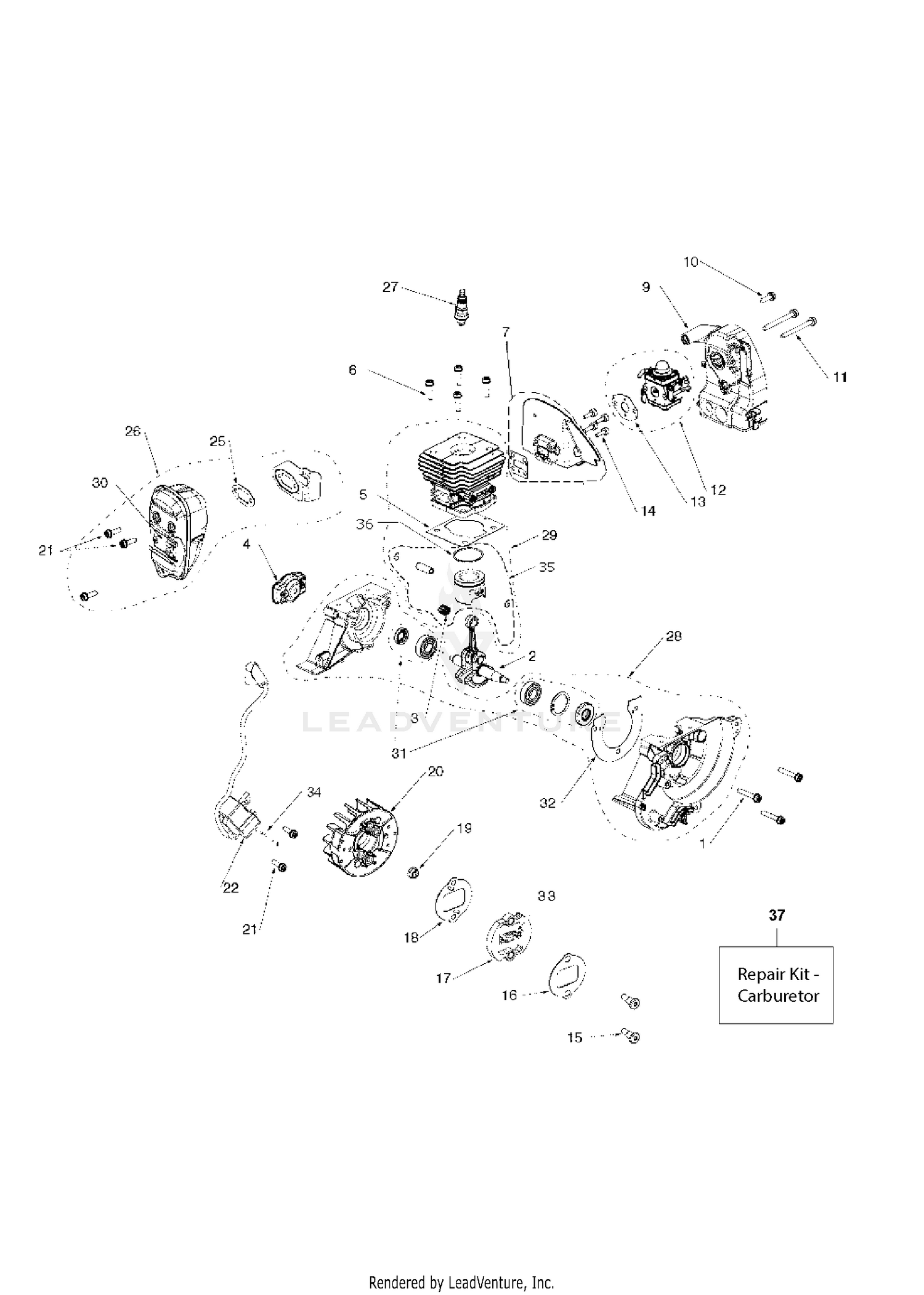

ENGINE
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 525755103 | SCREW Price: $3.99 |
| 2 | 522928903 | CRANKSHAFT ASSY Price: $44.99 |
| 3 | 589568901 | Bearings Price: $4.99 |
| 4 | 503873305 | STARTER PAWL BRIDGE Price: $22.99 |
| 5 | 579522901 | GASKET CYLINDER BASE Price: $3.99 |
| 6 | 525755102 | SCREW Price: $2.99 |
| 9 | 580985501 | ASSY FILTER HOLDER Price: $7.99 |
| 10 | 573925801 | SCREW Price: $2.99 |
| 11 | 573925802 | SCREW Price: $2.99 |
| 13 | 586853301 | GASKET CARB ADAPTER Price: $2.99 |
| 14 | 525760906 | SCREW ITXSCM Price: $2.99 |
| 15 | 525615401 | SCREW CLUTCH Price: $2.99 |
| 16 | 525613001 | WASHER CLUTCH UPPER Price: $2.99 |
| 18 | 525612901 | WASHER CLUTCH LOWER Price: $3.99 |
| 19 | 731711651 | FLANGE NUT Price: $3.99 |
| 20 | 510088202 | FLYWHEEL Price: $24.99 |
| 21 | 525755101 | SCREW Price: $3.99 |
| 22 | 597383401 | Ignition Module Price: $24.99 |
| 25 | 580985801 | GASKET Price: $3.99 |
| 31 | 501856201 | SEAL KIT AND BEARING Price: $12.99 |
| 32 | 579522801 | GASKET CRANKCASE Price: $5.99 |
| 33 | 587037001 | SPRING CLUTCH Price: $5.99 |
| 34 | 584993902 | CABLE SHORT CIRCUIT ENGINE Price: $5.99 |
| 36 | 579524601 | PISTON RING 36MM Price: $4.99 |
| 37 | 599604201 | Gaskets Price: $2.99 |
