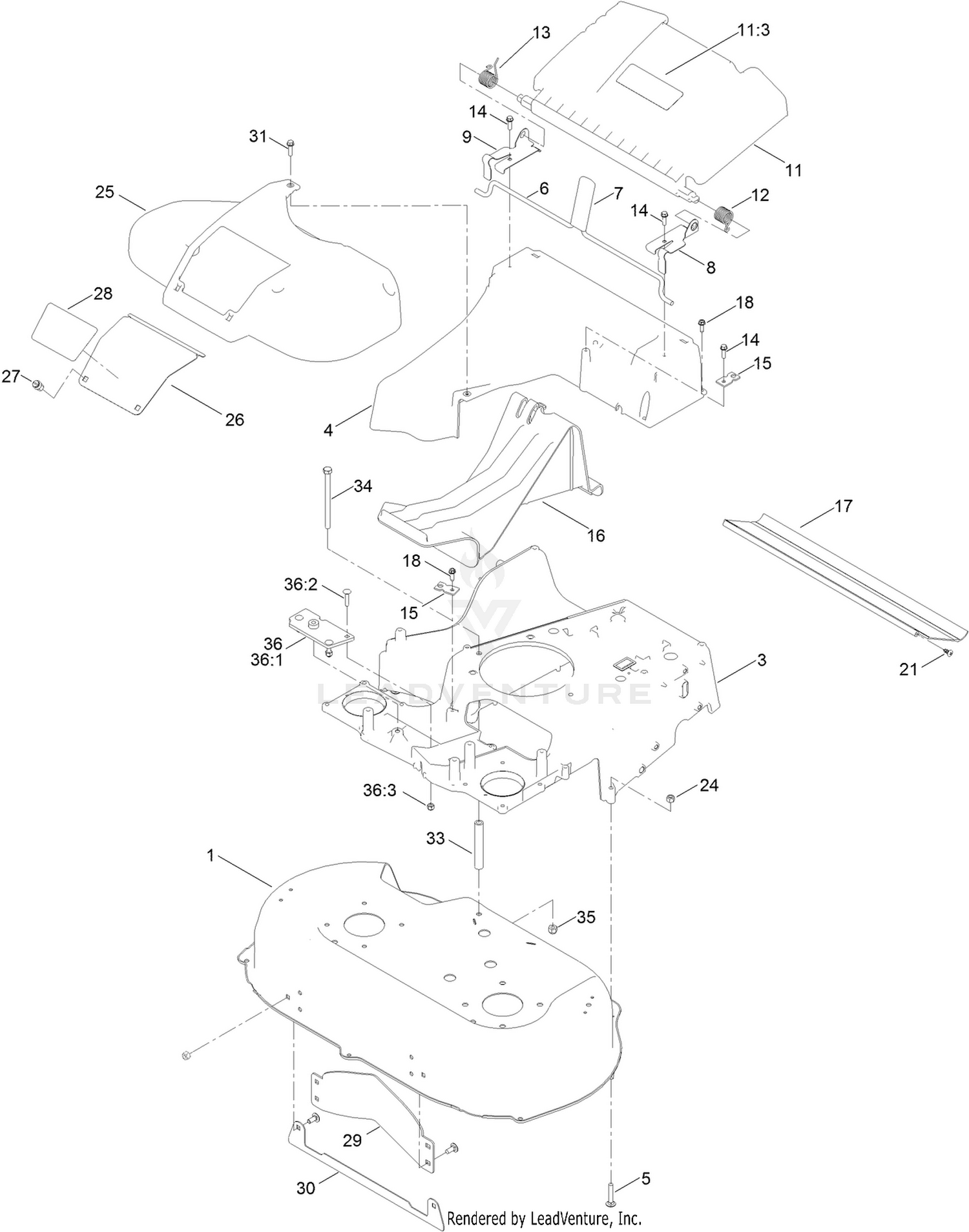

Frame Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-5874 | HOUSING ASM Price: $150.74 |
| 3 | 136-5908-01 | FRAME Price: $120.10 |
| 4 | 133-8177 | CHUTE Price: $37.67 |
| 5 | 137-3063 | BOLT-CAR Price: $0.90 |
| 6 | 139-5415 | ROD-RELEASE, HANDLE Price: $9.97 |
| 7 | 120-7018 | GRIP-LEVER Price: $2.48 |
| 8 | 121-9114 | BRACKET-DOOR, LH Price: $12.59 |
| 9 | 121-9115 | BRACKET-DOOR, RH Price: $12.59 |
| 11 | 120-7048 | REAR DEFLECTOR ASM Price: $25.31 |
| 12 | 115-2859 | SPRING-TORSION Price: $3.33 |
| 13 | 114-7924 | SPRING-TORSION Price: $2.22 |
| 14 | 137-3099 | SCREW-PLASTITE, HWH Price: $0.61 |
| 15 | 138-3224 | BRACKET-CABLE, TRACTION Price: $1.46 |
| 16 | 120-5225 | PLUG-MULCH Price: $19.07 |
| 17 | 120-6241 | SHIELD-TRAILING Price: $10.93 |
| 18 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 21 | 139-1692 | SCREW-THD Price: $0.32 |
| 24 | 119-4038 | NUT-HEX Price: $0.31 |
| 25 | 139-5406 | COVER-BELT Price: $22.96 |
| 26 | 121-5793-03 | DOOR-ACCESS Price: $10.44 |
| 27 | 121-5840 | FASTENER Price: $3.56 |
| 28 | 125-2507 | DECAL-ACCESS PANEL Price: $3.02 |
| 29 | 130-2352-01 | BAFFLE-CONTROL Price: $17.32 |
| 30 | 125-5081-01 | PLATE-DECK Price: $8.73 |
| 31 | 32144-86 | SCREW-HWHTF Price: $1.29 |
| 33 | 139-5498 | SPACER-SHIELD Price: $6.86 |
| 34 | 139-5409 | SCREW-HH Price: $3.96 |
| 35 | 137-3087 | NUT-HEX Price: $0.41 |
| 36 | 125-5072 | FRAME PLATE KIT Price: $28.73 |
