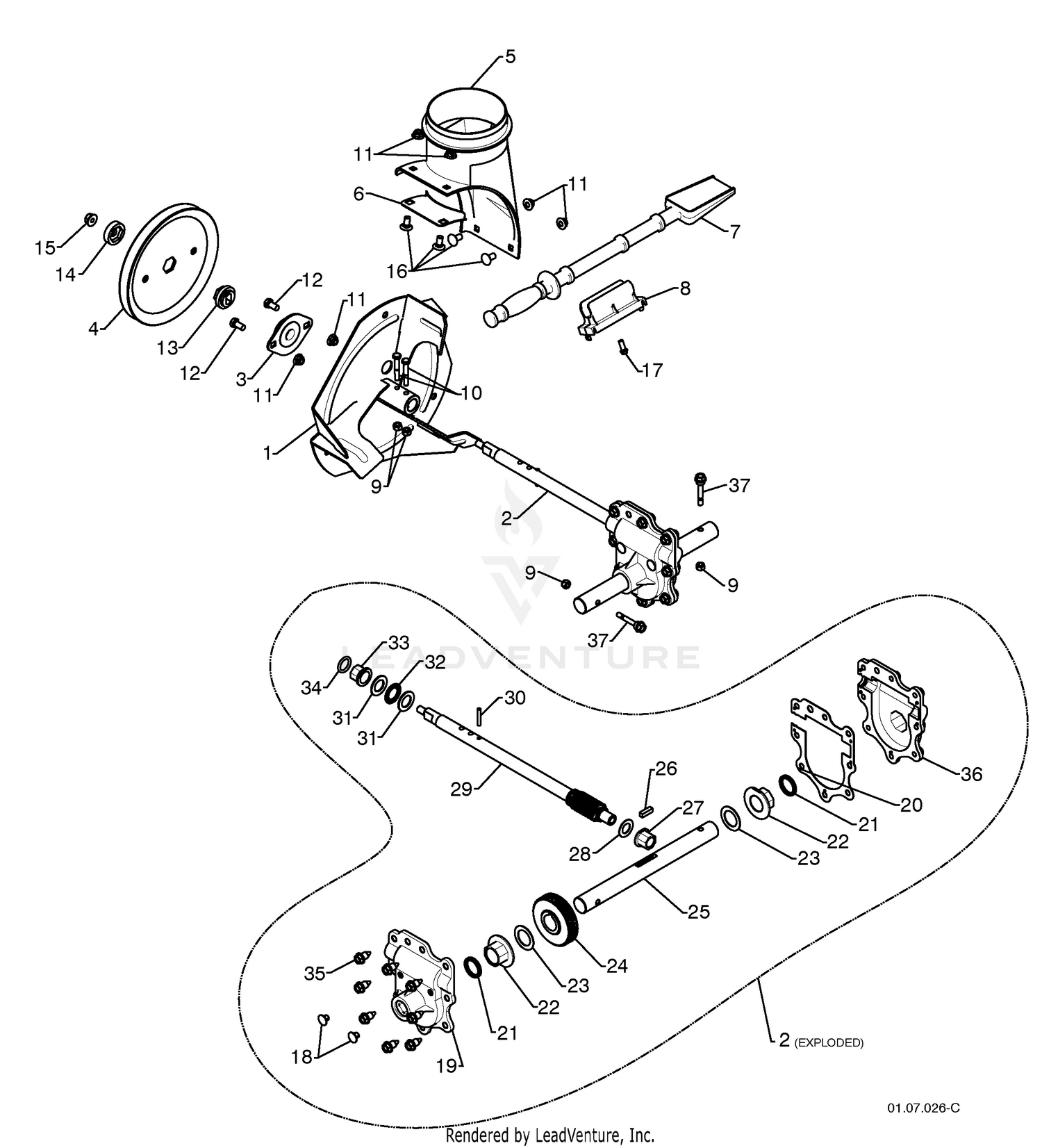

| Ref | Part Number | Description |
|---|
| 1 |
175321X479 |
IMPELLER Price: Call Us |
| 2 |
427148 |
GEARBOX ASSEMBLY Price: Call Us |
| 3 |
188909 |
BEARING Price: Call Us |
| 4 |
427146 |
IMPELLER PULLEY Price: Call Us |
| 5 |
175322 |
DISCHARGE BASE Price: Call Us |
| 6 |
178675X008 |
CORNER BRACKET Price: Call Us |
| 7 |
192199 |
CLEAN OUT TOOL Price: Call Us |
| 8 |
405400 |
TOOL CLIP Price: Call Us |
| 9 |
73800400 |
NUT 1/4-20 Price: Call Us |
| 010 |
98-9614 |
CYLINDER HEAD COVER ASM Price: $256.63 |
| 10 |
74780426 |
SCREW 1/4-20 X .625 Price: Call Us |
| 11 |
427942 |
NUT 5/16-18 Price: Call Us |
| 12 |
163183 |
SCREW 5/16-18 X .625 Price: Call Us |
| 13 |
427145 |
IMPELLER HUB Price: Call Us |
| 14 |
427154 |
IMPELLER SLEEVE Price: Call Us |
| 15 |
73900600 |
NUT 3/8-16 Price: Call Us |
| 16 |
180355 |
CARRIAGE BOLT Price: Call Us |
| 17 |
194189 |
SCREW 13-16 X .625 Price: Call Us |
| 18 |
407760 |
PLUG Price: Call Us |
| 19 |
427302 |
GEARBOX COVER RH Price: Call Us |
| 020 |
98-9615 |
GASKET-COVER, HEAD Price: $20.34 |
| 20 |
427345 |
GASKET Price: Call Us |
| 21 |
407770 |
SEAL Price: Call Us |
| 22 |
407762 |
BEARING Price: Call Us |
| 23 |
174697 |
THRUST WASHER 1.00 Price: Call Us |
| 24 |
407763 |
WORM GEAR Price: Call Us |
| 25 |
407764 |
AUGER SHAFT Price: Call Us |
| 26 |
189282 |
SQUARE KEY Price: Call Us |
| 27 |
407758 |
BEARING Price: Call Us |
| 28 |
174683 |
THRUST WASHER Price: Call Us |
| 29 |
427147 |
IMPELLER SHAFT Price: Call Us |
| 030 |
98-9492 |
JOINT-PIPE, BREATHER Price: $9.68 |
| 30 |
7836M |
ROLL PIN Price: Call Us |
| 31 |
174681 |
THRUST WASHER Price: Call Us |
| 32 |
174684 |
THRUST BEARING Price: Call Us |
| 33 |
407769 |
BEARING Price: Call Us |
| 34 |
407768 |
O-RING Price: Call Us |
| 35 |
407767 |
SCREW 5/16-18 X .750 Price: Call Us |
| 36 |
427317 |
GEARBOX COVER LH Price: Call Us |
| 040 |
98-9488 |
PLATE-ELEMENT, BREATHER Price: $1.33 |
| 050 |
98-9489 |
PLATE-ELEMENT, BREATHER Price: $7.89 |
| 060 |
98-9493 |
ELEMENT-BREATHER Price: $6.10 |
| 070 |
98-9490 |
SHIELD-OIL, BREATHER Price: $1.28 |
| 080 |
98-9364 |
SCREW (WITH WASHER) This part replaces 105-3782. Price: $0.32 |
| 090 |
98-9455 |
NUT-CAP Price: $4.77 |
| 100 |
98-9454 |
GASKET Price: $1.43 |
| 110 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-9449. Price: $7.25 |
| 120 |
99-3446 |
O-RING Price: $7.11 |
