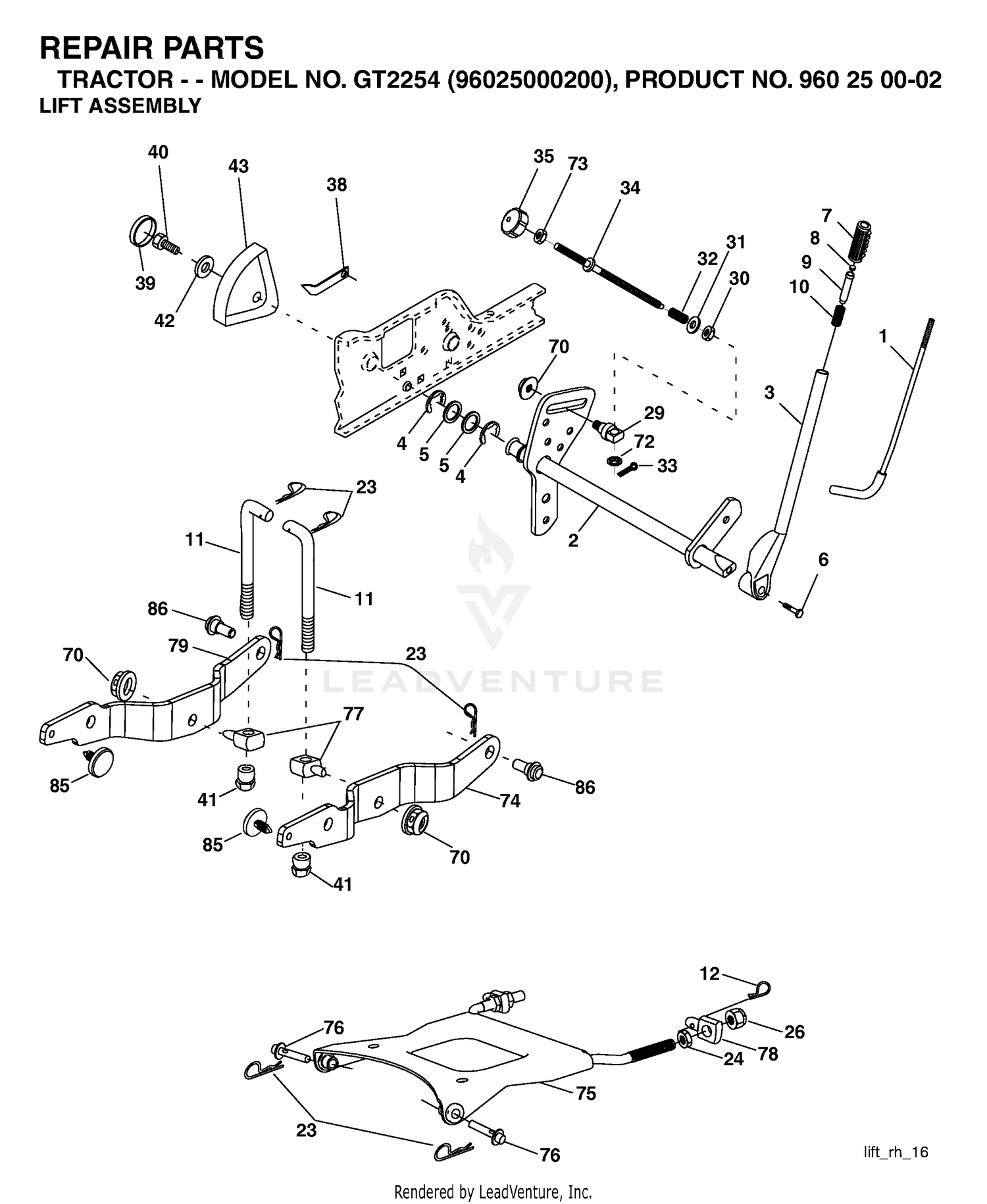

| Ref | Part Number | Description |
|---|
| 1 |
117-8320 |
SADDLE ASM Price: $3,431.83 |
| 1 |
532121006 |
LEVER ROD LT Price: $24.99 |
| 2 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
532159189 |
LEVER ASSY-LIFT RH Price: $79.99 |
| 4 |
108-0657 |
PIN-FLAG Price: $39.42 |
| 4 |
812000022 |
E-RING Price: $3.99 |
| 5 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 5 |
819292016 |
Washer 29/32 x 1 - 1/4 x 16 Ga. Price: $6.99 |
| 6 |
3233-32 |
BOLT-CARRIAGE Price: $8.48 |
| 6 |
871110624 |
Bolt, Fin Hex 3/8-16 x 1-1/12 Price: $2.99 |
| 7 |
117-8305-03 |
SADDLE-PIVOT Price: $20.05 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
325-7 |
SCREW-HH Price: $1.53 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 10 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 10 |
532183894 |
SPRING 0.620D X 2.125 Price: $4.99 |
| 11 |
532181576 |
LIFT LINK This part replaces 532175375. Price: $9.99 |
| 12 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 23 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 24 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 26 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 29 |
532150233 |
TRUNNION Price: $9.99 |
| 30 |
532110807 |
NUT T Price: $3.99 |
| 31 |
819131016 |
WASHER Price: $2.99 |
| 32 |
532137150 |
SPRING.COMP.INF.H Price: $4.99 |
| 33 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 34 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $5.99 |
| 35 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 38 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 39 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 40 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 41 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 42 |
819112410 |
WASHER Price: $3.99 |
| 43 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 70 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 72 |
532110452 |
NUT PUSH M Price: $2.99 |
| 73 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 74 |
532187277 |
ARM.SUSP.REAR.RH Price: $37.99 |
| 75 |
532175805 |
PLATE ASM SUSP FRONT Price: $69.99 |
| 76 |
532175560 |
PIN.FLANGE Price: $11.99 |
| 77 |
532176205 |
TRUNNION Price: $6.99 |
| 78 |
532175689 |
TRUNNION Price: $3.99 |
| 79 |
532187276 |
ARM SUSPENSION LH Price: $35.99 |
| 85 |
532189013 |
INSERT WEAR (3 2) Price: $6.99 |
| 86 |
532188528 |
BOLT.SHOULDER Price: $5.99 |
