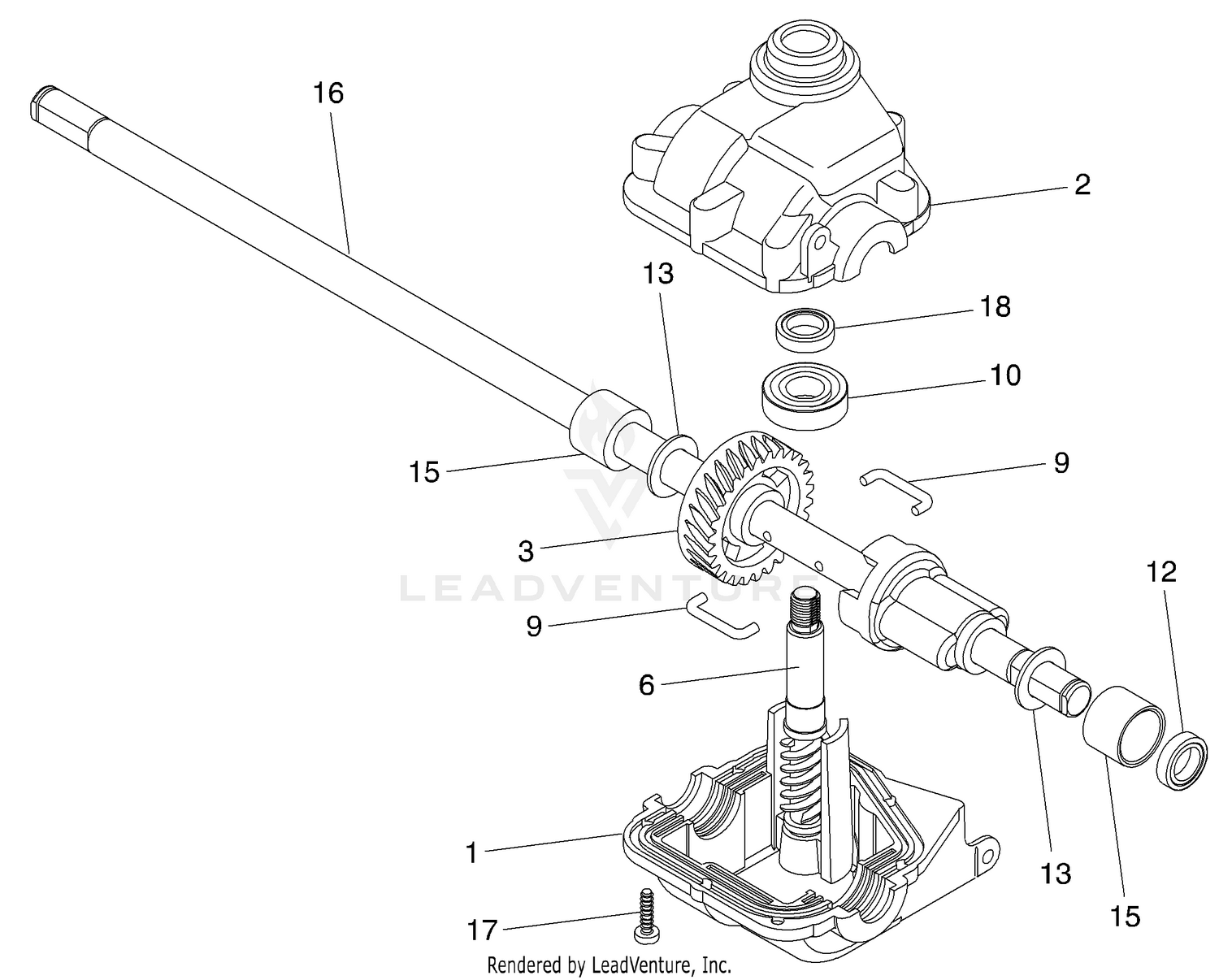

Gear Case Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 98-7697 | BOLT Price: $1.08 |
| 3 | 532187532 | GEAR.24.TOOTH.WALK.MOWER Price: $11.99 |
| 6 | 532187533 | SHAFT INPUT Price: $24.99 |
| 9 | 532183505 | WIRE, FORMED (15966) Price: $5.99 |
| 10 | 532183506 | BEARING Price: $5.99 |
| 12 | 532183508 | SEAL.OUTPUT.SHAFT Price: $9.99 |
| 13 | 532183509 | WASHER Price: $3.99 |
| 15 | 532183511 | BUSHING Price: $4.99 |
| 16 | 532191249 | RP.SHAFT.OUTPUT.RGD.VS/EZ This part replaces 532187534. Price: $54.99 |
| 17 | 532183513 | SCREW Price: $3.99 |
| 18 | 532183514 | SEAL INPUT SHAFT Price: $6.99 |
