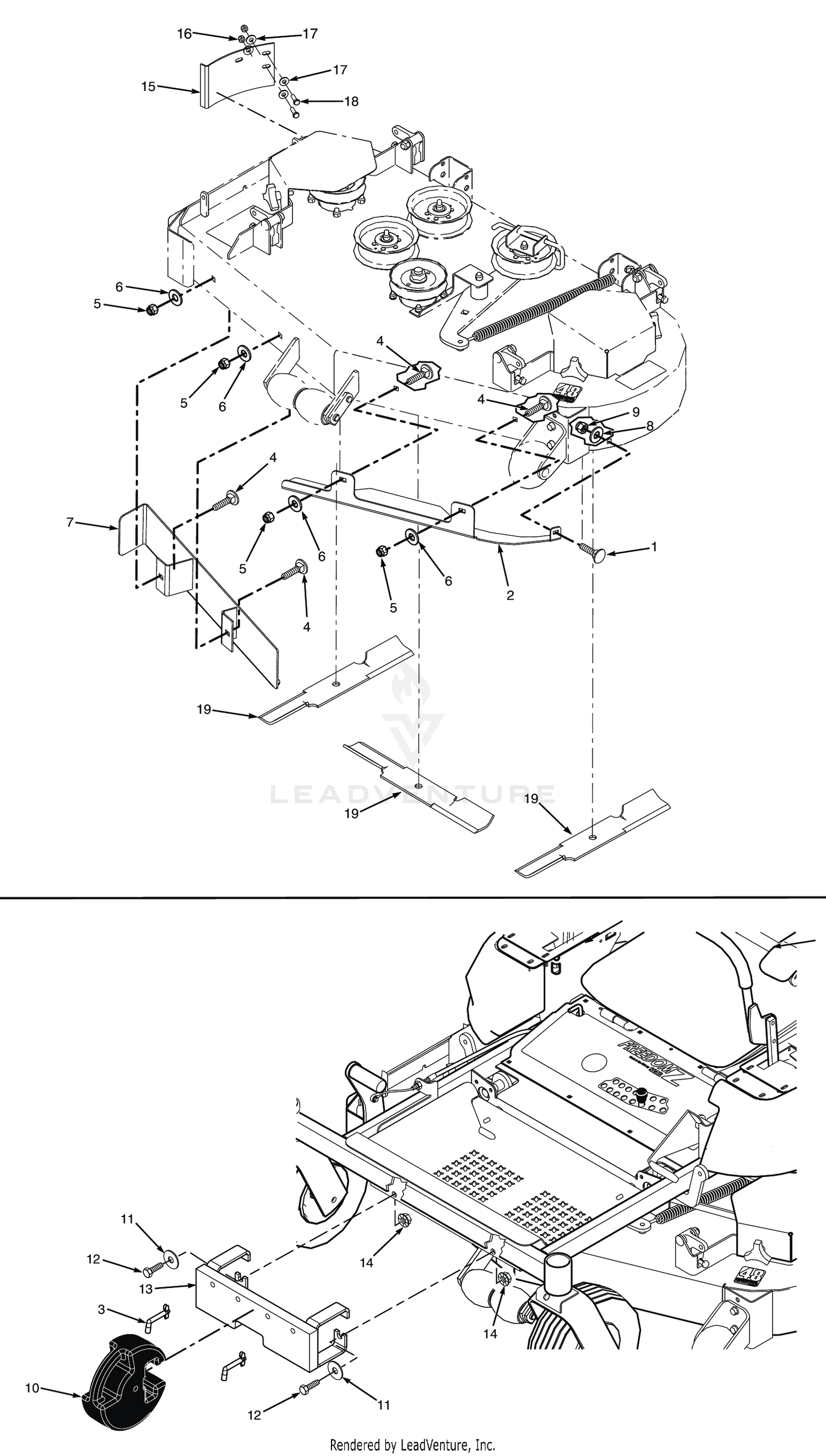

| Ref | Part Number | Description |
|---|
| 1 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 2 |
424745 |
Baffle, LH - 52" Deck Price: Call Us |
| 2 |
425267 |
Baffle, LH - 61" Deck Price: Call Us |
| 3 |
485172 |
Pin, Weight Retention Price: Call Us |
| 4 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 5 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 5 |
427337 |
Filler Plate - 61 Price: Call Us |
| 6 |
04040-13 |
Flat Washer, 1/2 (.562 x 1.375 x .109) Price: Call Us |
| 7 |
451958 |
Baffle, Weldment, RH - 52" Deck Price: Call Us |
| 7 |
452108 |
Baffle, Weldment, RH - 61" Deck Price: Call Us |
| 8 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V) Price: Call Us |
| 9 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 10 |
484758 |
Weight Price: Call Us |
| 11 |
04040-13 |
Flat Washer, 1/2 (.562 x 1.375 x .109) Price: Call Us |
| 12 |
04001-70 |
Bolt, Hex Head 1/2-13 x 1-1/4" Price: Call Us |
| 13 |
452419 |
Support Weldment, Weight Mounting Price: Call Us |
| 14 |
04019-06 |
Nut, Hex Serrated Flange 1/2-13 Price: Call Us |
| 15 |
427389 |
Filler Plate - 52 Price: Call Us |
| 16 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 17 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 18 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 19 |
481711 |
Cutter Blade 18" Hi Lift (marbane) Price: Call Us |
