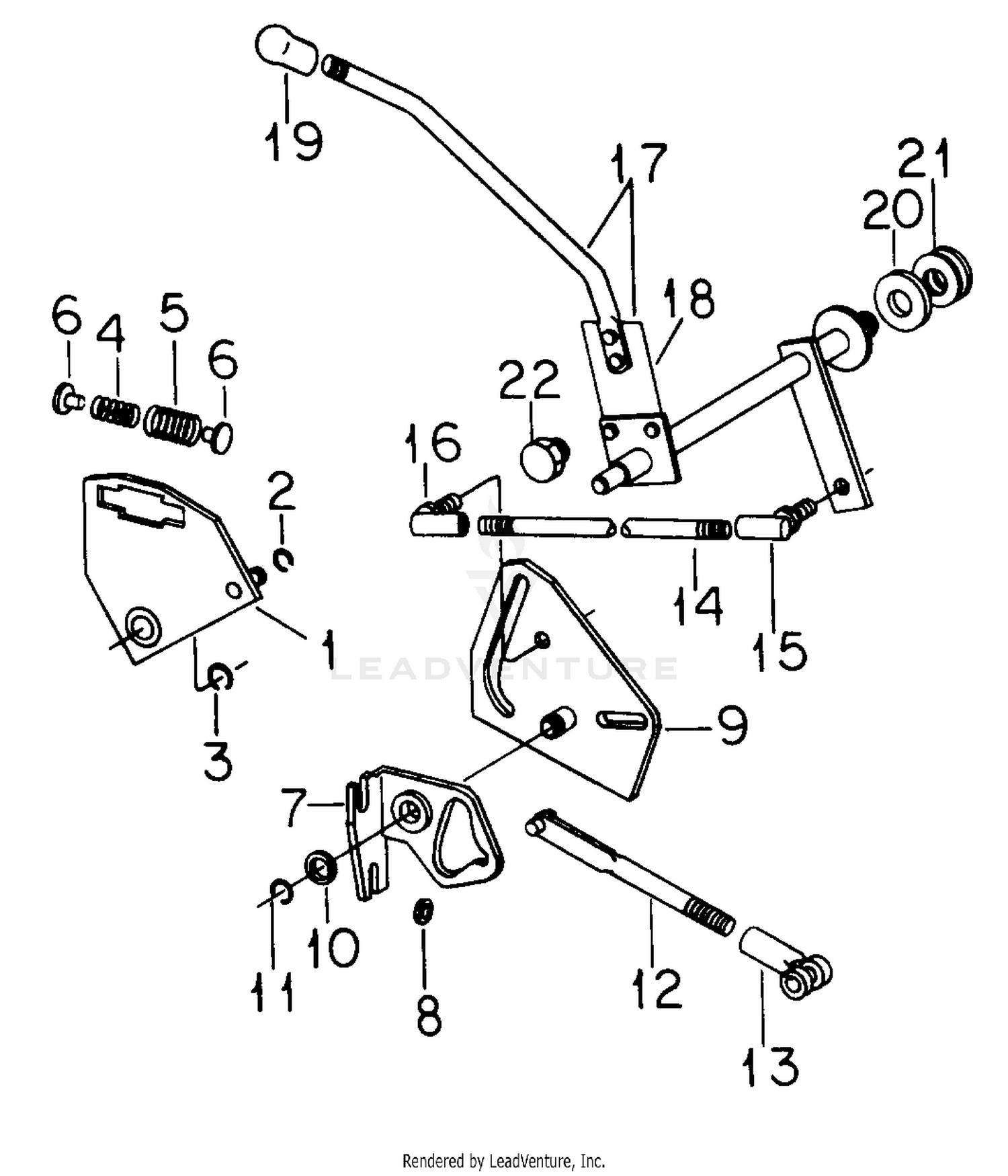

| Ref | Part Number | Description |
|---|
| 1 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 1 |
603001818 |
WASHER Price: $1.99 |
| 1 |
903-0194 |
DAMPER PLATE ASSEMBLY Not Available This part replaces 703-0194. Price: |
| 2 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 2 |
603001730 |
BOLT, SOLENOID, STOP, D722 Price: $4.99 |
| 2 |
716-3000 |
RETAINING RING Not Available Price: |
| 3 |
603001729 |
SOLENOID-STOP Price: $999.99 |
| 3 |
86-1480 |
WASHER Price: $4.82 |
| 3 |
916-0115 |
SNAP RING FOR .625 DIA SHAFT Not Available This part replaces 716-0115. Price: |
| 4 |
603001815 |
STAY-SOLENOID Price: $74.99 |
| 4 |
86-1700 |
SPINDLE PULLEY ASM *B Price: $105.86 |
| 4 |
932-3012 |
COMPRESSION SPRING This part replaces 732-3012. Price: $6.10 |
| 5 |
253-154 |
SEAL-OIL Price: $5.48 |
| 5 |
603001816 |
BALL-CHECK-D722CB Price: $6.99 |
| 5 |
932-3013 |
COMPRESSION SPRING This part replaces 732-3013. Price: $6.26 |
| 6 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 6 |
711-3033 |
Pin, Damper Spring Guide Price: $13.56 |
| 7 |
69-1530 |
HOUSING-SPINDLE Price: $227.62 |
| 7 |
703-0196 |
BRACKET-CAM PIVOT Not Available Price: |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 9 |
703-0198A |
CAM ASSEMBLY Not Available This part replaces 703-0198. Price: |
| 9 |
95-4387 |
SPINDLE SHAFT ASM - CTR Price: $155.61 |
| 10 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 92-9800. Price: $18.44 |
| 10 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces IH-394049-R1. Price: $4.37 |
| 11 |
716-0865 |
Ring, Cam Retaining Price: $3.86 |
| 11 |
86-0010-03 |
BLADE-19" This part replaces 86-0010. Price: $32.86 |
| 12 |
703-0232 |
ROD ASSEMBLY-CONTROL Not Available Price: |
| 12 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 13 |
719-3013 |
Clevis, 3/8 Rod End Price: $24.95 |
| 14 |
747-3026 |
CONNECTING ROD Not Available Price: |
| 14 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 15 |
923-3011 |
JOINT-BALL-5/16-24 (R.H.) This part replaces 723-3011. Price: $32.80 |
| 16 |
923-3012 |
Ball Joint 5/16-24 Thd. This part replaces 723-3012. Price: $37.06 |
| 17 |
703-0201 |
SHAFT ASSEMBLY-CROSS Not Available Price: |
| 19 |
920-3000 |
CONTROL KNOB Not Available This part replaces 720-3000. Price: |
| 20 |
723-3013 |
FRICTION DISC Not Available Price: |
| 21 |
936-3022 |
BELL WASHER Not Available This part replaces 736-3022. Price: |
| 22 |
710-3033 |
BOLT Not Available Price: |
