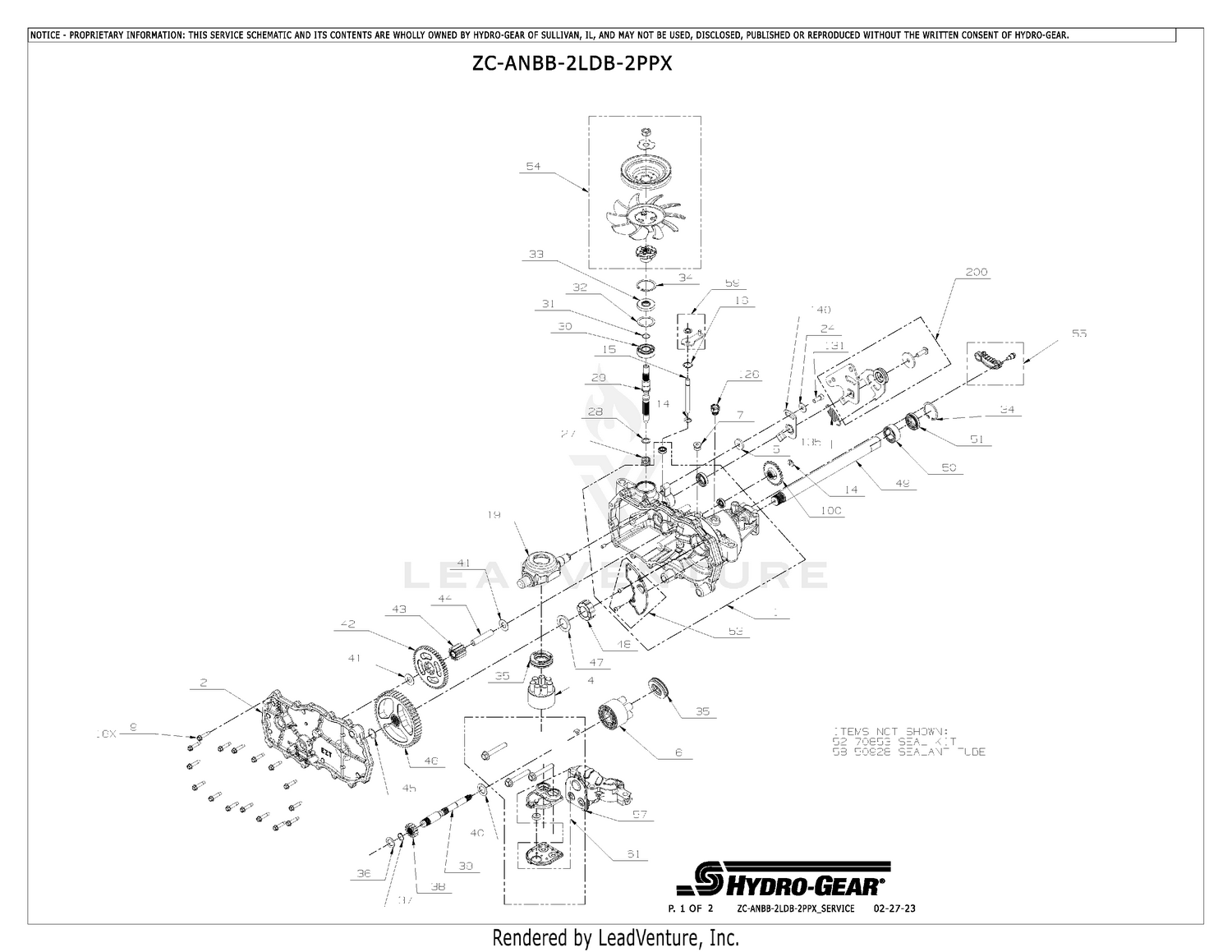

09684200 - EZT Series

09684200 - EZT Series

Parts (39)

RefPart NumberDescription
1 21543947 ASSEMBLY, MAIN HOUSING Price: $308.60
2 21543989 ASSEMBLY, SIDE HOUSING Price: $132.95
4 21543921 ASSY, BLOCK 7 PISTON Price: $112.45
5 21543870 SPACER Price: $9.95
6 21543889 KIT, 10 CC BLOCK Price: $79.95
7 08613700 PLUG, STEEL (WITH SEAL) Price: Call Us
9 27105900 SCREW,HEX WASHER 1/4-20X1.125 Price: $1.95
14 08622500 RING. RETAINING Price: Call Us
15 21543844 ROD, BYPASS Price: $7.54
16 21543846 RING, RET .750 Price: $1.55
19 21543783 TRUNNION, SWASHPLATE Price: $56.95
24 08611200 WASHER Price: Call Us
27 08621500 SPRING. BLOCK Price: Call Us
28 08609400 WASHER. THRUST .59 X .79 X .04 Price: $1.45
29 21543785 SHAFT, INPUT Price: $82.45
30 21543738 BRG, BALL 17X40X12 Price: $16.45
31 21543960 RING, RET WIRE .561 ID Price: $1.45
32 21543773 WASHER 1.23X1.56X.04 Price: $5.45
33 21543816 SEAL, LIP 17X40X7 Price: $11.95
34 21543741 RING, RET 1.56 INT Price: $6.45
35 08609100 BEARING. THRUST 30 X 52 X 13 Price: $14.95
36 21543708 WASHER .63X1.0X.05 Price: $3.45
37 21543704 RING, RET 62 EXT Price: $1.45
38 21543807 GEAR, 13T PINNION Price: $4.45
39 21543859 SHAFT, MOTOR Price: $70.75
40 21543788 WASHER .71 X 1.16 X .04 Price: $2.95
41 21543724 WASHER .5X1.0X.032 Price: $2.95
42 21543806 GEAR, 10T/48T Price: $25.55
43 21543781 GEAR, 10T JACKSHAFT Price: $11.35
52 21543935 KIT, SEALS AND RETAINING Price: $63.95
53 21543988 KIT, EXPANSION PLATE RH Price: $11.95
54 21543736 FAN PULLEY KIT 4.5X1.625 Price: $67.95
55 51514100 KIT, LH-BRAKE ARM EZT This part replaces 00362500. Price: $51.95
57 21500060 KIT-CENTER SECTION W/FILTER RH Price: $143.45
58 21543771 SEALANT TUBE 10.1OZ. Price: $132.95
61 21543958 KIT, FILTER Price: $15.45
100 21543851 DISC, COG BRAKE Price: $17.45
135 TCU19204 SPRING, EXTENSION Price: Call Us
140 21543866 ARM, NEUTRAL RIGHT Price: $20.45
