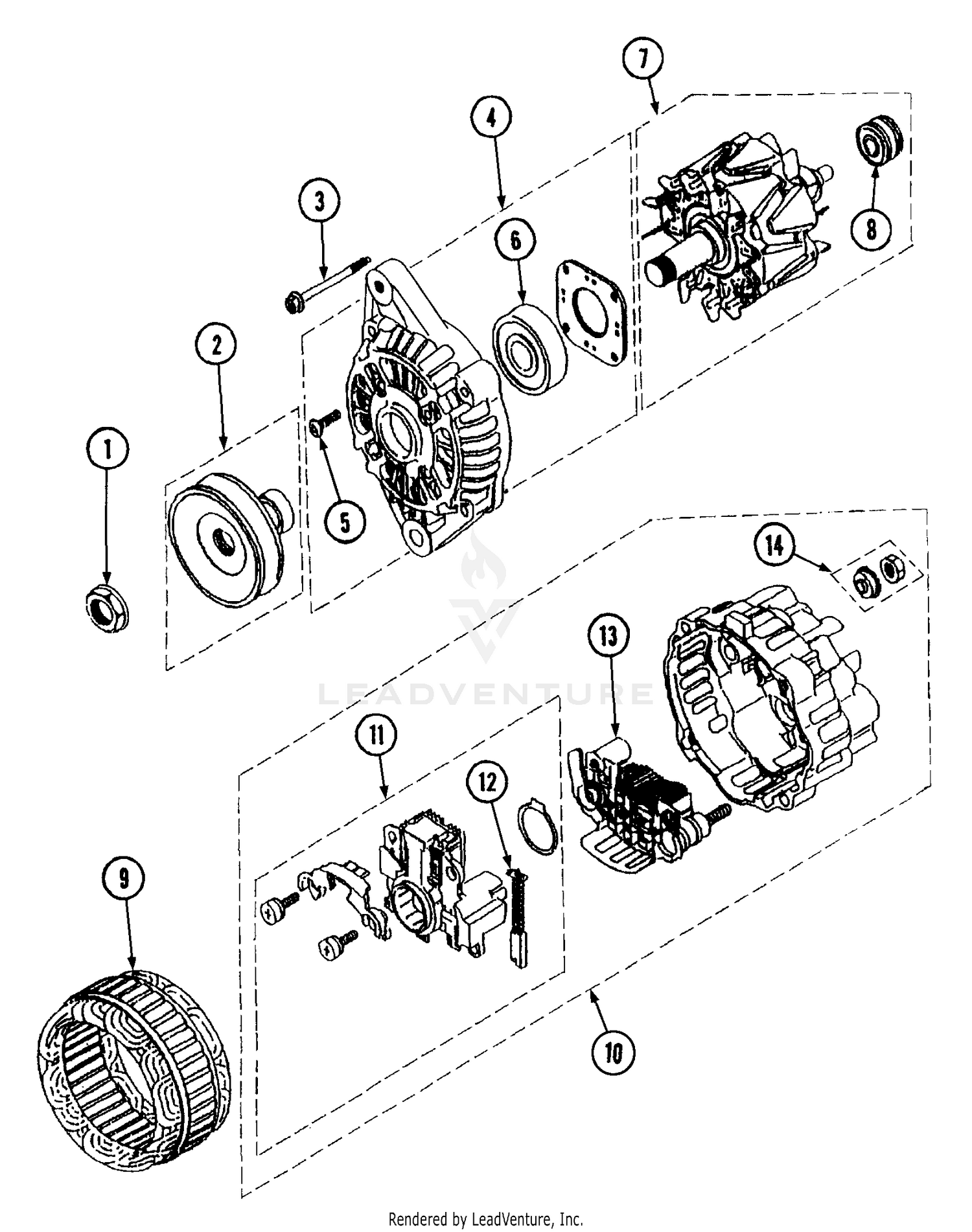

| Ref | Part Number | Description |
|---|
| 1 |
3220-3 |
NUT-HJ Price: $0.28 |
| 1 |
432337X421 |
WHEEL ASSEMBLY LH Price: Call Us |
| 1 |
MA-MM502565 |
NUT SET Not Available Price: |
| 2 |
MA-MM502578 |
PULLEY SET Not Available Price: |
| 3 |
MA-MD611556 |
BOLT SET-ALTERNATO Not Available This part replaces MA-MM502566. Price: |
| 4 |
MA-MM502597 |
Bracket Ass'y., Front Price: Call Us |
| 5 |
93-6337 |
SCREW Price: $9.77 |
| 5 |
MA-MM502568 |
Screw Set Price: Call Us |
| 6 |
99-8701 |
ROTATING KIT This part replaces 93-6322. Price: $1,722.95 |
| 6 |
MA-MM502569 |
Bearing, Front Price: Call Us |
| 7 |
105-2856 |
PISTON-SERVO Price: $739.56 |
| 7 |
MA-MM502570 |
Rotor Ass'y. Price: Call Us |
| 8 |
94-3032 |
FOLLOWER-PISTON Price: $574.71 |
| 8 |
MA-MD611928 |
BEARING-ALT REAR Not Available This part replaces MA-MM502571. Price: |
| 9 |
94-3033 |
PLATE-COVER Price: $121.09 |
| 9 |
MA-MM502591 |
STATOR ASS'Y. Not Available Price: |
| 10 |
MA-MM502598 |
BRACKET ASS'Y., REAR Not Available Price: |
| 11 |
MA-MM502585 |
Regulator Set Price: Call Us |
| 12 |
MA-A647X50170 |
BRUSH ASSEMBLY-ALTERNAT Not Available This part replaces MA-MM502577. Price: |
| 13 |
105-9853 |
PLATE-COVER Price: $142.29 |
| 13 |
MA-MM502599 |
RECTIFIER Not Available Price: |
| 14 |
94-3026 |
CAMPLATE ASM Price: $1,164.81 |
| 15 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 16 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 17 |
105-2858 |
VALVE-RELIEF Price: $1,100.81 |
| 18 |
107-1561 |
SEAL KIT Price: $494.78 |
| 19 |
323-15 |
SCREW-HH Price: $1.53 |
| 20 |
323-16 |
SCREW-HH Price: $2.89 |
| 21 |
93-6324 |
SCREW Price: $8.89 |
| 22 |
99-8704 |
PLATE-VALVE This part replaces 93-6370. Price: $457.47 |
| 24 |
105-2904 |
BACKPLATE Price: $1,515.44 |
| 25 |
93-6344 |
DRIVESHAFT Price: $967.93 |
| 27 |
3217-5 |
NUT-HEX Price: $0.25 |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
60-6240 |
WASHER This part replaces 94-3007. Price: $15.20 |
| 30 |
93-6375 |
KEY Price: $18.32 |
| 32 |
95-2110 |
ADAPTOR Price: $1,026.64 |
| 33 |
105-2862 |
ARM-CONTROL Price: $36.88 |
| 34 |
93-6306 |
CONTROL ASM Price: $1,822.55 |
| 35 |
93-6365 |
GEROTER-INNER Price: $124.40 |
| 36 |
93-6364 |
GEROTER-OUTER Price: $152.48 |
| 37 |
94-3041 |
ORIFICE-CONTROL (.028 DIA) Price: $26.81 |
| 38 |
74-9280 |
PLUG ASM Price: $35.55 |
| 39 |
105-2913 |
VALVE-BYPASS Price: $91.51 |
| 40 |
94-3030 |
WASHER Price: $6.24 |
| 41 |
93-6336 |
WASHER Price: $3.19 |
