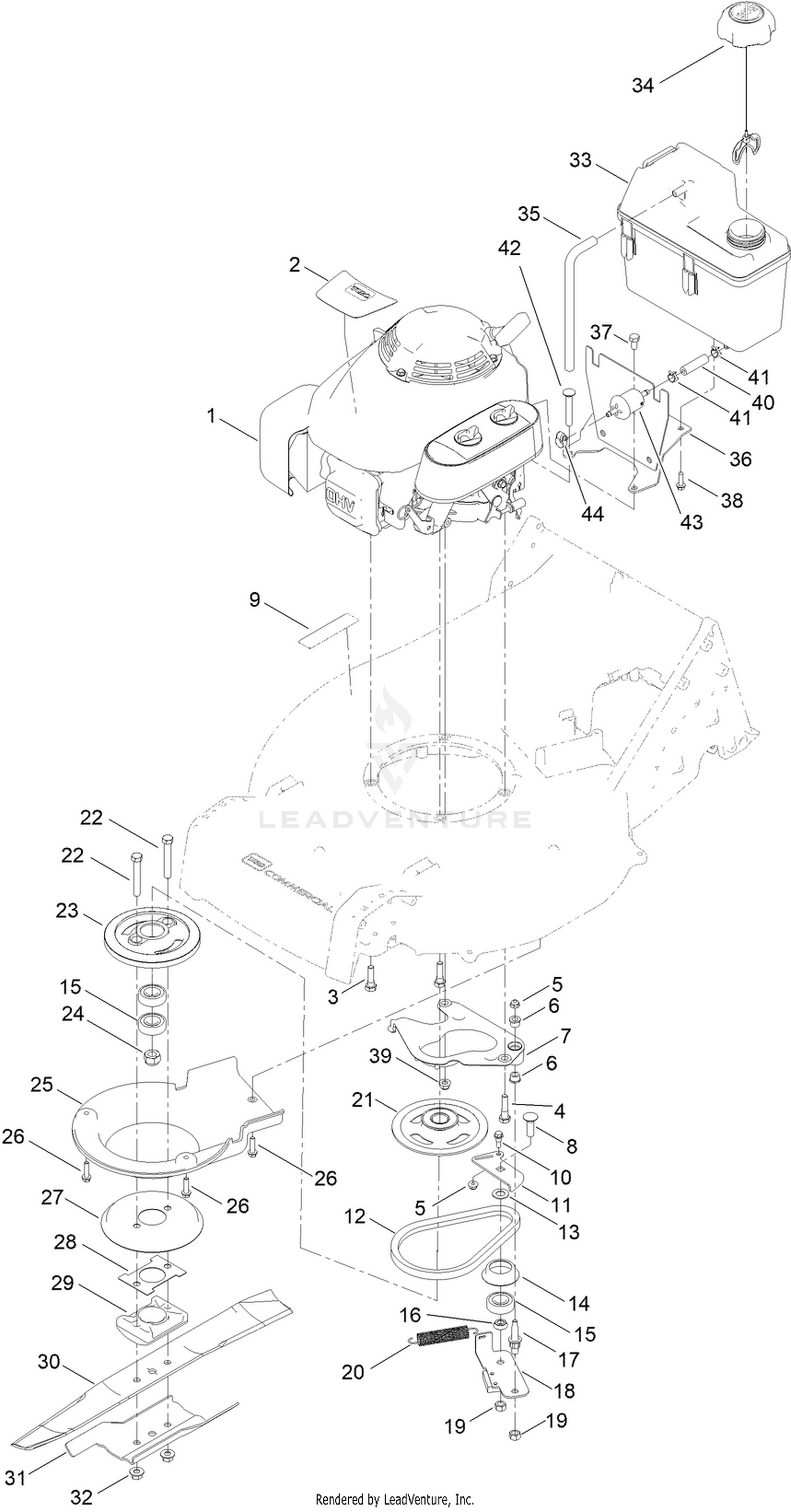

Engine and Blade Assembly
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 125-8405 | DECAL-ENGINE, HONDA Price: $6.99 |
| 3 | 125-1074 | SCREW-HHSH Price: $3.19 |
| 4 | 103-2678 | SCREW-SHOULDER Price: $4.99 |
| 5 | 104-7201 | NUT-HF Price: $0.69 |
| 6 | 130-2377 | BUSHING-FLANGE Price: $1.79 |
| 7 | 130-2375 | PLATE-ANCHOR Price: $45.99 |
| 8 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 9 | 133-8062 | DECAL-ARRESTOR, SPARK Price: $2.39 |
| 10 | 42-3560 | BOLT-SHOULDER Price: $4.85 |
| 11 | 125-8446 | PLATE-GUIDE, BBC Price: $8.99 |
| 12 | 110-1790 | BELT Price: $28.99 |
| 13 | 605256 | SPACER Price: $1.79 |
| 14 | 138-3217 | RETAINER-BELT Price: $2.99 |
| 15 | 38-7820 | BEARING-BALL Price: $13.99 |
| 16 | 107-0758 | SPACER-BEARING Price: $2.89 |
| 17 | 130-9699 | BOLT-SHOULDER Price: $6.69 |
| 18 | 125-1063 | PLATE-BRAKE Price: $21.99 |
| 19 | 603773 | LOCKNUT This part replaces 125-5069. Price: $2.09 |
| 20 | 108-3792 | SPRING-TENSION, BRAKE Price: $10.99 |
| 21 | 117-5970 | PULLEY Price: $34.99 |
| 22 | 3211-42 | SCREW-HH Price: $4.87 |
| 23 | 126-8108 | DRUM Price: $52.99 |
| 24 | 108-9342 | NUT-HEX Price: $3.49 |
| 25 | 125-1006 | COVER Price: $16.99 |
| 26 | 32144-86 | SCREW-HWHTF Price: $1.29 |
| 27 | 138-3225 | DISK Price: $11.99 |
| 28 | 130-6404-01 | SPACER-DRIVER, BLADE Price: $10.99 |
| 29 | 107-7487 | SUPPORT-BLADE Price: $21.99 |
| 30 | 133-8183-03 | BLADE-21IN, RECYCLING Price: $20.99 |
| 31 | 125-1069-03 | ACCELERATOR-BLADE Price: $15.99 |
| 32 | 127-6852 | NUT-FLANGE, LOCK Price: $1.79 |
| 33 | 114-0280 | TANK-FUEL Price: $138.99 |
| 34 | 137-4127 | CAP-FUEL Price: $22.05 |
| 35 | 115-0962 | HOSE-VENT, CANISTER Price: $8.99 |
| 36 | 119-7837-03 | MOUNT-TANK Price: $69.99 |
| 37 | 3210-2 | SCREW-HH Price: $0.41 |
| 38 | 46-8091 | SCREW-HWH Price: $3.59 |
| 39 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 40 | 119-7856 | HOSE-FUEL Price: $4.89 |
| 41 | 2412-98 | CLAMP-HOSE Price: $1.39 |
| 42 | 3230-7 | BOLT-CARR Price: $0.88 |
| 43 | 139-0717 | FILTER-FUEL Price: $11.99 |
