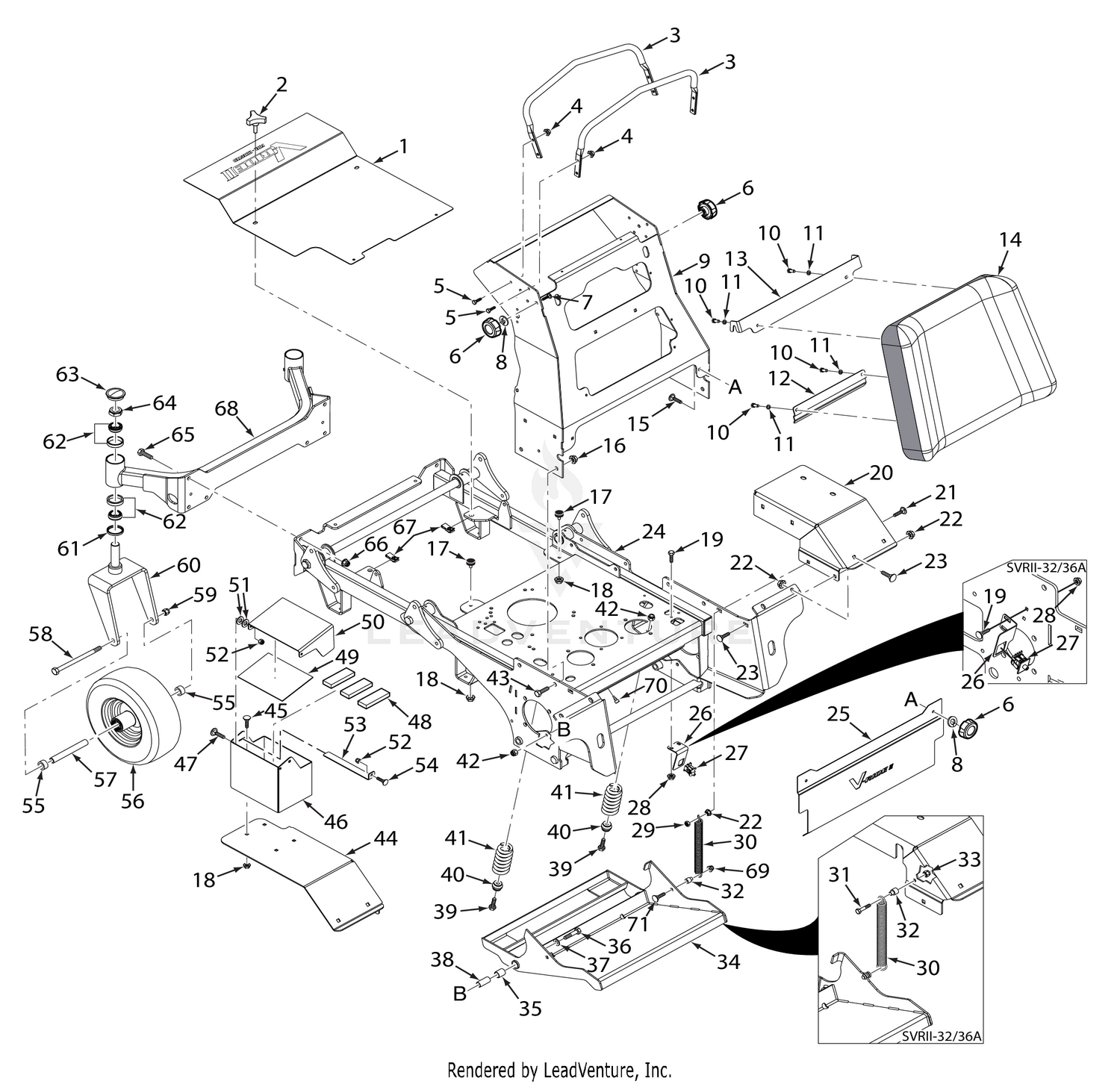

| Ref | Part Number | Description |
|---|
| 1 |
463315 |
Belt Cover w/Decals Price: Call Us |
| 2 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 3 |
427189 |
Reference Bar Price: Call Us |
| 4 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 5 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 6 |
481885-06 |
Knob, 5/16-18 Price: Call Us |
| 7 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 8 |
04024-03 |
Nut, Push-On 5/16-18 Price: Call Us |
| 9 |
452872 |
Handlebar Weldment, SVRII-36 Price: Call Us |
| 10 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 11 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 12 |
427292 |
Bracket, Knee Pad - Lower Price: Call Us |
| 13 |
427289 |
Bracket, Knee Pad - Upper Price: Call Us |
| 15 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 16 |
04112-05 |
Locknut, 1/2-13 Spiral Lock Price: Call Us |
| 17 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 18 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 19 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 20 |
428068 |
Fender, RH - (32/36) Price: Call Us |
| 21 |
04003-31 |
Bolt, Carriage 3/8-16 x 3/4" Price: Call Us |
| 22 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 23 |
04003-31 |
Bolt, Carriage 3/8-16 x 3/4" Price: Call Us |
| 24 |
463172 |
Mainframe Assy. - SVRII- (32/36) Price: Call Us |
| 25 |
427472 |
Guard, Foot - SVRII-36 Price: Call Us |
| 26 |
427481 |
Switch Bracket, OPC Switch -SVRII-36 Price: Call Us |
| 27 |
484497 |
Switch, Double Pole OPC - SVRII-36 Price: Call Us |
| 28 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 29 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 30 |
48755 |
Spring,Counter Balance Price: Call Us |
| 31 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 32 |
43602 |
Spacer, Pump Dampener Price: Call Us |
| 33 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 35 |
483453-04 |
Bearing, .750 I.D. Plastic Price: Call Us |
| 36 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 37 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 38 |
43572 |
Yoke, Front Caster Wheel Price: Call Us |
| 39 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 40 |
43867 |
Mount, Spring Price: Call Us |
| 41 |
484479 |
Spring, Suspension Platform Price: Call Us |
| 42 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 43 |
04017-36 |
Capscrew, 1/2-13 x 1" Serrated Flange Hex Head Price: Call Us |
| 44 |
428067 |
Fender, LH - (32/36) Price: Call Us |
| 45 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 46 |
427316 |
Battery Box, Lower Price: Call Us |
| 47 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 48 |
48661 |
PAD, BATTERY SUPPORT Price: Call Us |
| 49 |
485692 |
Insulation, Battery Cover (Gas Only) Price: Call Us |
| 50 |
428066 |
Battery Box, Upper Price: Call Us |
| 51 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 52 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 53 |
427318 |
Battery Box Latch Price: Call Us |
| 54 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 55 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 56 |
921D |
Caster Wheel Assembly, 11 x 4.0-5 (52V) Price: Call Us |
| 57 |
43844 |
Sleeve, Caster Wheel (52V) Price: Call Us |
| 58 |
04001-80 |
Bolt, Hex Head 1/2-13 x 6-1/2" (52V) Price: Call Us |
| 59 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 60 |
453208 |
Yoke Weldment (32/36) Price: Call Us |
| 61 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 62 |
48668 |
Bearing Set Price: Call Us |
| 63 |
484195 |
Cap, Grease Price: Call Us |
| 64 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 65 |
04001-28 |
BOLT, HEX HEAD, 7/16-14 X 1-1/4 Price: Call Us |
| 66 |
04117-05 |
Nut, 7/16-14 Flange Elastic Stop Price: Call Us |
| 67 |
04110-04 |
U-Nut, 3/8-16 Price: Call Us |
| 68 |
452870 |
Caster Support Weldment (36) Price: Call Us |
| 69 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 70 |
485846 |
BUMPER, PLUG Price: Call Us |
