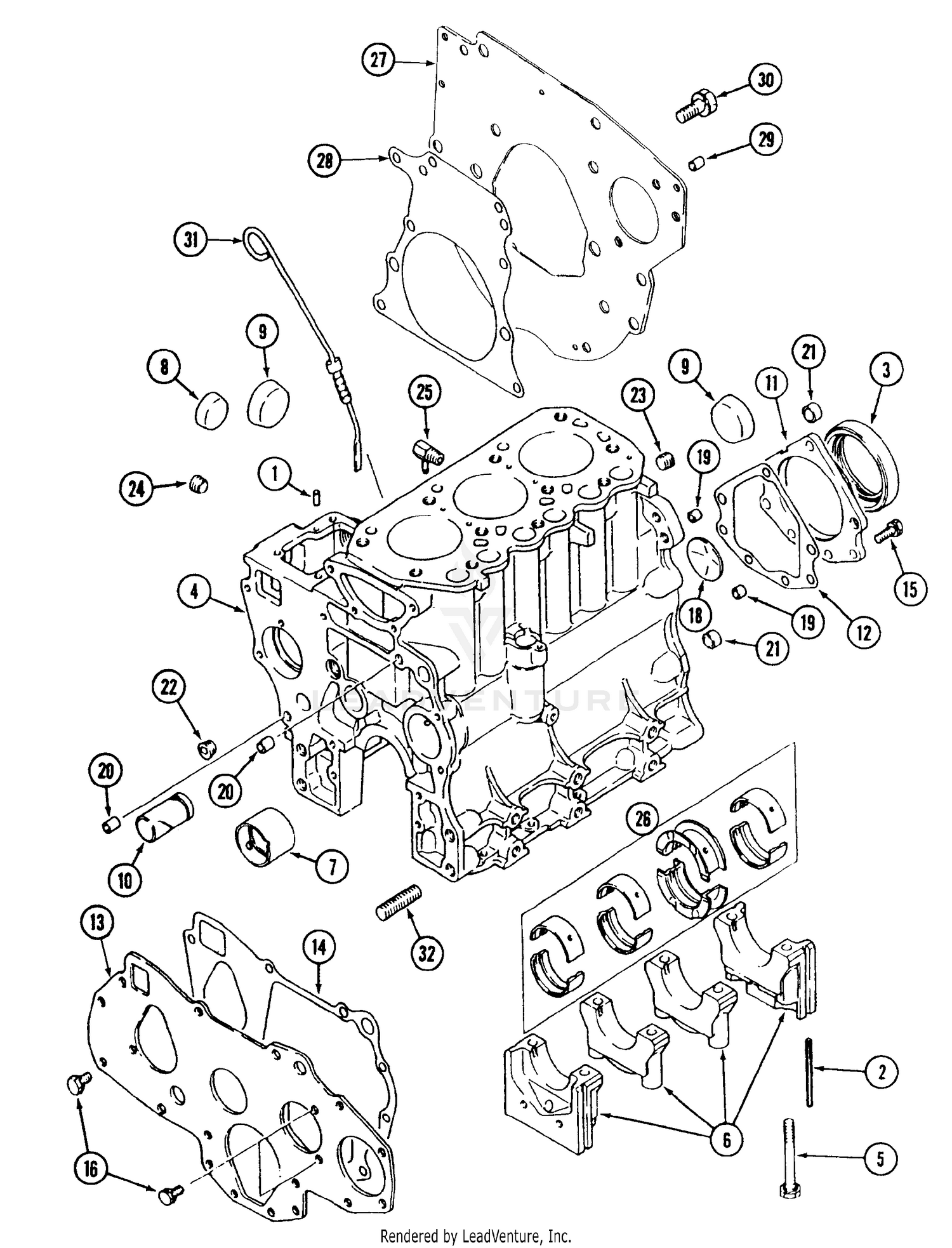

Crankcase 30HP Engine 7300 S/N 21933 & Up
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-7575 | BOLT Price: $4.00 |
| 1 | MA-MM409645 | PIN,DOWEL Not Available Price: |
| 2 | 99-7570 | BEARING-ROLLER, TAPER Price: $61.91 |
| 2 | MA-MM406228 | SEAL Not Available Price: |
| 3 | 95-7535 | CASE-BEARING Price: $104.73 |
| 3 | MA-MM406242 | OIL SEAL Not Available Price: |
| 4 | 106-1065 | O-RING This part replaces 99-7571. Price: $9.02 |
| 5 | 99-7572 | COLLAR-SEAL, OIL Price: $21.01 |
| 5 | MA-31A07-00800 | BOLT-BEARING CAP Not Available This part replaces MA-MM406217. Price: |
| 6 | None | Cap Ass'y., Bearing |
| 6 | 106-1066 | O-RING This part replaces 99-7573. Price: $5.71 |
| 7 | 99-7574 | SEAL-OIL Price: $4.42 |
| 7 | MA-MM406237 | BUSHING Not Available Price: |
| 8 | 99-7559 | WASHER-LOCK Price: $9.82 |
| 8 | MA-F5014-35000 | PLUG Not Available This part replaces MA-MD000245. Price: |
| 9 | 99-7560 | NUT-LOCK Price: $27.76 |
| 9 | MA-F5014-45000 | CAP Not Available This part replaces MA-MF665543. Price: |
| 10 | 99-7550 | SHIM 0.1 Price: $4.34 |
| 10 | MA-MM430113 | SHAFT Not Available Price: |
| 11 | MA-MM412662 | CASE Not Available Price: |
| 12 | MA-30H07-00201 | GASKET-OIL SEAL Not Available Price: |
| 13 | MA-MM406264 | Plate, Frame Price: $76.71 |
| 14 | MA-30H07-00300 | GASKET Not Available Price: |
| 15 | MA-MF240054 | BOLT Not Available Price: |
| 16 | MA-MF240051 | SCREW Not Available Price: |
| 18 | MA-F5010-45000 | PLUG Not Available This part replaces MA-MF665512. Price: |
| 19 | MA-MS471104 | KNOCK Not Available Price: |
| 20 | MA-MS471105 | BUSHING Not Available Price: |
| 21 | MA-MS471110 | BUSHING Not Available Price: |
| 22 | MA-MS661142 | PLUG,TAPER Not Available Price: |
| 23 | MA-MD040338 | PLUG,TAPER Not Available Price: |
| 24 | MA-MS661141 | PLUG Not Available Price: |
| 25 | MA-31A46-02300 | JOINT-WATER DRAIN Not Available Price: |
| 27 | MA-30H12-00202 | PLATE-ENG REAR MTG Not Available This part replaces MA-30H12-00200. Price: |
| 28 | MA-30H12-00101 | GASKET-REAR PLATE Not Available This part replaces MA-30H12-00100. Price: |
| 29 | MA-MM408240 | PIN Not Available Price: |
| 30 | MA-F1550112030 | BOLT,W/SPRING WASH Not Available This part replaces MA-MF241308. Price: |
| 31 | MA-30H42-00100 | GAUGE,OIL LEVEL Not Available Price: |
| 503215825 | 503215825 | SCREW Price: $2.99 |
