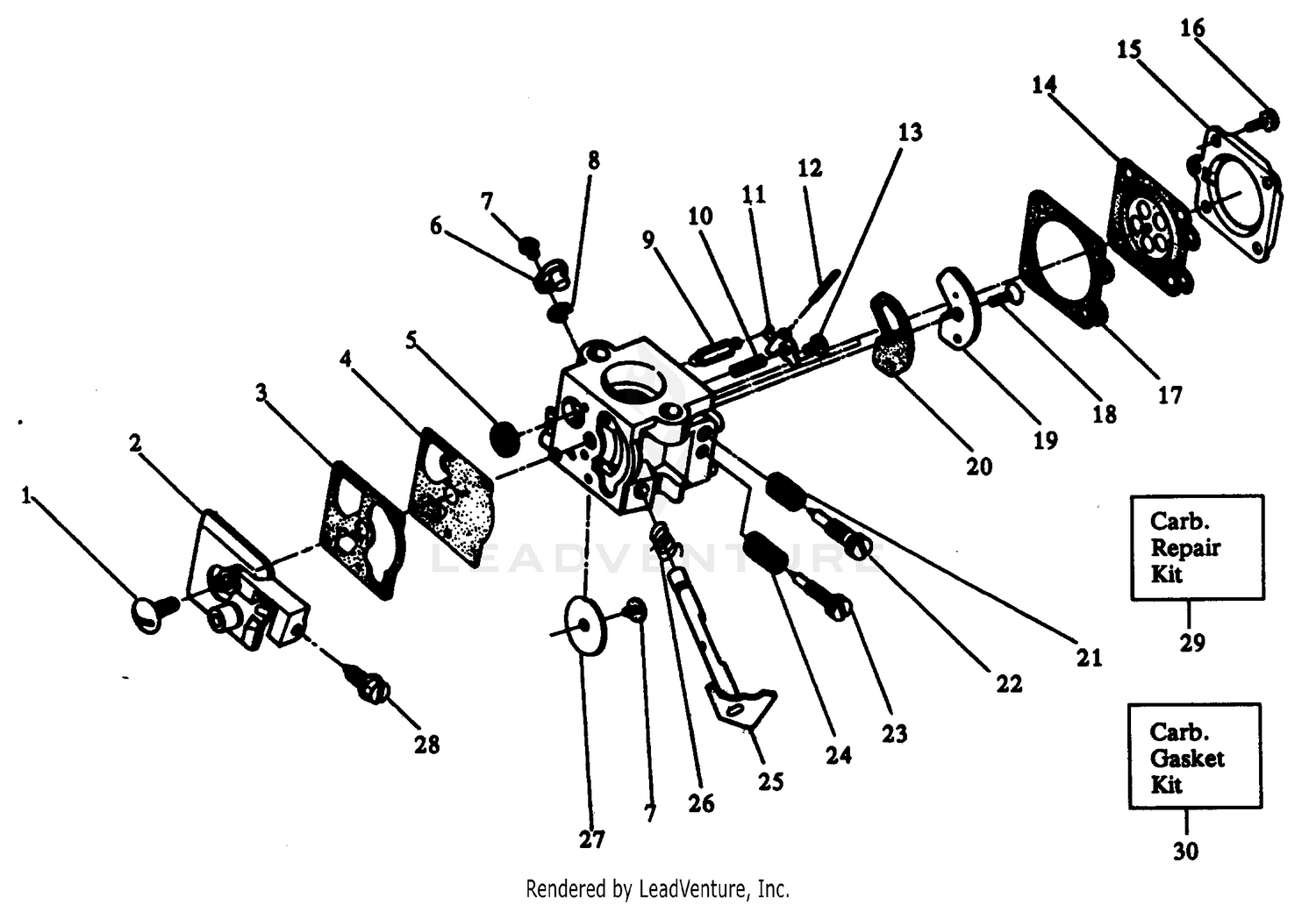

CARBURETOR BREAKDOWN

CARBURETOR BREAKDOWN

Parts (38)

RefPart NumberDescription
1 5-1091 SPACER Price: $4.98
1 530035017 Pump Cover Screw Price: $0.99
2 3217-9 NUT-HH Price: $0.37
2 530035191 Pump Cover Ass'y. (Inc.28) Price: $3.99
3 32544 Lockwasher Price: Call Us
3 504130906 GASKET This part replaces 530035164. Price: $1.99
4 325-14 SCREW-HH Price: $2.64
4 504130807 PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99
5 3-9280-01 DRAWBAR This part replaces 3-9280. Price: $321.93
6 325-17 SCREW-HH Price: $2.90
6 530035193 Swivel Lever Ass'y. Price: $3.33
7 3296-50 NUT-LOCK, NI Price: $2.68
8 3-8448 WASHER-THRUST Price: $2.58
8 530035007 Throttle Shaft Clip Price: Call Us
9 125-5196 BUSHING This part replaces 3-0348. Price: $6.00
10 302-5 FITTING-GREASE Price: $0.59
11 6-1030 HOUSING This part replaces 1-6559. Price: $158.52
12 32146-13 NUT-HEX Price: $3.49
13 3-0293 DISCONTINUED Price: Call Us
13 530035016 Metering Lever Pin Screw Price: $2.99
14 3-2198 HOOK Price: $12.41
14 503896701 DIAPHRAGM This part replaces 530035014. Price: $4.99
15 5-1706 SPRING-EXTENSION Price: $12.91
15 530035149 Metering Diaphragm Cover Price: $3.33
16 147-0660-01 LIFT BAIL ASSY (LONG) This part replaces 28-8720. Price: $235.98
16 530035153 Metering Cover & Throttle Shaft Clip Screw Price: $3.33
17 530035151 Metering Diaphragm Gasket Price: $1.99
19 530035042 Circuit Plate Price: $3.33
20 501781301 GASKET This part replaces 530035147. Price: $0.45
21 530035036 Hi Speed Needle Spring Price: Call Us
22 501782201 H-NEEDLE This part replaces 530035142. Price: $6.30
23 530035141 Idle Needle Price: $2.99
24 530035023 Idle Needle Spring Price: $0.99
25 530035192 Throttle Shaft Ass'y. Price: $3.33
26 530035138 Throttle Return Spring Price: Call Us
27 530035133 Throttle Valve Price: $3.33
28 530035156 Idle Adjustment Screw Price: $1.99
29 530035185 Kwik Repair Kit Price: $24.99
