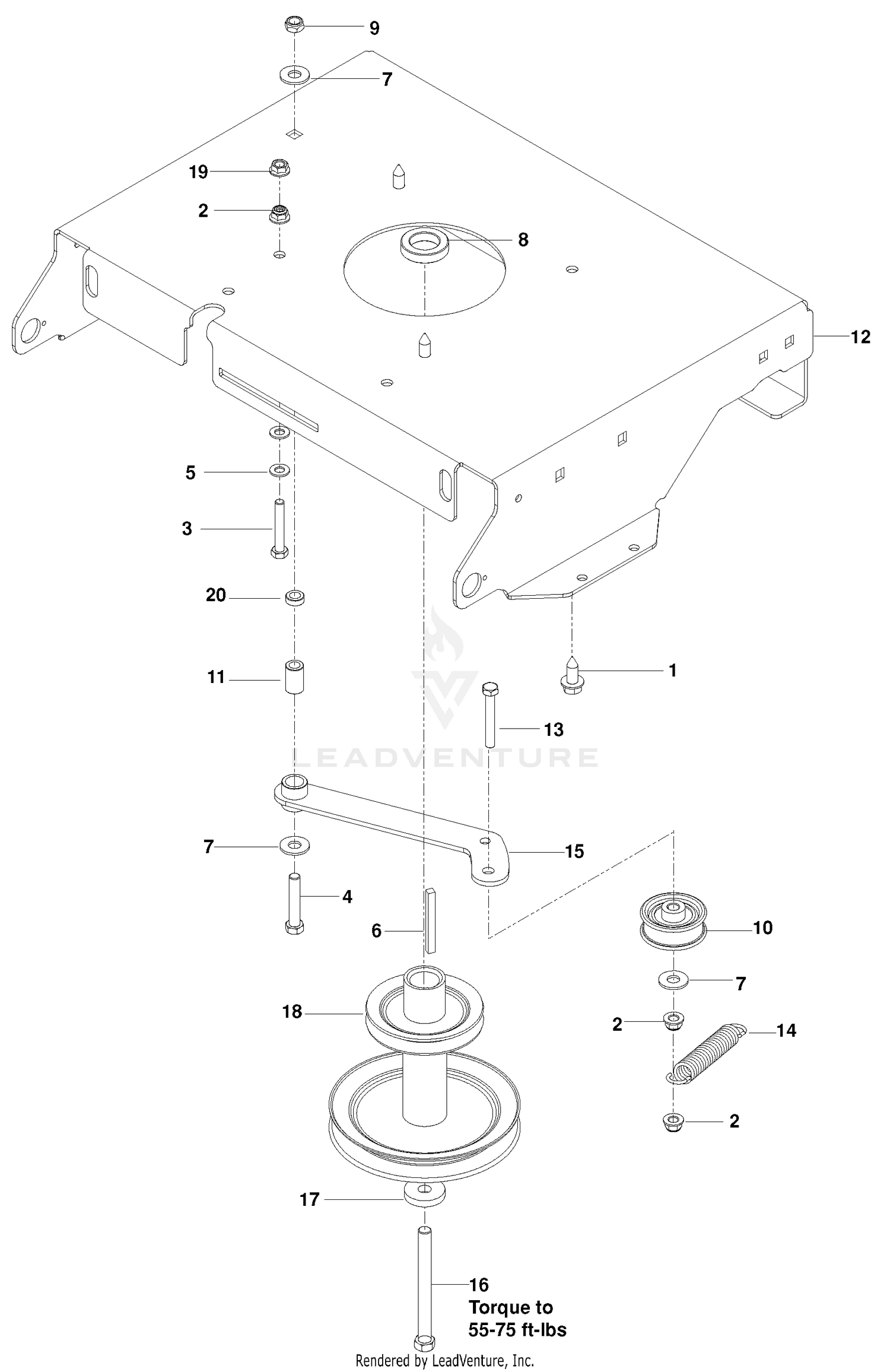

Engine Plate

Engine Plate

Parts (25)

RefPart NumberDescription
1 76-5260 DISCONTINUED Price: Call Us
1 817120616 SCREW 3/8-16X1 This part replaces 532120616. Price: $4.99
2 594944401 NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99
2 76-5270 DISCONTINUED Price: Call Us
3 539976937 HCS 5/16-18X2 Price: $2.99
3 94-3264 PLUG-GLOW This part replaces 76-5280. Price: $57.03
4 539990588 HCS 3/8C X 2 Price: $3.99
4 76-5290 WASHER-SPRING Price: $0.53
5 48-7880 NUT-HEX Price: $0.25
5 596204101 WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99
6 33003-00 NUT-HF This part replaces 65-7980. Price: $0.25
6 539917033 KEY 1/4 SQ X 2-1/2 Price: $2.99
7 3255-7 WASHER-LOCK/EXT This part replaces 76-5310. Price: $1.39
7 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
8 539114387 SPACER Price: $7.99
9 596230801 Nuts This part replaces 539200282. Price: $2.99
10 539120812 PULLEY IDLER Price: $17.99
11 539115270 BUSHING Price: $4.99
12 574355802 PLATE, ENGINE, ORG Price: $139.99
13 596437101 Screws This part replaces 539108396. Price: $2.99
14 539116350 SPRING - 3.50 Price: $7.99
16 574882801 HCS 7/16-20 X 4 GR5 ZD Price: $3.99
17 539115546 WASHER .43X1.38X.25 Price: $3.99
18 574382001 PULLEY, ENGINE 6.5 Price: $99.99
19 596039201 GSPW Hardware This part replaces 539990585. Price: $2.99
