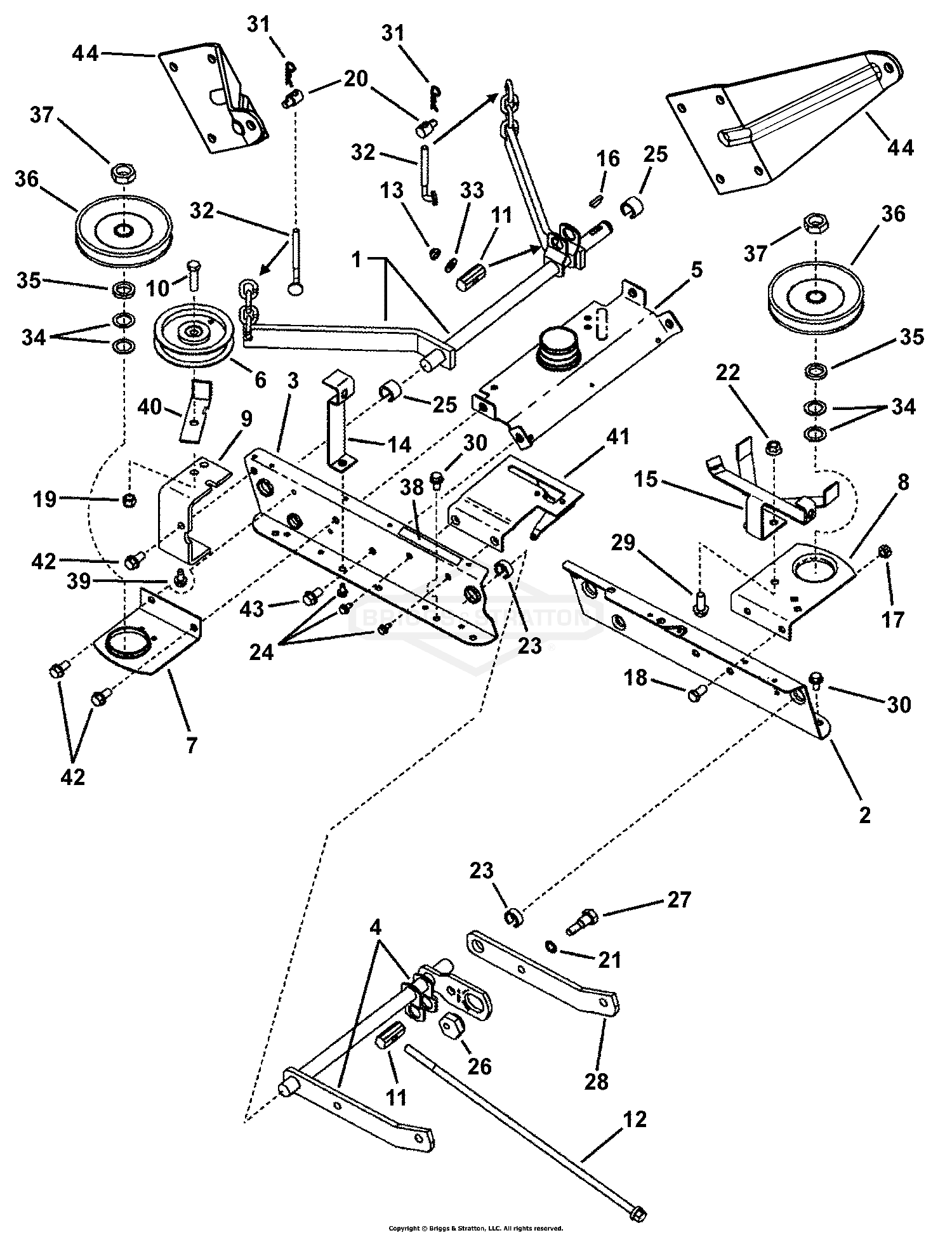

| Ref | Part Number | Description |
|---|
| 1 |
7041248YP |
WELD LIFT REAR This part replaces 7041248. Price: $151.05 |
| 2 |
7073269YP |
RAIL, Deck Lift, Left Hand This part replaces 7073269. Price: $23.99 |
| 4 |
7041578 |
WELDMENT, Front Lift Arm Price: Call Us |
| 5 |
7040502YP |
WELD TOP BRACE This part replaces 7040502. Price: $71.68 |
| 6 |
7018574SM |
IDLER, Flat, 4 1/8 This part replaces 7018574. Price: $35.50 |
| 7 |
7034759YP |
BRACE SPINDLE RH This part replaces 7034759. Price: $20.49 |
| 8 |
7038096YP |
BRACE SPINDLE LH This part replaces 7038096. Price: $15.06 |
| 9 |
7034763 |
BRACE/IDLER Mounting Bracket Price: Call Us |
| 10 |
7091497 |
SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5 Price: Call Us |
| 11 |
7034213YP |
PIVOT, Leveling This part replaces 7034213. Price: $4.19 |
| 12 |
7027944 |
ROD, Leveling Price: Call Us |
| 13 |
7090499YP |
HTLN 3/8C GR.C ZP This part replaces 7090499. Price: $2.88 |
| 14 |
7034857 |
BELT GUIDE, 42" Price: Call Us |
| 15 |
7042613 |
GUIDE, Belt, 42" RER (weldment) Price: Call Us |
| 16 |
7013861YP |
KEY WOODRUFF 3/16X7 This part replaces 7013861. Price: $2.99 |
| 17 |
703347 |
NUT, 3/8-16 This part replaces 7091585. Price: $4.26 |
| 18 |
5025013X6SM |
BOLT, 3/8-16 X 3/4" G This part replaces 7090134. Price: $3.19 |
| 19 |
7091299 |
NUT, 3/8-16 Hex Nyloc Price: Call Us |
| 20 |
7028200SM |
SWIVEL, ADJUSTABLE, 5/16-18+.109 hole This part replaces 7028200. Price: $12.24 |
| 21 |
7090390 |
WASHER, 3/8" Internal Tooth Lock Price: Call Us |
| 23 |
7012067YP |
RING, Front Lift Arm (Red) This part replaces 7012067. Price: $3.52 |
| 24 |
703985 |
SCREW, 5/16-18X.5 This part replaces 7090858. Price: $3.61 |
| 25 |
7012068YP |
RING, Rear Lift Arm (Blue) This part replaces 7012068. Price: $5.02 |
| 26 |
7015447YP |
ECCENTRIC, Leveling This part replaces 7015447. Price: $20.86 |
| 27 |
7015495YP |
SHOULDER BOLT, 3/8-24 w/Nylon Patch, GR 5 This part replaces 7015495. Price: $3.99 |
| 28 |
7032997YP |
ARM, Front Lift This part replaces 7032997. Price: $14.49 |
| 29 |
7027198 |
BOLT, 3/8-16 x 1" Hex Flange Lock, GR 5 Price: Call Us |
| 30 |
703823 |
BOLT, 5/16-18X0.625 This part replaces 7090606. Price: $3.39 |
| 31 |
703300 |
PIN, 3/32 X 1.6 This part replaces 7091503. Price: $3.50 |
| 32 |
703827 |
ROD, ADJUSTER This part replaces 7028728. Price: $9.97 |
| 33 |
7090122 |
WASHER, 3/8" SAE Flat Price: $1.90 |
| 34 |
7010935SM |
FW, .77X1.13X.06 This part replaces 7010935. Price: $3.17 |
| 35 |
7014526 |
SPACER Price: Call Us |
| 36 |
7014532YP |
PULLEY 5 OD This part replaces 7014532. Price: $49.32 |
| 37 |
7074467SM |
NUT, 3/4-16 Hex Jam, GR 8 This part replaces 7074467. Price: $3.61 |
| 38 |
7073066YP |
DECAL BLADE ENGAGEME This part replaces 7073066. Price: $5.09 |
| 39 |
703949 |
SCREW, 5/16-18.625 This part replaces 7090361. Price: $3.40 |
| 40 |
7032368 |
BELT GUIDE Price: Call Us |
| 41 |
7600140YP |
KIT, CLUTCH PLATE This part replaces 7058969. Price: $38.55 |
| 42 |
7090815 |
SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap Price: Call Us |
| 43 |
7091198SM |
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 5/8 This part replaces 7091198. Price: $3.61 |
