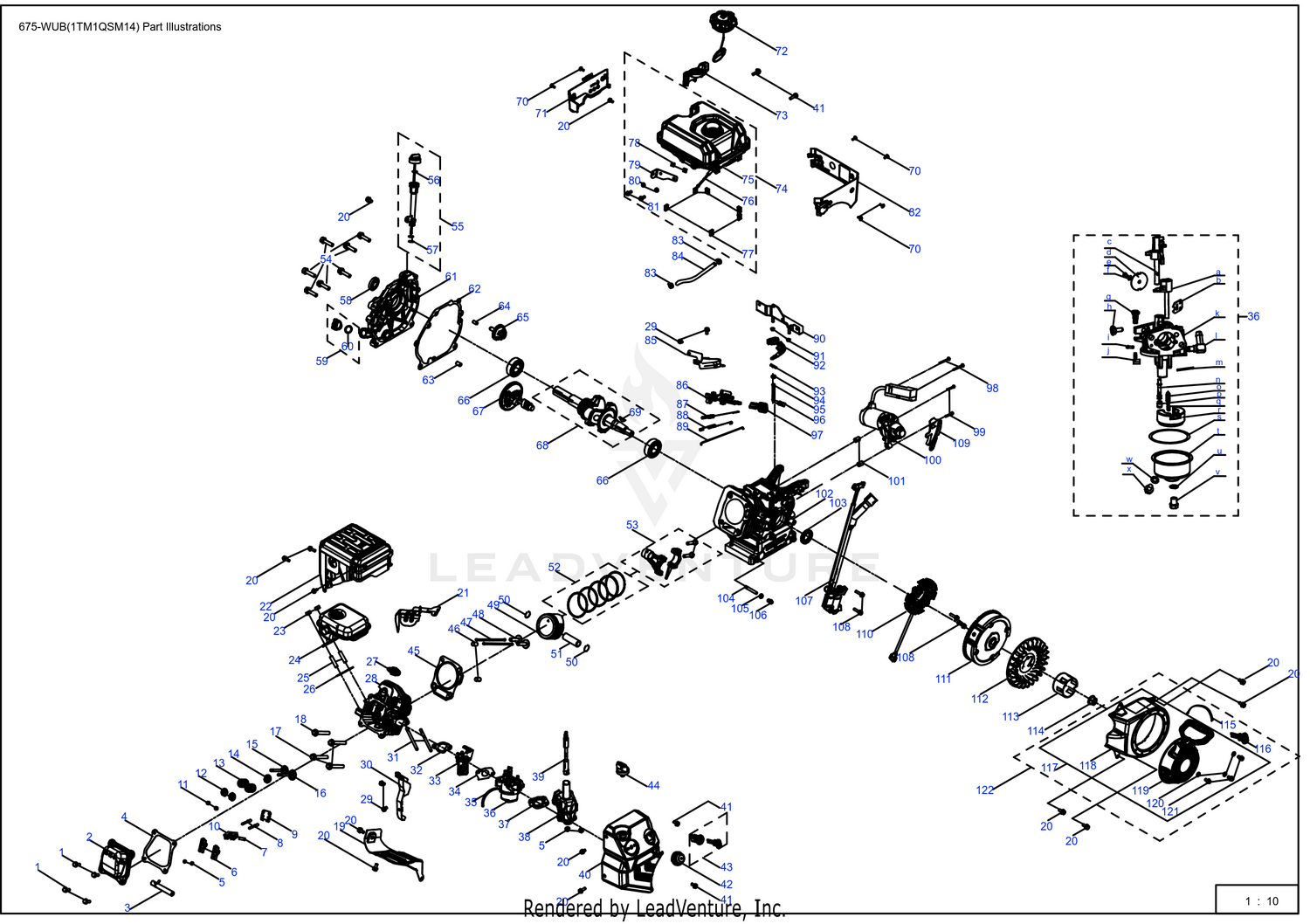

| Ref | Part Number | Description |
|---|
| a |
None |
Choke Shaft |
| b |
None |
Choke Plate |
| c |
None |
Throttle Shaft |
| d |
None |
Throttle Plate |
| e |
None |
Screw, M3×6 |
| f |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| g |
None |
Idle Jet |
| h |
None |
Idle Adjusting Screw |
| i |
None |
Mixture Screw |
| j |
937-05005 |
PRIMER LINE Price: $5.25 |
| k |
751-15884 |
FUEL CAP ASSEMBLY Price: $29.29 |
| l |
None |
Fuel Nipple |
| m |
None |
Float Pin |
| n |
None |
Nozzle Tube |
| o |
None |
Needle Valve |
| p |
None |
Main Jet |
| q |
None |
Needle Valve Spring |
| r |
None |
Float |
| s |
951-11589 |
FUEL BOWL O-RING Price: $6.04 |
| t |
908-05000 |
FLOAT BOWL Not Available Price: |
| u |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| v |
710-04945 |
BOLT M8-1 x 10 Price: $3.66 |
| w |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| 1 |
710-04968 |
BOLT M6 x 16 Price: $5.77 |
| 2 |
908-05028 |
VALVE COVER Price: $29.26 |
| 3 |
951-15045 |
BREATHER HOSE Price: $5.68 |
| 4 |
921-04673 |
VALVE COVER GASKET Price: $7.81 |
| 5 |
712-05015 |
HEX NUT Price: $5.78 |
| 6 |
951-15533 |
ROCKER ARM ASSEMBLY Price: $11.42 |
| 7 |
911-06214 |
ROCKER ARM SHAFT Price: $4.34 |
| 8 |
910-06092 |
PIVOT BOLT Price: $5.38 |
| 9 |
908-05066 |
PUSH ROD GUIDE Price: $7.04 |
| 10 |
951-14373 |
ROCKER ARM PIVOT BLOCK Price: $20.65 |
| 11 |
751P12002A |
EXHAUST VALVE ADJUSTER This part replaces 951-12002. Price: $2.36 |
| 12 |
951-12003 |
EXHAUST VALVE SPRING RETAINER Price: $3.53 |
| 13 |
751P12004A |
VALVE SPRING This part replaces 951-12004. Price: $1.74 |
| 14 |
951-11894 |
INTAKE VALVE SEAL Price: $9.48 |
| 15 |
751P14100A |
EXHAUST VALVE This part replaces 951-14100. Price: $3.43 |
| 16 |
751P14099A |
INTAKE VALVE This part replaces 951-14099. Price: $3.53 |
| 17 |
710-06065 |
SCREW M10-1.25 x 65 x GR10.9 Price: $5.53 |
| 18 |
710-06291 |
BOLT M10-1.25 x 70 Price: $4.31 |
| 19 |
951-11113 |
AIR SHIELD Price: $8.11 |
| 20 |
710-04915 |
BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 21 |
951-15591 |
SHROUD Price: $11.42 |
| 22 |
951-15155 |
MUFFLER GUARD Price: $60.87 |
| 23 |
712-04214 |
NUT Price: $3.86 |
| 24 |
951-15158 |
MUFFLER Price: $66.28 |
| 25 |
710-04911 |
STUD M8 x 36 Price: $3.65 |
| 26 |
751P11289A |
MUFFLER GASKET This part replaces 951-11289. Price: $1.96 |
| 27 |
951-10292A |
SPARK PLUG (F6RTC/RN11YC/BPR6ES) This part replaces 951-10292. Price: $6.35 |
| 28 |
919-05073 |
CYLINDER HEAD (Bare) Price: $87.81 |
| 29 |
710-05103 |
BOLT M6-1 x 12 GR8.8 Price: $3.52 |
| 30 |
951-15185 |
SNOW GUARD Price: $10.96 |
| 31 |
951-15580 |
STUD M6 x 90 Price: $5.25 |
| 32 |
751P11567B |
CARBURETOR INSULATOR GASKET This part replaces 951-11567. Price: $1.73 |
| 33 |
951-15160 |
INSULATOR Price: $6.37 |
| 34 |
751P12005B |
CARBURETOR GASKET This part replaces 951-11569A. Price: $4.89 |
| 35 |
935-05038 |
PRIMER HOSE Price: $11.24 |
| 36 |
951-05444 |
CARBURETOR ASSEMBLY 175SC Price: $87.81 |
| 37 |
751P11897B |
CARBURETOR GASKET This part replaces 951-11897. Price: $1.61 |
| 38 |
951-15186A |
AIR/HEATER INTAKE BOX This part replaces 951-15186. Price: $9.53 |
| 39 |
751P18086 |
CHOKE LEVER This part replaces 951-15581. Price: $5.06 |
| 40 |
951-15164A |
CONTROL PANEL This part replaces 951-15164. Price: $22.36 |
| 41 |
710-05003A |
BOLT M6-1 x 18 This part replaces 710-05003. Price: $3.11 |
| 42 |
951-10639B |
PRIMER This part replaces 951-10639A. Price: $13.84 |
| 43 |
951-10630 |
IGNITION KEY Price: $6.07 |
| 43 |
951-15022A |
ENGINE KEY SWITCH ASSEMBLY This part replaces 951-15022. Price: $9.61 |
| 44 |
951-15450A |
CHOKE KNOB This part replaces 951-15450. Price: $6.35 |
| 45 |
921-04674 |
CYLINDER HEAD GASKET Price: $11.64 |
| 46 |
750-06168 |
PIN 12X16 Price: $4.47 |
| 47 |
951-14370 |
PUSH ROD (SINGLE) Price: $6.50 |
| 48 |
951-14470 |
TAPPET Price: $9.35 |
| 49 |
919-05074 |
PISTON Price: $33.37 |
| 50 |
951-11632 |
PISTON PIN SNAP RING Price: $3.53 |
| 51 |
951-11633 |
PISTON PIN Price: $6.66 |
| 52 |
951-14471A |
PISTON RING SET 75MM This part replaces 951-14471. Price: $20.34 |
| 53 |
751P11573A |
CONNECTING ROD This part replaces 951-11573. Price: $8.87 |
| 54 |
710-04932 |
BOLT M8-1.25 x 32 GR5.8 Price: $3.66 |
| 55 |
951-05020C |
DIPSTICK ASSEMBLY This part replaces 951-05020A. Price: $13.22 |
| 56 |
921-04663A |
O-RING This part replaces 921-04663. Price: $5.05 |
| 57 |
951-12397 |
OIL FILL TUBE O-RING Price: $4.39 |
| 58 |
751P11368A |
OIL SEAL This part replaces 951-11368. Price: $2.70 |
| 59 |
931-09966A |
OIL PLUG This part replaces 931-09966. Price: $4.81 |
| 60 |
951-11577 |
O-RING 15.8 x 2.5 Price: $3.53 |
| 61 |
751P17706 |
CRANKCASE COVER This part replaces 951-12125. Price: $29.04 |
| 62 |
751P11371B |
CRANKCASE GASKET This part replaces 951-11371. Price: $3.07 |
| 63 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 64 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 65 |
751P11576A |
GOVERNOR GEAR This part replaces 951-11576. Price: $3.00 |
| 66 |
951-15055 |
BALL BEARING Price: $15.43 |
| 67 |
951-05058 |
CAMSHAFT Price: $59.12 |
| 68 |
951-05059 |
CRANKSHAFT ASSEMBLY Price: $189.09 |
| 69 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 70 |
951-15189 |
BOLT: M5 x 14 Price: $3.64 |
| 71 |
951-15191 |
FUEL TANK SHROUD (RH) Price: $6.37 |
| 72 |
951-15172A |
FUEL CAP This part replaces 951-15172. Price: $15.87 |
| 73 |
951-15170 |
DECORATIVE COVER Price: $5.93 |
| 74 |
951-15173A |
FUEL TANK This part replaces 951-15173. Price: $119.15 |
| 75 |
951-15173A |
FUEL TANK This part replaces 751-15173. Price: $119.15 |
| 76 |
951-12296A |
FUEL FILTER This part replaces 951-12296. Price: $8.68 |
| 77 |
951-15578 |
FUEL TANK MOUNT THREADED TAB Price: $3.46 |
| 78 |
712-05186 |
NUT M6 Price: $3.96 |
| 79 |
951-15577 |
FUEL TANK MOUNT TAB Price: $4.09 |
| 80 |
736-05197 |
WASHER 6.5 x 1.5 x 12 Price: $3.96 |
| 81 |
710-06567 |
BOLT M6 x 20 Price: $3.56 |
| 82 |
951-15231 |
DECORATIVE SHEET (LH) Price: $6.37 |
| 83 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 84 |
951-15169A |
FUEL HOSE This part replaces 951-15169. Price: $19.46 |
| 85 |
951-15168 |
GOVERNOR SHIELD Price: $5.93 |
| 86 |
951-15153 |
GOVERNOR GEAR BRACKET ASSEMBLY Price: $16.43 |
| 87 |
751P14882A |
GOVERNOR SPRING This part replaces 951-14882. Price: $5.50 |
| 88 |
751P10664A |
THROTTLE SPRING This part replaces 951-10664. Price: $2.01 |
| 89 |
751P10665A |
THROTTLE LINKAGE This part replaces 951-10665. Price: $1.53 |
| 90 |
951-15174 |
FUEL TANK BRACKET Price: $10.04 |
| 91 |
712-05015 |
HEX NUT Price: $5.78 |
| 92 |
951-14089 |
GOVERNOR LEVER Price: $6.67 |
| 93 |
714-04078 |
COTTER PIN Price: $3.66 |
| 94 |
951-11902A |
OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 95 |
736-04461 |
O-RING Price: $3.50 |
| 96 |
951-14053 |
GOVERNOR SHAFT Price: $13.94 |
| 97 |
751P10757A |
THROTTLE LEVER KNOB This part replaces 951-10757. Price: $6.01 |
| 98 |
751-15472 |
SCREW Price: $4.29 |
| 99 |
710-05182 |
BOLT M6-1 x 32 GR8.8 Price: $3.61 |
| 100 |
951-15229 |
ELECTRIC STARTER Price: $322.76 |
| 101 |
715-04088A |
DOWEL PIN This part replaces 715-04088. Price: $2.97 |
| 102 |
919-05075 |
CRANKCASE Price: $187.05 |
| 103 |
751P11370A |
OIL SEAL This part replaces 951-11370. Price: $2.23 |
| 104 |
951-11350A |
OIL DRAIN PIPE This part replaces 951-11350. Price: $7.05 |
| 105 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 106 |
710-04906 |
OIL DRAIN PLUG Price: $5.86 |
| 107 |
951-15151 |
IGNITION MODULE Price: $86.69 |
| 108 |
710-04919 |
BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 109 |
951-11109 |
BLOWER HOUSING SHIELD Price: $6.40 |
| 110 |
951-15539A |
CHARGING COIL Price: $68.92 |
| 111 |
951-15540A |
FLYWHEEL Price: $161.84 |
| 112 |
951-15025 |
COOLING FAN Price: $21.69 |
| 113 |
951-14887 |
STARTER CUP Price: $12.71 |
| 114 |
712-04287A |
FLYWHEEL NUT M14-1.5 This part replaces 712-04287. Price: $5.33 |
| 115 |
725-06031 |
CABLE TIE - 3 x 150 Price: $2.04 |
| 116 |
951-10630 |
IGNITION KEY Price: $6.07 |
| 117 |
951-05442 |
RECOIL STARTER Price: $70.24 |
| 118 |
951-15228 |
BLOWER HOUSING Price: $39.39 |
| 119 |
951-15538A |
RECOIL STARTER This part replaces 951-15538. Price: $62.29 |
| 120 |
736-04455B |
FLAT WASHER This part replaces 736-04455. Price: $5.94 |
| 121 |
710-06354 |
BOLT M6 x 10 Price: $5.73 |
