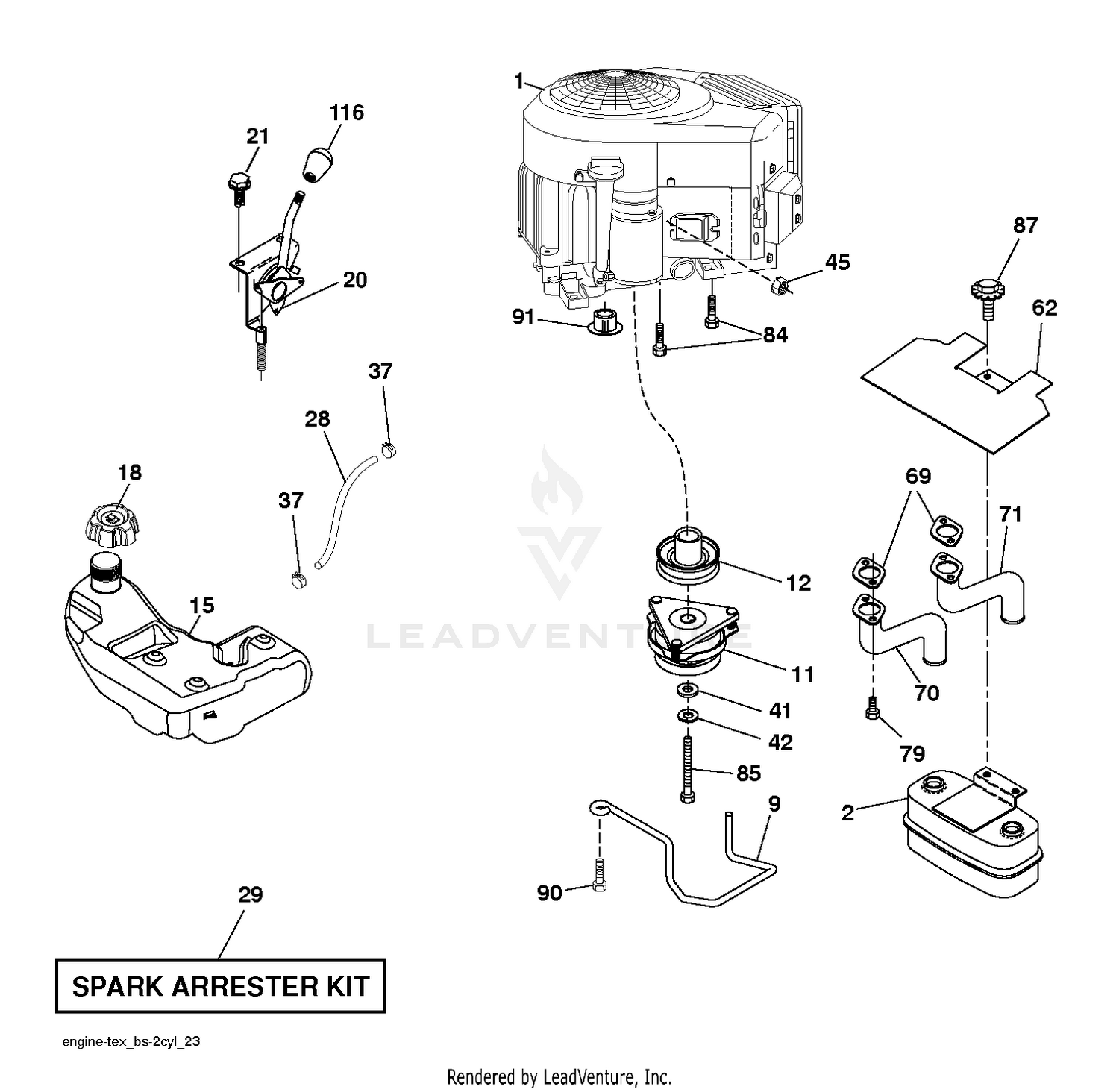

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
108-2866 |
NOZZLE HOLDER KIT Price: $438.88 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 15 |
599306004 |
FUEL TANK, 3GAL, 2.25"NECK, 20 This part replaces 532438080. Price: $199.99 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 20 |
586219601 |
CONTROL.THROTTLE/CHOKE.PRO.45 This part replaces 532424340. Price: $54.99 |
| 20 |
99-8301 |
NUT Price: $8.64 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
99-8302 |
WASHER-ADJUSTING Price: $7.16 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
99-8303 |
SPRING-NOZZLE Price: $11.49 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 50 |
99-8304 |
SPACER-DISTANCE Price: $29.26 |
| 60 |
99-8305 |
ROD-PUSH Price: $60.67 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
99-8306 |
NUT-NOZZLE Price: $34.65 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 80 |
99-8307 |
WASHER-PLAIN Price: $8.84 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
107-7826 |
PIECE-NOZZLE Price: $95.55 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 100 |
99-8309 |
ADJUSTING WASHER ASM Price: $56.19 |
| 110 |
99-8310 |
WASHER-ADJUST (0.10MM) Price: $2.74 |
| 110 |
99-8311 |
WASHER-ADJUST (0.20MM) Price: $3.56 |
| 110 |
99-8312 |
WASHER-ADJUST (0.30MM) Price: $2.74 |
| 110 |
99-8313 |
WASHER-ADJUST (0.40MM) Price: $2.74 |
| 110 |
99-8314 |
WASHER-ADJUST (0.50MM) Price: $1.91 |
| 110 |
99-8315 |
WASHER-ADJUST (0.52MM) Price: $1.91 |
| 110 |
99-8316 |
WASHER-ADJUST (0.54MM) Price: $1.91 |
| 110 |
99-8317 |
WASHER-ADJUST (0.56MM) Price: $1.91 |
| 110 |
99-8318 |
WASHER-ADJUST (0.58MM) Price: $1.91 |
| 110 |
99-8319 |
WASHER-ADJUST (0.80MM) Price: $1.91 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 120 |
98-7676 |
GASKET Price: $2.73 |
