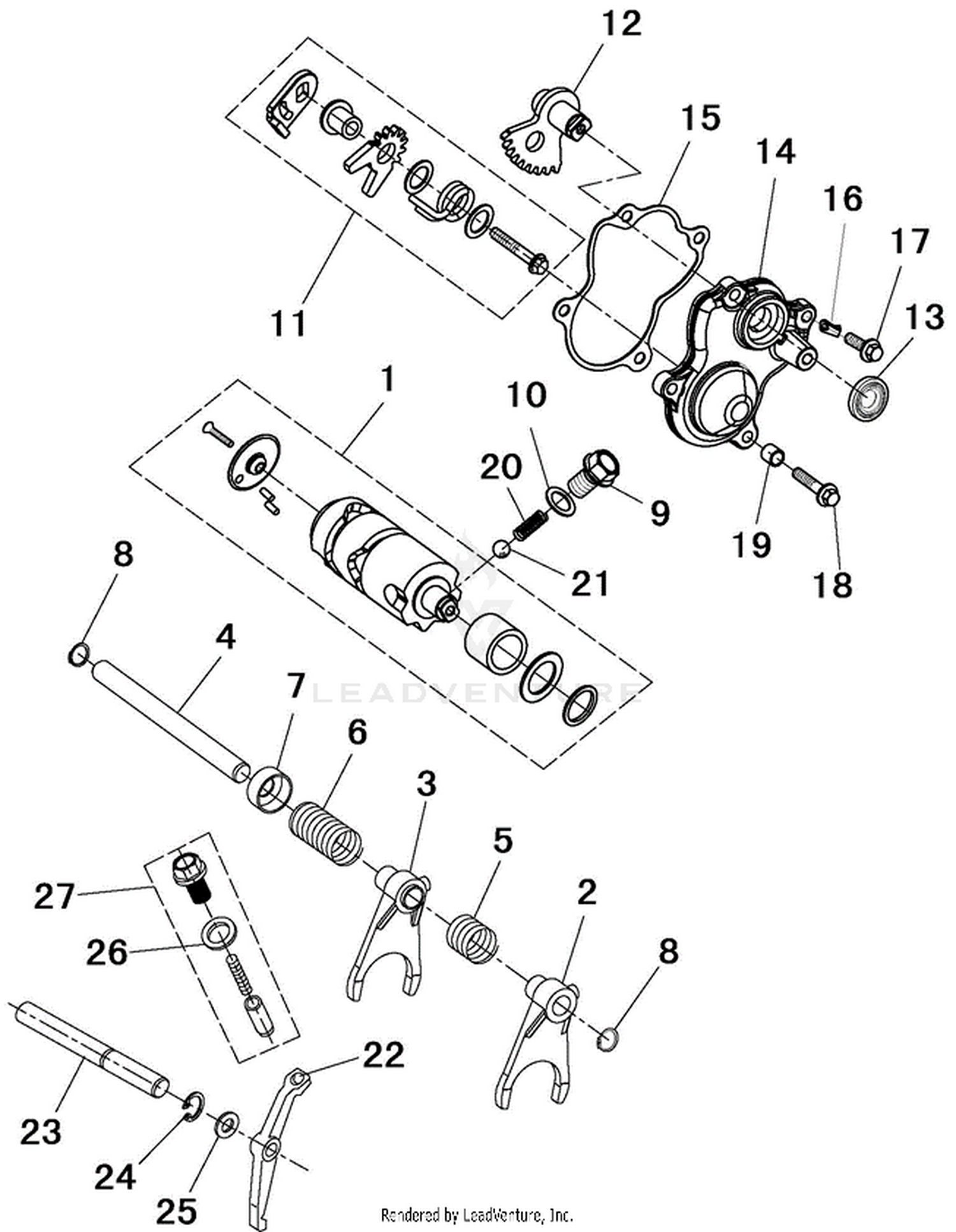

Engine - Shift Cam Fork
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503-01314 | SHIFT DRUM Price: $87.94 |
| 2 | 503-01131 | SHIFTING FORK I Not Available Price: |
| 3 | 503-02926 | SHIFT FORK Price: $18.55 |
| 4 | 503-02925 | SHIFT SHAFT Price: $8.36 |
| 5 | 503-02923 | REVERSE GEAR SPRING Price: $1.24 |
| 6 | 503-02924 | HIGH/LOW GEAR SPRING Price: $1.61 |
| 7 | 503-01136 | SHIFT RAIL SPRING SEAT Price: $5.22 |
| 8 | 503-01137 | CIRCLIP Price: $5.36 |
| 9 | 503-01138 | HOLLOW BOLTS M14X1.5X21 Price: $10.53 |
| 10 | 503-01139 | COPPER WASHER 14X21X1 Not Available Price: |
| 11 | 503P01140 | SHIFT DIAL PLATE Price: $46.49 |
| 12 | 503-01141 | SHIFT SHAFT ASSEMBLY Price: $75.62 |
| 13 | 503-01142 | OIL SEAL 15X25X5 Price: $24.57 |
| 14 | 503-01143 | SHIFT SHAFT COVER Price: $31.35 |
| 15 | 503-01144 | SHIFT SHAFT COVER GASKET Price: $10.76 |
| 16 | 503-01315 | CLAMP Price: $2.72 |
| 17 | 503-01145 | HEX FLANGE BOLTS M6X20 Not Available Price: |
| 18 | 503-01021 | HEX FLANGE BOLTS M6X30 Price: $5.26 |
| 19 | 503-01146 | DOWLE PIN 8X12 Price: $5.22 |
| 20 | 503-01147 | SPRING 24X1 Price: $4.89 |
| 21 | 503-01148 | STEEL BALL 9.5 Price: $4.89 |
| 22 | 503-01316 | PARKING ARM Price: $53.42 |
| 23 | 503-01317 | PARKING ARM SHAFT Price: $6.13 |
| 24 | 503-01137 | CIRCLIP Price: $5.36 |
| 25 | 503-01318 | WASHER 12.3 x 20 x 1 Price: $3.94 |
| 26 | 503-03524 | COPPER WASHER Price: $2.09 |
